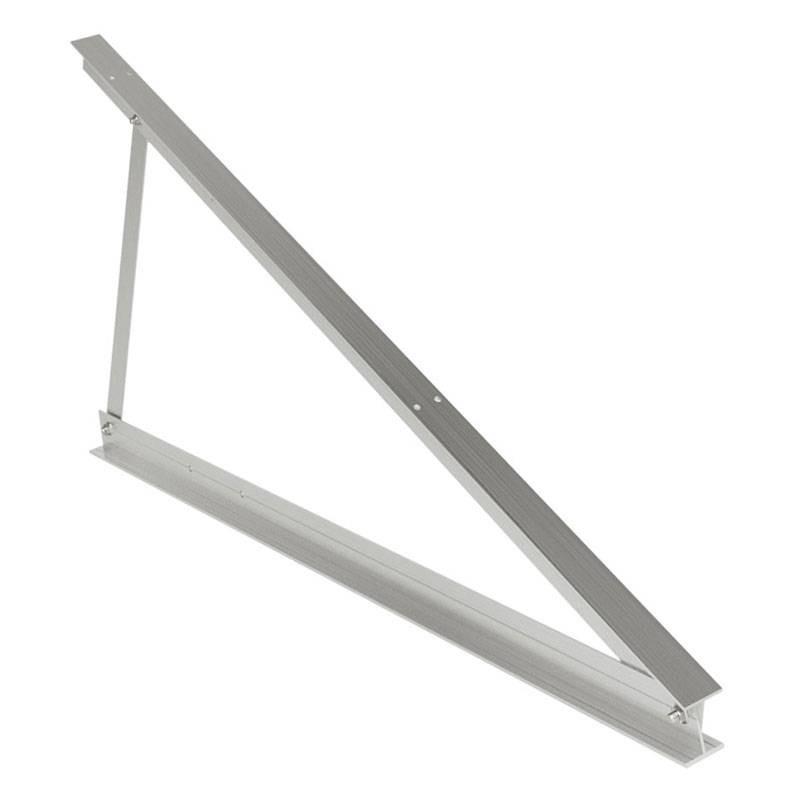

Contact Triangle Holder 25/30/35 degrees for horizontal module for photovoltaic KTO0122
IIC KTO0122
Contact Triangle Holder with 25/30/35 degree support for single module horizontally with the following features:
- Surface treatment: T5
- Tensile breaking load Rm: 230 Mpa
- Elasticity limit load Rp 0.2: 200 Mpa
- Elongation over 50 mm: 12%
- Hardness HB: 72
- Coefficient of linear thermal expansion between 20°C and 100°C (1/°K): 23x10-6
- Readiness for oxidation surface treatment: excellent
- Area of application: flat roofs
- Module orientation: Horizontal
- Installable profile: PRT2334, PRT2640, PRT2947
- Roof connection: Fixing or Ballasting
Contact Triangle Holder 25/30/35 degrees for horizontal module for photovoltaic KTO0122
€48.15
€48.15
Tax included
Tax included
Items Available: 20
: 16
Frequently bought together

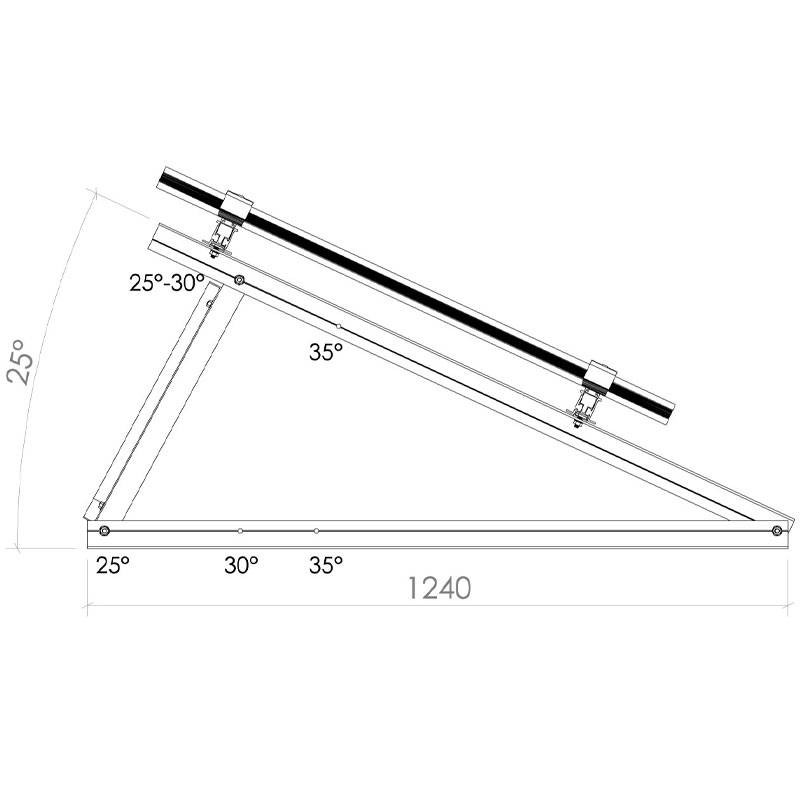

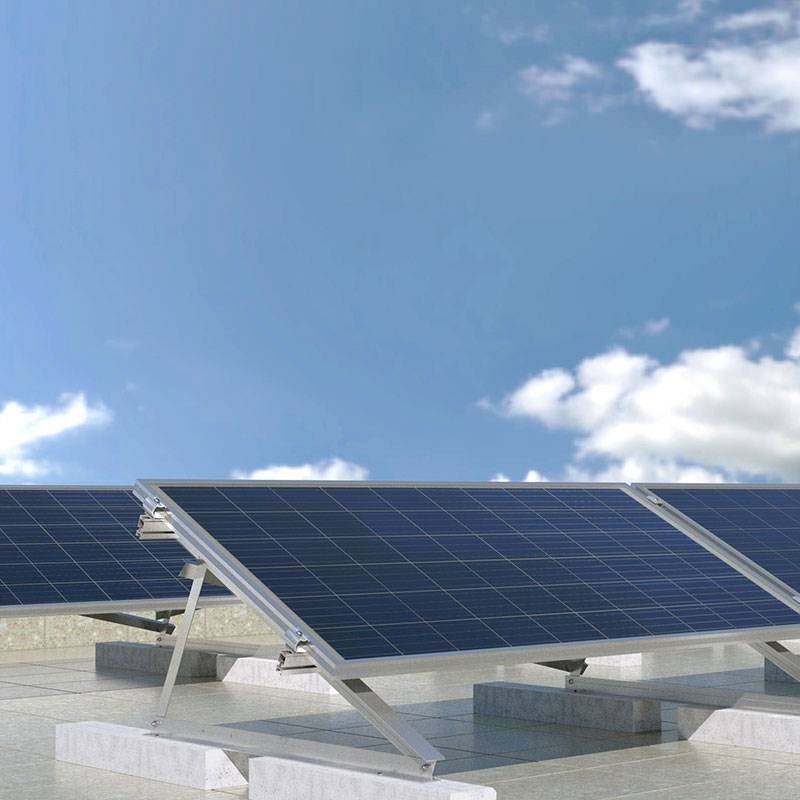

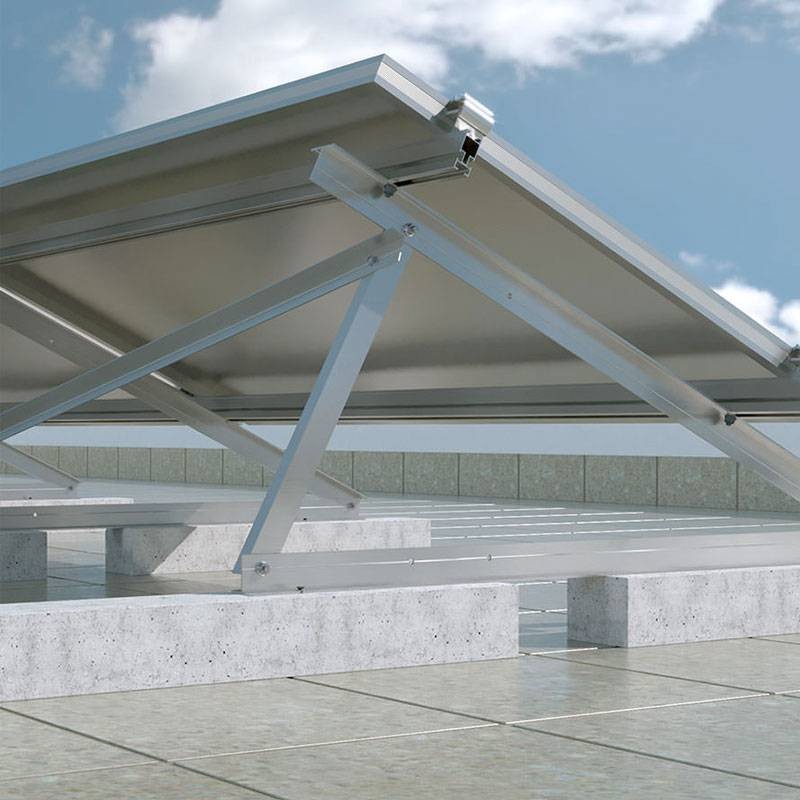

The system with aluminum support KTO0122, allows the installation of single rows of PV modules arranged horizontally with adjustable tilt 25°, 30°, 35°. Snap-on mounting of the universal end clamps KMTU2950 and center clamps KMCU2950 is done at the short side of the modules.
There are no reviews
Data sheet
- Type:
- Fixing Accessories
