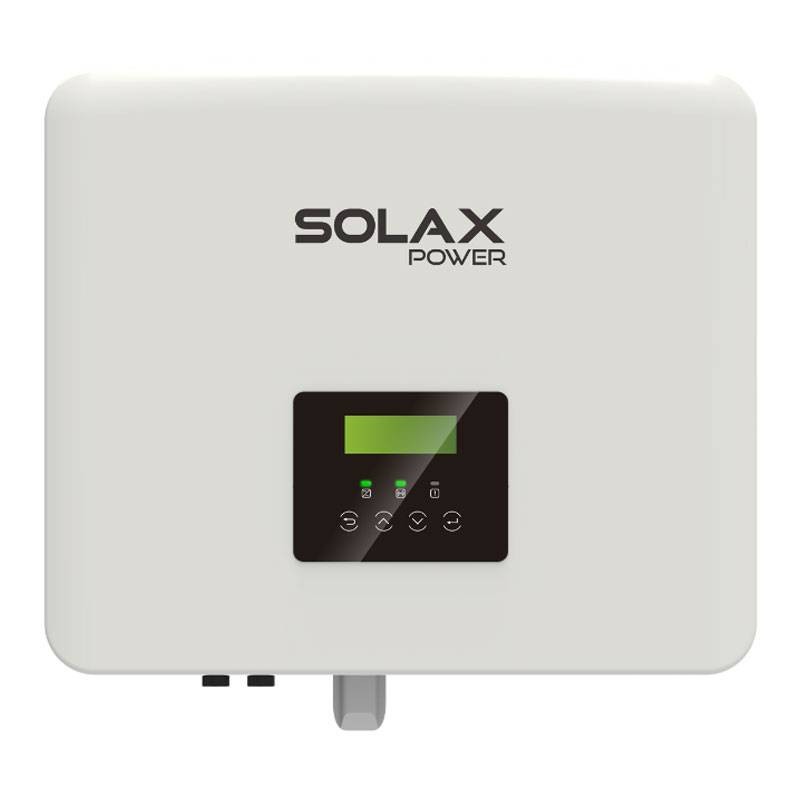

Sunerg Solar 6KW Single Phase 2MPPT X1-HYBRID-6.0M Hybrid Photovoltaic Inverter

Sunerg Solar
SUS X1-HYBRID-6.0M

Sunerg Solar X1-HYBRID G4 series hybrid photovoltaic inverter:

  • Rated output power 6KW
  • Nominal AC voltage 230/240V
  • Connection: single phase
  • Number of MPP inputs 2(1/1)
  • Communication systems External control RS485 / DRM / USB / NTC
Do you have questions about this product or did you not find what you were looking for? Ask us!

Sunerg Solar 6KW Single Phase 2MPPT X1-HYBRID-6.0M Hybrid Photovoltaic Inverter

€2,275.38
€2,275.38

Sunerg Solar 6KW Single Phase 2MPPT X1-HYBRID-6.0M Hybrid Photovoltaic Inverter

€2,275.38
Tax included
Items Available: 23
Further availability of the manufacturer

Sunerg Solar 6KW Single Phase 2MPPT X1-HYBRID-6.0M Hybrid Photovoltaic Inverter

€2,275.38

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

High efficiency:

  • Oversized PV input of 150%, overload of 110%.
  • Max. overload output 120%
  • Higher efficiency in charging and discharging, up to 97.0%
  • Built-in shadow tracking function

Economy:

  • Maximum DC input current 16A, support for high-power solar panels
  • Excess photovoltaic energy stored in batteries
  • Low output voltage at startup, longer inverter lifetime
  • Lower energy loss

Smart:

  • <10ms switching time
  • Quick configuration with U-disk
  • CT compatible, loads respond within 0.3 seconds
  • Intelligent load management( e.g., pump-heat)
  • On&Off-grid parallel function, up to 15kW
  • 5 working modes, 2 charging periods available
  • VPP ready, auxiliary service in the electric market

Safety:

  • IP65 degree of protection
  • Integrated SPD


Features:


DC INPUT:

  • Maximum DC input power 9000 Wp
  • Input voltage max 600V
  • Starting voltage 90V
  • Nominal input voltage 360V
  • MPP voltage range 70-550 V
  • Number of MPP inputs 2(1/1)
  • Strings per MPP input 16/16
  • Input current for MPP max 20/20A

AC OUTPUT:

  • Rated output power 6000W
  • Apparent AC output power 6600 VA
  • Max. output current 28.6A
  • Apparent input AC power 9200 VA
  • Max. input current 40A
  • Nominal AC voltage 230/240V
  • Rated mains frequency 50/60 Hz
  • Power phase shift factor 0.8 in advance~0.8 in retardation
  • THDi (rated power) <2%.

BATTERY DATA:

  • Battery type Lithium-ion battery/Lead-acid battery (under development)
  • Voltage range 80-480V
  • Max charge/discharge current 30A

EPS OUTPUT (OFF-GRID OR BACK-UP) (WITH BATTERY):

  • Rated output power 6000W
  • Apparent peak power 7200W, 10 min
  • Max continuous current 26.1A
  • Rated voltage 230V
  • Frequency 50/60 Hz
  • Switching time <10 min
  • Parallel operations

SYSTEM DATA:

  • 98% efficiency grade
  • European efficiency grade 97.7%
  • Charge/discharge efficiency 98.5/97.5%
  • Self-consumption (night) <5 W
  • Protection class IP66
  • Operating temperature range -35 ~ +60 (reduced to 45°C)
  • Max operating altitude <3000 meters
  • Humidity 0-100%
  • Noise, typical value <30 dB
  • Ambient temperature -40 ~ +65 degrees
  • Dimensions (W/H/D) 482*417*181 mm
  • Net weight 24 kg
  • Cooling system Natural cooling

SAFETY STANDARDS:

  • IEC/EN 62109-1/2 safety standards.
  • EMC EN61000-6-1/2/3/4;EN61000-3-2/3/11/12
  • Certifications VDE4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/RD1699/NRS 097-2-1/PEA/MEA/VFR2019.

There are no reviews

Data sheet

Type:
Inverter
Power:
6 to 10KW
Degree of protection:
IP65
Model:
Hybrids
MPPT:
2
Connection:
Single-phase
