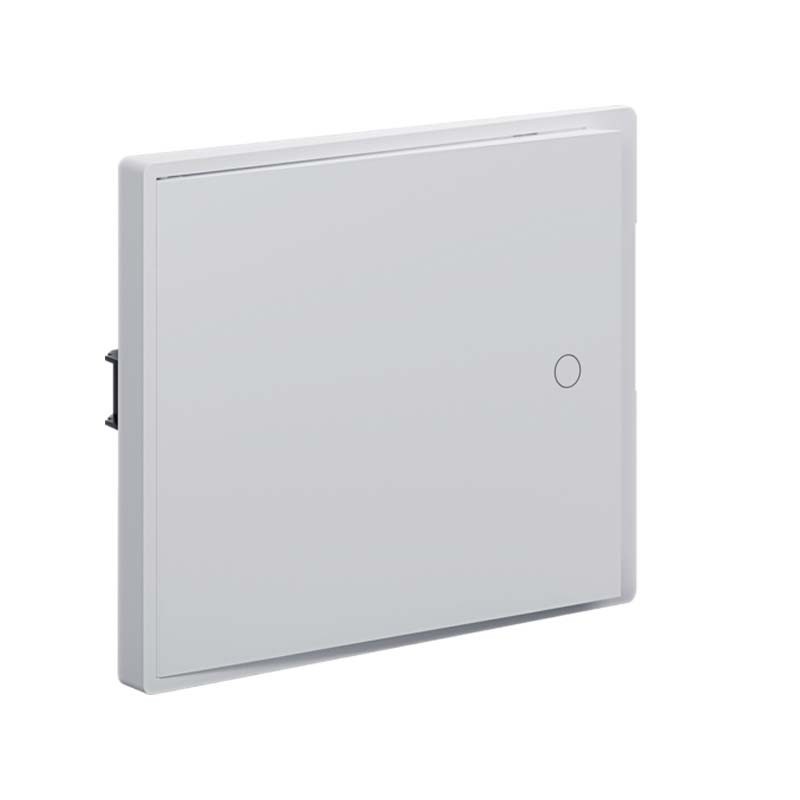

Bocchiotti built-in switchboard 8 modules white door IP40 B04943
IBO B04943
8015892138788
Bocchiotti Pablo line front recessed switchboard, with the following characteristics:
- 8 modules
- Protection degree IP40
- Nominal current 63A
Article to be completed with flush mounting box B04913
Bocchiotti built-in switchboard 8 modules white door IP40 B04943
€16.02
€16.02
Tax included
Tax included
Items Available: 69
: 5
Frequently bought together
Features:
- Series Bocchiotti line Pablo
- 8 modules
- Protection degree IP40
- Nominal current 63A
- Fixing: recessed or wall mounting
- Type of door closure: cylinder lock
- Interlockable
- Type of blind door cover
- Switchboard without lock
- Single door leave
- Switchboard colour white RAL 9016
- Material polycarbonate
- Number of duct entries 3
- Impact resistance grade 08
- Insulation protection class II
- Halogen-free
- Operating temperature -15 / +60 °C
- Not ultraviolet resistant
- Recessed depth 16 mm
- Recessed depth 25 mm
- Inside depth 16 mm
- Height 235 mm
- Width 280 mm
- Article to be completed with flush mount box B04913
There are no reviews
Data sheet
- Type: Front panels
- Modules: 8
- Degree of protection: IP40
- Model: With door
Recessed
