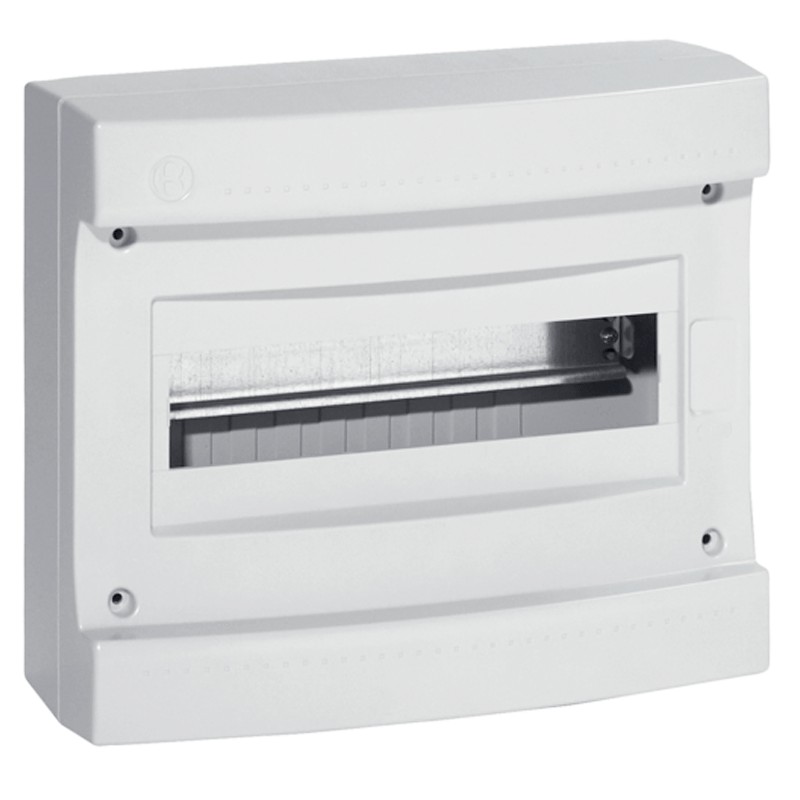

Bocchiotti switchboard without door 12 modules IP40 B04010
IBO B04010
8015892040104
Switchboard without hatch Bocchiotti, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection, even of different brand).
- 12 modules
- Degree of protection IP40 (protection against solid bodies 1mm)
Bocchiotti switchboard without door 12 modules IP40 B04010
€18.26
€18.26
Tax included
Tax included
Items Available: 45
: 5
Features:
- Bocchiotti Series
- Rated current 125 A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 12 modules
- Degree of protection IP40 (protection against solid bodies 1mm)
- Protruding fixing method
- Colour light grey RAL 7035
- Plastic material
- Depth 113 mm
- Inside depth 113 mm
- Height 250 mm
- Width 300 mm
- Insulation protection class II
- Degree of resistance to glow wire according to EN 60695-2-11: 960°C
- Operating temperature -25...60 °C
There are no reviews
Data sheet
- Type:
-
Front panels
Wall - Modules:
- 12
- Degree of protection:
- IP40
- Model:
- Without door
