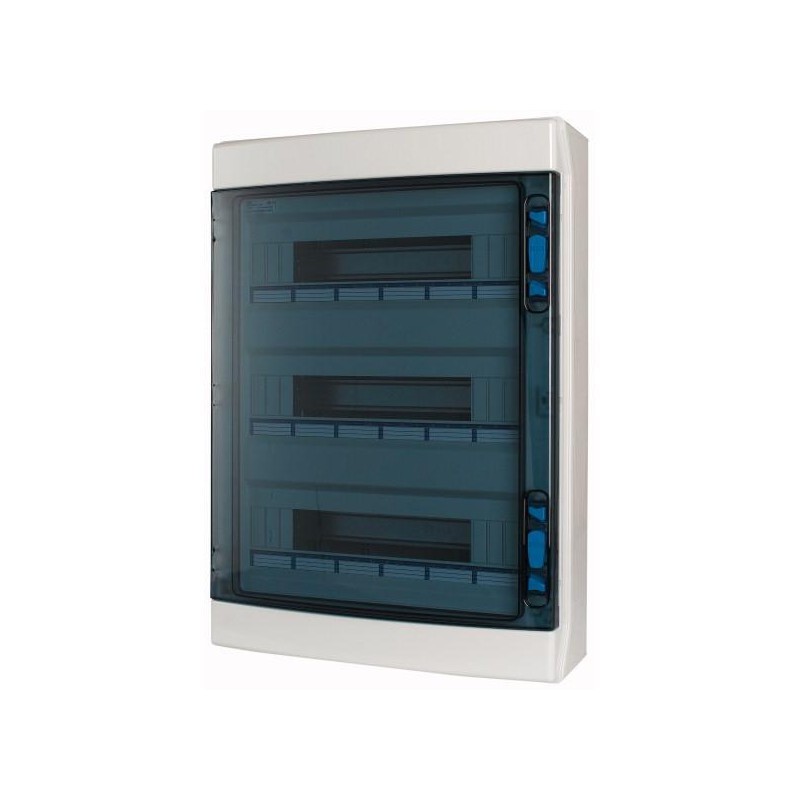

Switchboard Eaton IKA 54 modules IP65 transparent door 174211
EAO 174211
4015081706730
Eaton IKA wall-mounted switchboard, with the following features:
- 54 modules (on three rows)
- Power dissipation 56,6W
- IP65 protection degree
- Impact resistance degree IK08
Switchboard Eaton IKA 54 modules IP65 transparent door 174211
€124.51
€124.51
Tax included
Tax included
Items Available: 2
Features:
- Eaton Series
- 54 modules (three rows)
- Nominal operating voltage Ue VAC 415
- Rated frequency 50 Hz
- Insulation voltage AC VAC 1000 - DC VDC 1500
- Power dissipation 56,6W
- Degree of protection IP65
- Impact resistance degree IK08
- Protection class II, total insulation
- Material ABS (plastic) (insulating material)
- Switchboard colour grey RAL 7035
- Polycarbonate door, transparent colour
- ST version with single removable multi-row DIN-rail frame
- Large wiring space, up to 46 mm below DIN rail
- Module compensation tolerance in cover pre-straightening
- Lead-through screws and cover
- Can be mounted directly on the wall, without drilling holes in the switchboard
- Depth adjustable DIN rail, 150 mm spacing between DIN rails
- Quick and easy reversal of the door stop side
- Pre-slots for cable entry also on side walls
- Intuitive locking and unlocking of doors, cylinder lock can be fitted (as an accessory)
- 650°C glow wire resistance
- Halogen-free
- Without lock
- Installation location Interior
- Exposed installation type
- Metric cable entries top and bottom, side wall, rear wall
- Compliant with IEC/EN 62208; IEC/EN 60670-24
- Ambient temperature - 25°C / +40 °C
- Height 586 mm
- Width 418 mm
- Depth 145 mm
- Recessed depth 70 mm
- Internal depth 60 mm
There are no reviews
Data sheet
- Type: Front panels
- Modules: 54
- Degree of protection: IP65
- Model: With door
Wall
