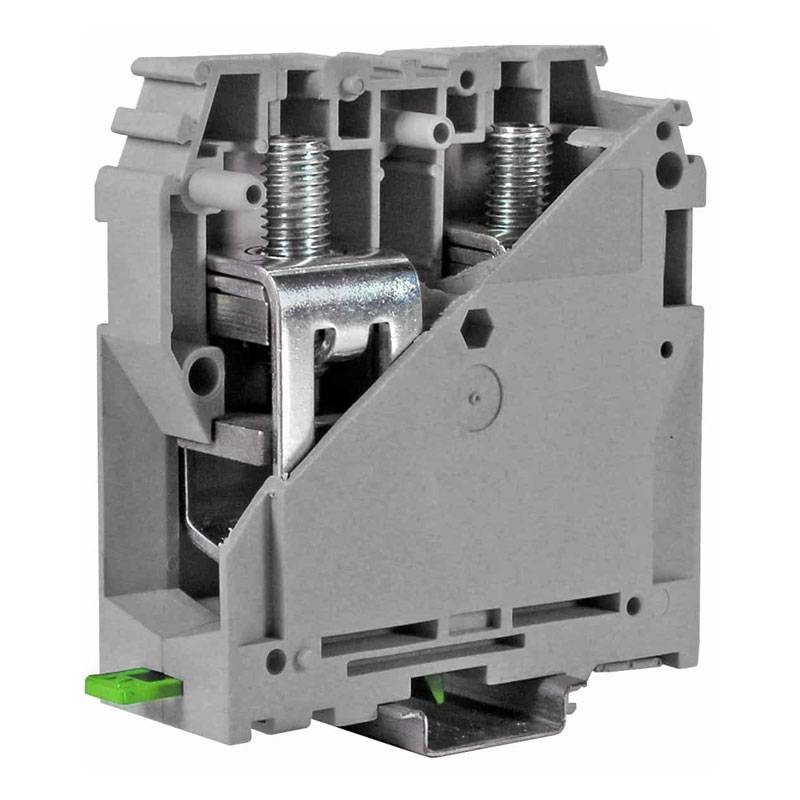

Cabur 150mmq screw-through terminal GA200
CBR GA200
8017963018654
Cabur GPA series screw-through terminal block:
- 150mmq nominal cross-section
- Feed-through type
- Connection Flexible conductor 50-150mm² - rigid conductor 50-185mm²
- Max voltage AC/DC 1000 V
- Max current with nominal cross section 309 A
- Gauge B14
- Max voltage AC/DC 600V
- Max current with rated section 309 A
- Cross section (min-max) 1/0-350 MCM (AWG)
- Torque (UL) 142 lb.in
Cabur 150mmq screw-through terminal GA200
€32.84
€32.84
Tax included
Tax included
Items Available: 71
: 12
Technical characteristics according to Atex directives and IEC EX standard:
- Rated impulse voltage / pollution degree 12 kV / 3
- Stripping length 35 mm
- Tightening torque (nom. / max.) 10 / 15 Nm (4 mm Allen screw)
- Width (pitch) 31 mm
- Length 108 mm
- Height mounted on TH35-7.5/TH35-15/G32 99 / 103 / 106 mm
- Insulating material temperature index (EN 60216-1) 130 °C
- Plastic material Polyamide UL94V-0
There are no reviews
Data sheet
- Type:
- Clamps
- Cross-Section:
- 150mmq
