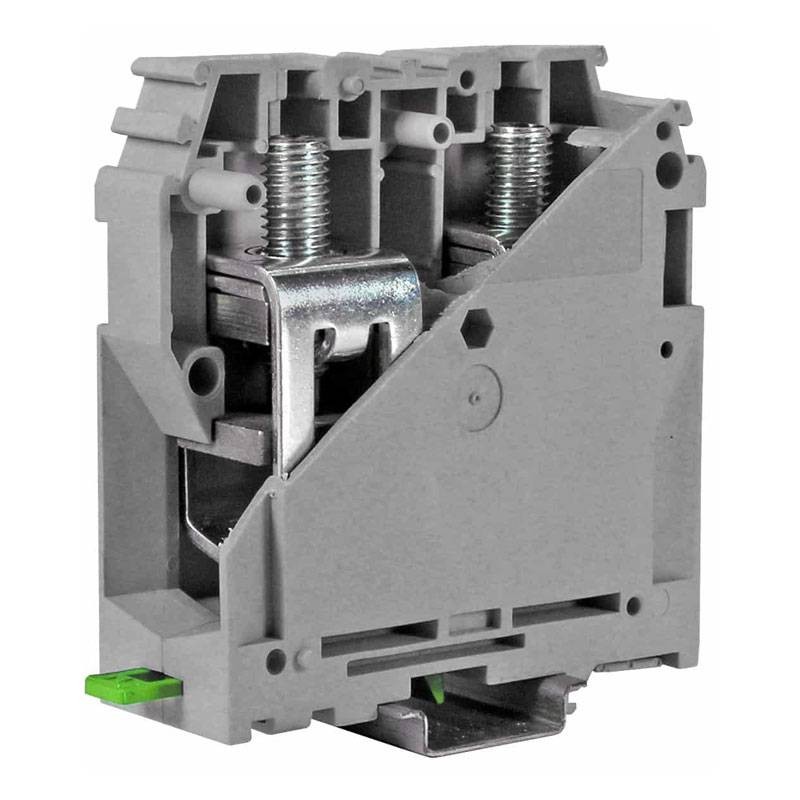

Cabur 95mmq screw-through terminal GA100
CBR GA100
Cabur screw-through terminal GPA series:
- 95mm² nominal cross-section
- Feed-through type
- Connection: flexible conductor 10-95 mm² - rigid conductor 10-120 mm²
- Max voltage AC/DC 1000 V
- Max current with nominal cross section 232 A
- Gauge B12
- Max voltage AC/DC 600 V
- Max current with nominal cross section 232 A
- Cross section (min-max) 2-250 MCM (AWG)
- Torque (UL) 90 lb.in
Cabur 95mmq screw-through terminal GA100
€27.56
€27.56
Tax included
Tax included
Items Available: 73
: 40
Technical characteristics according to Atex directives and IEC EX standard:
- Rated impulse voltage / pollution degree 12 kV / 3
- Stripping length 30 mm
- Tightening torque (nom. / max.) 6 / 9 Nm (4 mm Allen screw)
- Width (pitch) 26 mm
- Length 98 mm
- Height mounted on TH35-7.5/TH35-15/G32 87 / 95 / 91 mm
- Insulating material temperature index (EN 60216-1) 130 °C
- Plastic material Polyamide UL94V-0
There are no reviews
Data sheet
- Type:
- Clamps
- Cross-Section:
- 95mmq
