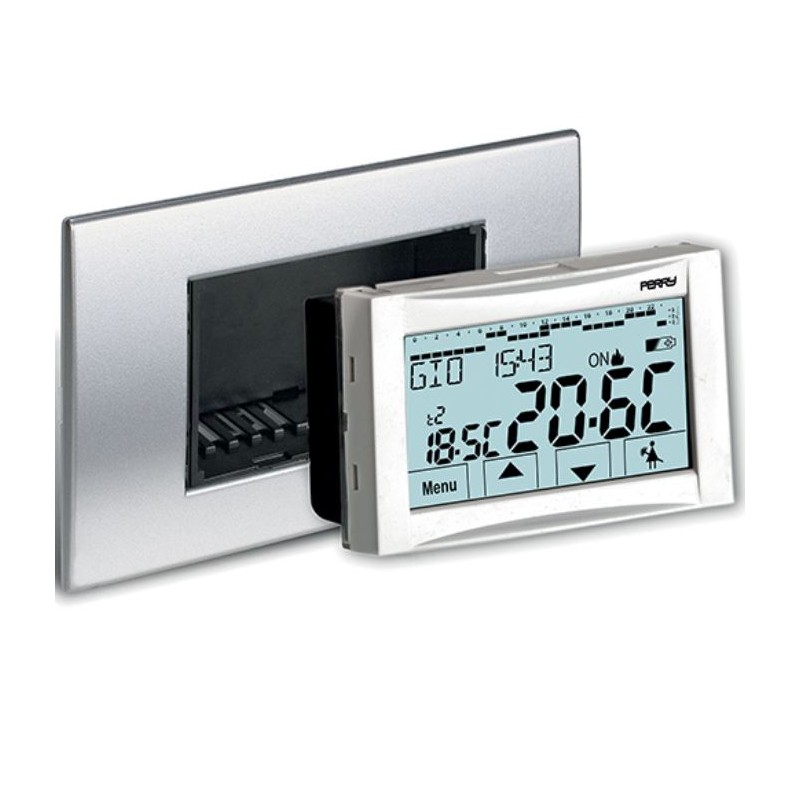

Chronothermostat Perry built-in Touch Screen Universal Battery CDS26
PER 1CRCDS26
8019108090938
Chronothermostat touch screen Perry regulates and programs the temperature of boilers and air conditioners, battery powered, compatible with Bticino, Vimar, Gewiss. Backlit LCD display TOUCH SCREEN
Chronothermostat Perry built-in Touch Screen Universal Battery CDS26
€90.64
€90.64
Tax included
Tax included
Items Available: 32
: 2
Frequently bought together
Features:
- Multilingual menu
- Power supply 3V - 2x1.5V AA alkaline

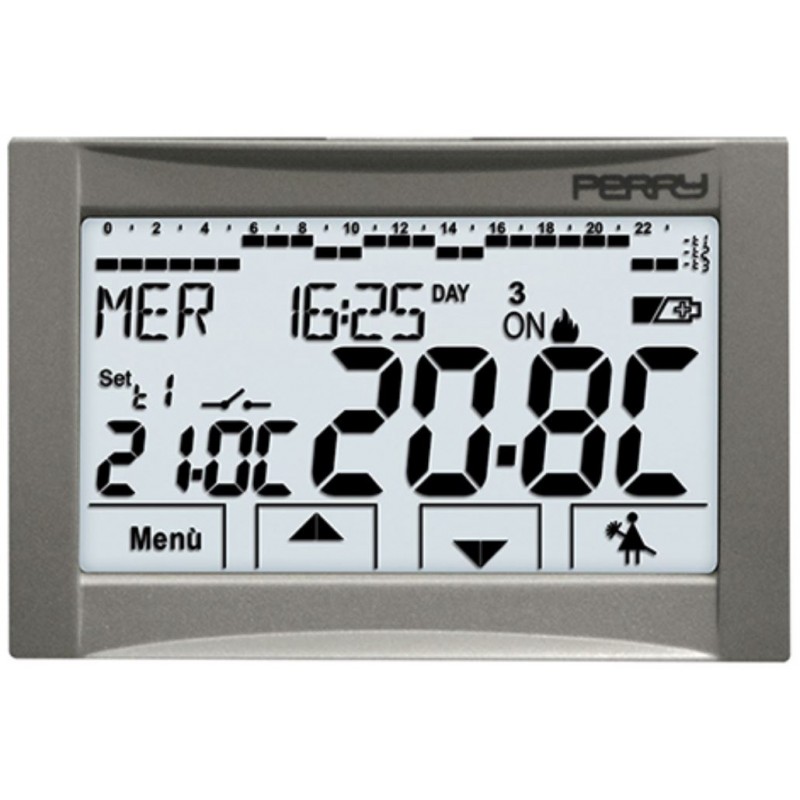

- Backlit LCD TOUCH SCREEN display
- Output 1 potential-free deviation contact: 5(3)A/250Vac
- ON/OFF operation with adjustable differential from 0.2 - 1.2°C or modulating with control period from 7-20 min
- 4 adjustable preset programs
- Temperature levels 3 + antifreeze
- Autonomous manual temperature
- Adjustable temperature by 0.1°C sets
- Consumption counter
- Minimum programming 30 minutes
- Permanent / temporary manual operation
- Automatic daylight saving time change
- System fault signal
- Suspension key for cleaning
- Telephone or remote control input
- Remote probe input
- Intelligent operation
- EAST/INV command
- Holiday program
- Pump activation program
- Set temperature lock
- Keypad lock
- User password
- Installer password
- Timed backlighting
- Relay status indication
- Correction t detection in operation
- Product positioning
- Wall and/or semi-recessed mounting
- Adjustment range 5 - 37.7°C

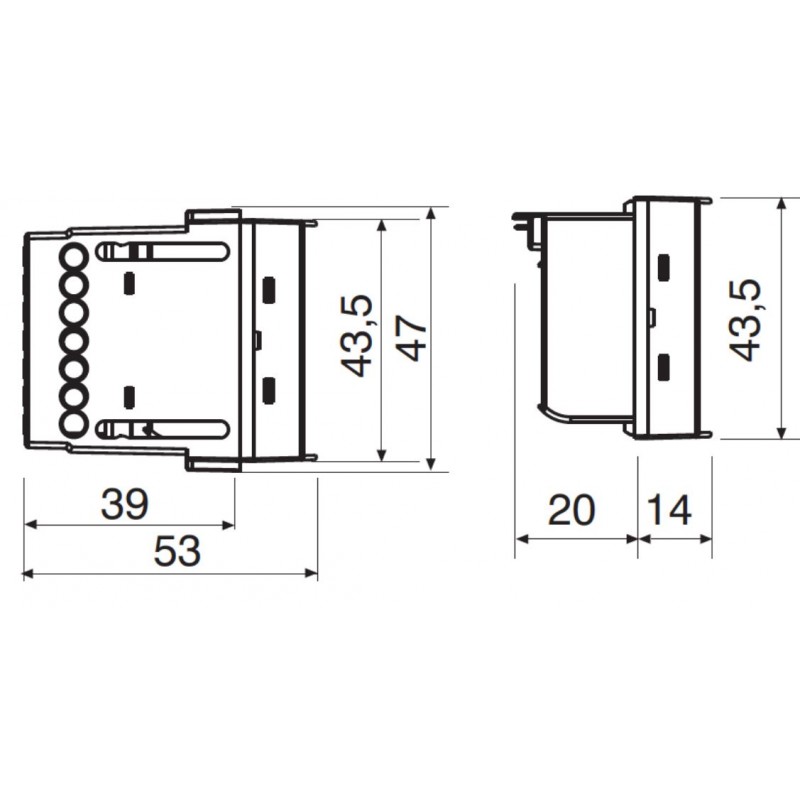

- Dimensions (WxDxH) 120 x 27.6 x 82

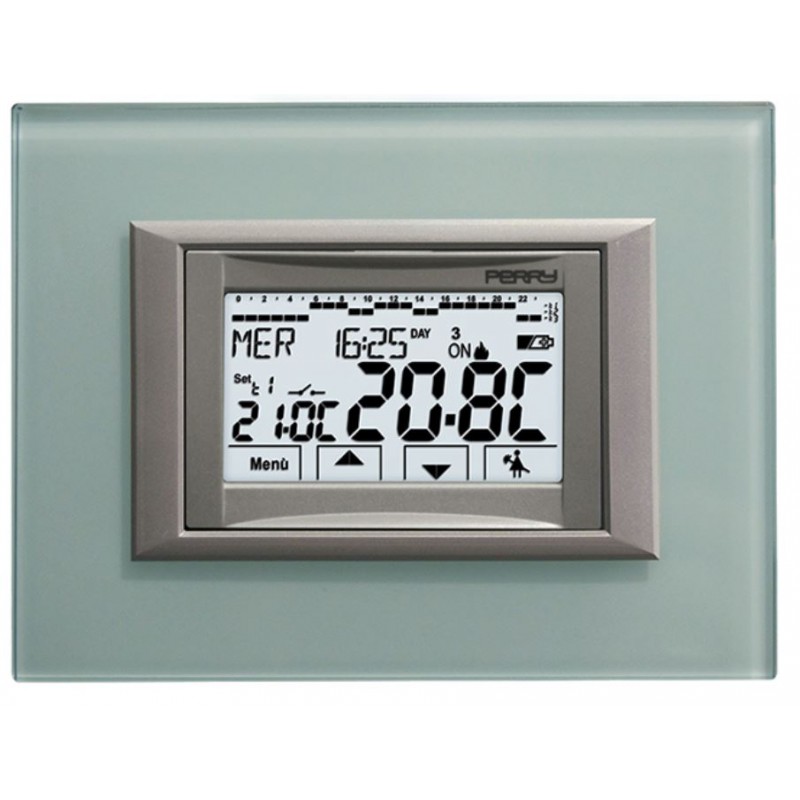

Adaptable with the three front panels supplied in the package, the products are dimensionally and chromatically compatible with the series plates:
GEWISS
- Chorus ONE/LUX/FLAT/GEO White
- Chorus ONE/LUX/FLAT/GEO Black
- Chorus ONE/LUX/FLAT/GEO Titanium
BTICINO
- Light, LivingLight White
- Light Tech, LivingLight Tech,
- Living, LivingLight Anthracite,
- Matix,
- Axolute Tech, Axolute Anthracite, Axolute White
- Plana, Plana Silver
- Eikon Grey,
- Eikon Next,
- Eikon White
Abb
- Clear Series
L'unica "nota stonata" è che la mostrina aggiuntiva per adattarlo alla linea Vimar Idea lascia un po'di spazio vuoto
Buon cronotermostato le placche non sono sempre precise
Data sheet
- Type:
- Programmable thermostats
- Model:
- With display
- Installation:
- Recessed
- WIFI:
- No
