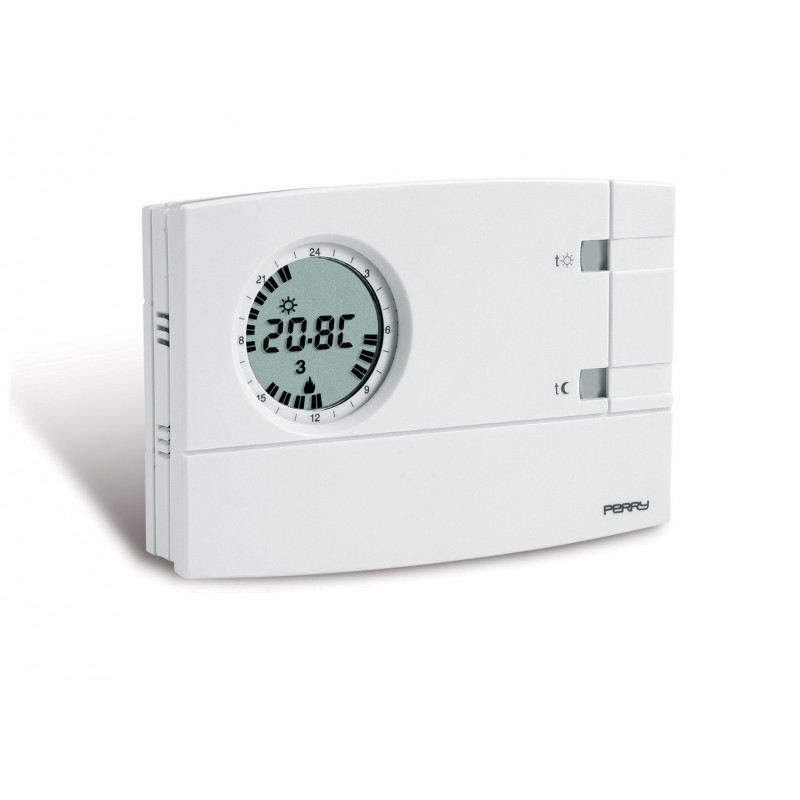

Perry programmable thermostat battery-operated wall-mounted white 1CRCR309/S

Perry
PER 1CRCR309/S 8019108090600

Perry digital wall-mounted programmable thermostat with the following features:



  • 3V power supply - 2 Stylus alkaline batteries 1.5 V type AA LR6
  • Rated impulse voltage: 4 kv
  • Autonomy from turning on low battery symbol: 1 month
  • Lcd display 2" 2/3
  • Output 1 potential-free deviation contact: 5(3)A/250V ac
  • ON/OFF operation with differential adjustable from 0.3/0.5/0.7/0.9°C or modulating with control period 7/10/15/20 minutes
  • Temperature set regulation shown on display
  • Temperature levels 2 + fixed antifreeze at 5°C
  • Autonomy 24 months
  • Minimum programming 30 minutes
  • Permanent manual operation
  • Temperature lockout
  • Telephone control input
  • Adjustment range 5 - 37.7°C

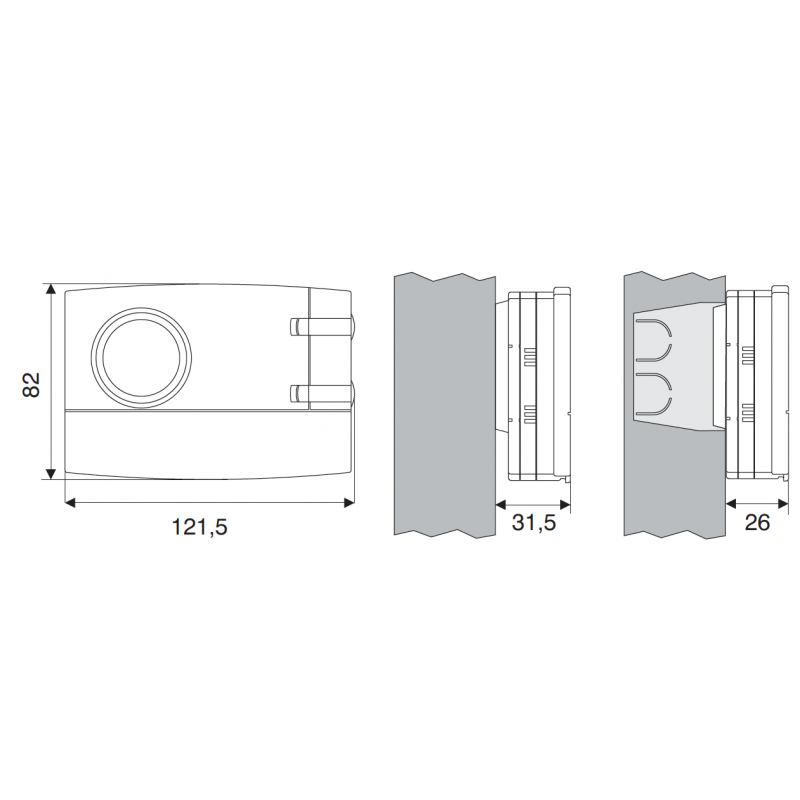

  • Dimensions (WxDxH) 121.5 x 31.5 x 82 mm
Do you have questions about this product or did you not find what you were looking for? Ask us!

Perry programmable thermostat battery-operated wall-mounted white 1CRCR309/S

€54.07
€54.07

Perry programmable thermostat battery-operated wall-mounted white 1CRCR309/S

€54.07
Tax included
Items Available: 23
Further availability of the manufacturer

Perry programmable thermostat battery-operated wall-mounted white 1CRCR309/S

€54.07

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Output type: relay with potential-free NO / COM / NC changeover contact - max 5(3)A / 250 Vac
  • Input for telephone programmer: for potential-free NO contact
  • Wire cross-section at telephone programmer terminals: 0.5 ÷ 1.5 mm2
  • Insulation type: class II
  • Degree of protection: IP30
  • Number of programmable indexes on the clock crown: 48
  • Minimum programmable time with "rider" keys: half an hour
  • Pollution degree: normal
  • Thermal gradient: max 1K / 15 minutes
  • Temperature control type: ON-OFF operation with differential settable at 0.3 - 0.5 - 0.7 - 0.9 °C, proportional operation with time cycles settable 7-10-15-20 minutes

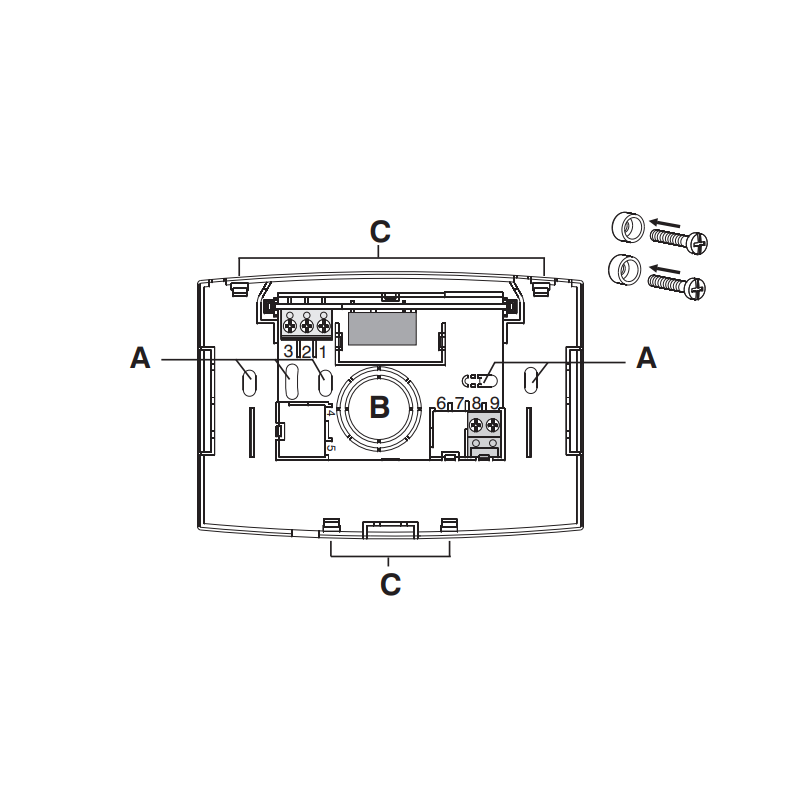

Installation: Wall-mounted - on round box - semi-recessed on rectangular 3-module box. Install the device about 1.5 ÷ 1.6 meters from the ground away from heat sources, windows and anything else that may affect the normal operating state.



  • A fixing holes
  • B wire passage from round, rectangular box
  • C chronothermostat fixing teeth

Soddisfatto del acquisto prodotto eccellente

Read all reviews

Data sheet

Type:
Programmable thermostats
Model:
With display
Installation:
Wall-mounted
WIFI:
No
