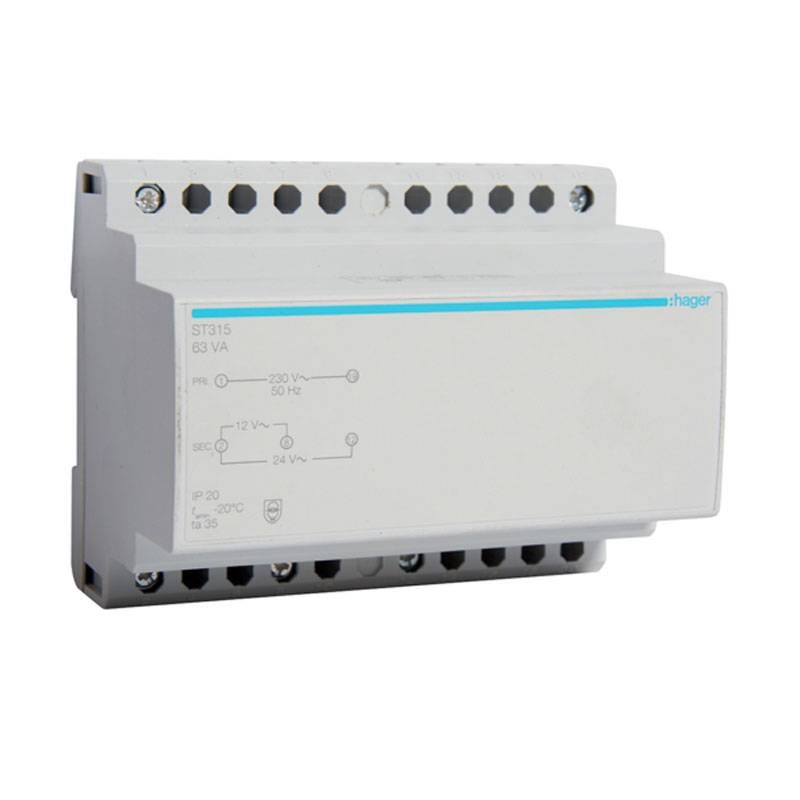

Hager Modular Transformer 230V 12 - 24V Ac 63 Va 6 Modules ST315


HAG ST315

Hager Modular Transformer with the following characteristics:

  • VA power consumption 63VA
  • Rated operating voltage AC 230V
  • Rated insulation voltage 4000 V
  • Secondary output voltage 2 24 V
  • No-load voltage at secondary 14.2 / 26.5 V
  • Rated voltage at secondary 12 / 24 V
Do you have questions about this product or did you not find what you were looking for? Ask us!

Hager Modular Transformer 230V 12 - 24V Ac 63 Va 6 Modules ST315

€74.03
€74.03

Hager Modular Transformer 230V 12 - 24V Ac 63 Va 6 Modules ST315

€74.03
Tax included

Hager Modular Transformer 230V 12 - 24V Ac 63 Va 6 Modules ST315

€74.03

Buy it within and receive it from Tuesday, 10 December
Two-year warranty
Easy return within 14 days

Features:

  • Mounting mode DIN rail type O (symmetrical)
  • Suitable for DIN rail mounting
  • Rated frequency 50 Hz
  • Current at secondary 2: 2.63 A
  • Current at secondary 5.25 A
  • Safety transformer
  • Dimensions: Depth of installed product 68 mm - Height of installed product 85 mm - Width of installed product 105 mm
  • Tightening torque 1.2Nm
  • Suitable for wall-mounted installation
  • DIN rail mounting type
  • Minimum cross-section with flexible cable 4mm²
  • Minimum cross-section with rigid cable 6mm²
  • Maximum cable length for gate opening 0.5 A max. 100 m
  • Maximum cable length for gate opening 1 A max. 50 m
  • Protected against short circuits
  • Standards Text EN 61558-2-6 - Reference standards EN 61558-2-6
  • Enclosure degree of protection IP20
  • Thermal protection
  • Operating temperature -20/+35 °C

Data sheet

Type:
Modular Transformers
Modules:
6
Power:
63VA
Vin:
230V
Vout:
12V-24V
