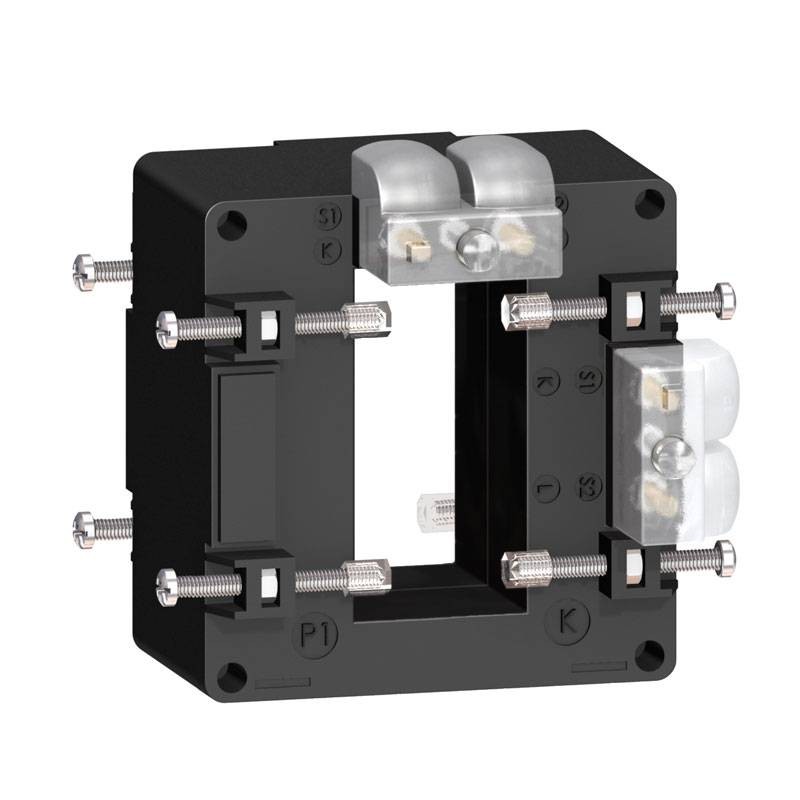

Schneider 400/5A Amperometric Transformer for Busbar 32x65mm METSECT5DA040


SNR METSECT5DA040 3303430164791

Schneider tropicalized Amperometric Transformer for 32x65mm bus bars with the following characteristics:

  • Secondary current: 5A
  • Rated current In: 400 A
  • Conventional thermal current in air Ith: 24 kA
  • Dynamic resistance current: 2.5 Ith
  • Rated operating voltage Ue: 720 V "AC" "50/60 Hz"
  • Rated insulation voltage Ui: 3 kV
  • Rated impulse withstand voltage Uimp: 3 kV
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider 400/5A Amperometric Transformer for Busbar 32x65mm METSECT5DA040
€58.24
€55.32
€55.32

Lowest price in 30 days:
€58.24
Save 5%
€55.32
Tax included

€55.32

Buy it within and receive it from Wednesday, 19 March
Two-year warranty
Easy return within 14 days

The tropicalized busbarcurrent transformer has a rated line current of 400 A and a rated secondary current of 5 A.

This current transformer has an opening of 65 mm x 32 mm. Compatible with a single busbar outlet: 65 mm x 32 mm.

Load and accuracy class: for class 0.5 maximum power 4 VA, for class 1 maximum power 8 VA.

Features:

  • Accuracy class: Class 0.5 to 4 VA - Class 1 to 8 VA
  • Mounting mode: insulated locking screw
  • Mounting bracket: Collector bar
  • Insulation class: B
  • Relative humidity: 0/95 %
  • Operating ambient temperature: -25/60 °C
  • Degree of protection: IP20
  • Bar opening: 65x32 mm

Dimensions and weight:

  • Height: Outer 94 mm - Inner 32 mm
  • Width: Outer 90 mm - Inner 65 mm
  • Depth: Frame 40 mm - Total 87 mm
  • Weight: 531 grams

Data sheet

Type:
Toroidal Transformers
Amps:
400A
