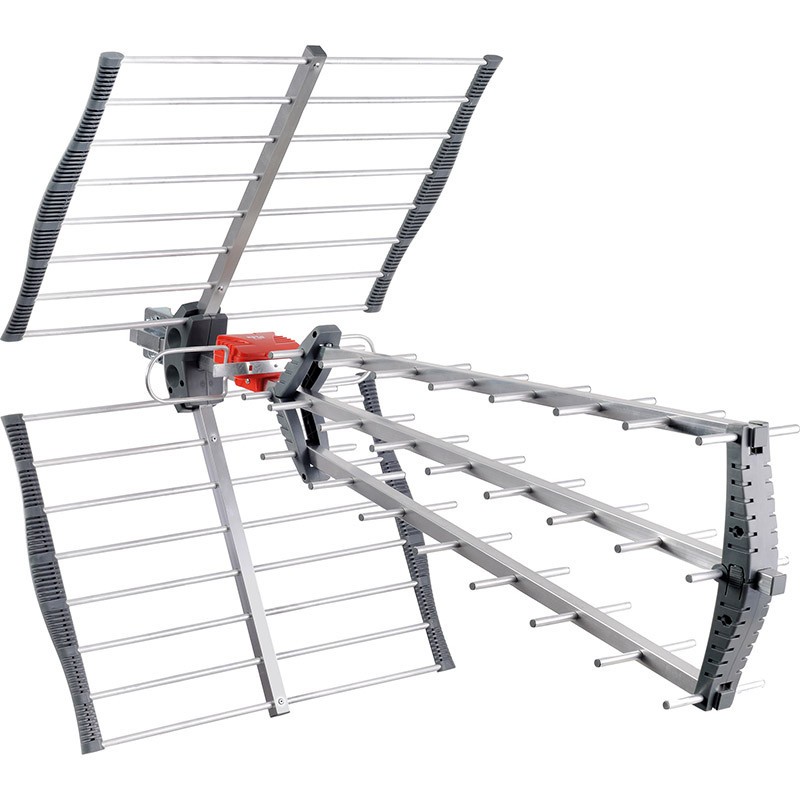

Antenna Triple FTE UHF 45 Elements HYDRA45LTE
FTE HYDRA45LTE
8436545300220
FTE antenna with LTE filter with three supports arranged in herringbone pattern; supports 27 elements with 17 dBi gain, 28 dB A/D ratio. Highly directive antenna, optimal for receiving DTT signals.
Antenna Triple FTE UHF 45 Elements HYDRA45LTE
€51.92
€51.92
Tax included
Tax included
Items Available: 24
: 12
STRENGTHS
- Pre-assembled elements, dipole and quick-connect reflectors
- Horizontal / vertical polarization with zenithal adjustment
- High gain and extraordinary directivity with almost total absence of side lobes
- Integrated 4G/LTE filter
- Assembly without tools
- Mechanically robust with 18 x 18 mm cradle and Ø 8 mm elements
APPLICATIONS
It is installed in areas where reception is problematic by greatly attenuating isofrequency noise, pulse noise and various RF disturbances. Thanks to the LTE dipole, it reduces the electromagnetic field generated by mobile telephony receivers (BTS) on former TV frequencies C61-C69.
TECHNICAL DATA
- N° elements 27
- UHF band
- Channels C21 ÷ C60
- Gain - dBi 17
- Forward/reverse ratio - dB 28
- Beam width -3 dB (H/V) 32/ 65
- Wind resistance 120 km/h (720 N/m2) - N 110
- Connector type F
- Impedance - Ohm 75
- Horizontal and vertical polarization
- Pole connection diameter - mm 28 ÷ 60
- Dimensions (W x H x D) - mm 745 x 520 x 1055
- Unit weight - Kg 2,5
- Ø 8 x 0.6 / 0.4 curtain reflector
- Ø 8 x 0.6 / 0.4 Curtain 18 x 18 x 0.75
- Accessories including connector F protective cap
L'antenna è bella grossa e robusta. Facile da montare, tutto a incastro. Buona la connessione con connettore F.
Data sheet
- Type:
- Antennas
- Version:
- UHF
