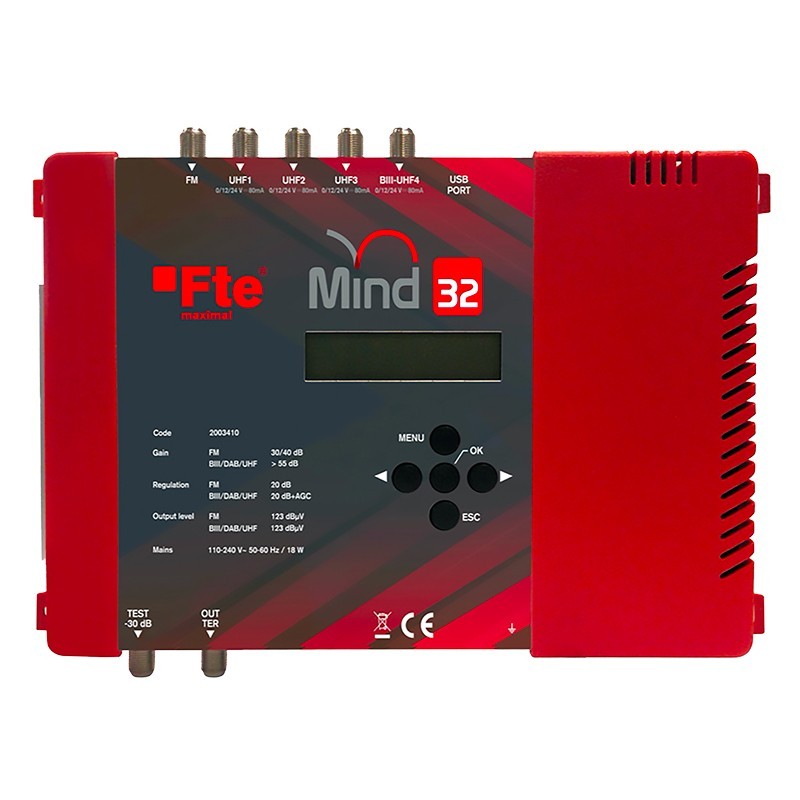

Central TV FTE with programmable filters 4 inputs MIND32
FTE MIND32
8436545306451
Central TV FTE MIND32 Central unit with programmable filters with 1 FM input, 1 BIII-DAB/UHF input and 3 UHF inputs with Gain >55dB with output level of 123dBµV and possibility to filter, convert and amplify each mux independently.
Central TV FTE with programmable filters 4 inputs MIND32
€334.07
€334.07
Tax included
Tax included
Items Available: 4
: 1
Strong points:
- High self-adjustable output level up to 123dBµV
- Programming in 3 steps via keypad and LCD display
- Automatic scanning of the mux present
- Automatic adjustment of the output level according to the filtered muxes
- Perfect euqalization of the output signals
- 32 programmable filters with single channel per filter at 7/8 MHz
- Conversion of channels on the band
- CAG Automatic Gain Control on every single mux
- Automatic LTE / 5G filter
- Very high selectivity of filters on adjacent channels >35dB@1MHz
- Block code for programming
- It has 5 programmable inputs FM-DAB-BIII-UHF
- USB 2.0 port for upload/download configurations
- 12Vdc remote power supply
- 80mA for each input.
Applications:
- The MIND32 central unit's auto-programming allows selection of the best DVB-T/T2 channels to distribute them on the output, guaranteeing high selectivity between adjacent channels.
- Thanks to the excellent gain and the high output level, MIND32 is the ideal control unit to distribute terrestrial signals in medium and large sized installations guaranteeing a high quality of digital programmes.
- Thanks to the perfect equalization, the MIND32 is the most suitable central unit in all single-fiber or FTTH multiservice installations where there is a fiber optic distribution.
Features:
- No. 5 inputs: FM, DAB-BIII/UHF, 3x UHF
- Frequencies - MHz FM: 88÷108, DAB-BIII/UHF: 174÷230/470÷862, UHF: 470÷862
- N° Outputs 1 OUT + 1 TEST (-30dB)
- Input level - dBµV FM: 40 ÷ 90, DAB-BIII/UHF: 50 ÷ 100
- Protection LTE / 4G - MHz Yes, with high selectivity filters
- Gain - dB FM: 40/30, DAB-BIII/UHF: >55
- Adjustment - dB FM: 20, DAB-BIII/UHF: CAG on every single channel
- FM output level max - dBµV 123
- BIII/UHF output level max. - dBµV 123 (automatic adjustment according to filtered mux)
- Conversion Yes
- Additional functions Autoscan for mux with power higher than 50dB - Max. Out. automatically calculated in . function of the quantity of mux in input
- Number of programmable filters 32
- Number of channels per filter 1
- General adjustment - dB 20
- Slope adjustment - dB 9
- Selectivity - dB/1 MHz >35
- MER - dB 35
- FM noise figure - dB < 6
- Programming via keypad and LCD display
- Power supply voltage - VDC 12 / 24
- Remote supply current - mA 80 on each input
- USB 2.0 port functions Save / Copy configuration
- Supply voltage - VAC / Hz 100 ÷ 254 / 50 ÷ 60
- Consumption - W 18
- Operating temperature - °C -5 ÷ +50
- Dimensions (W x H x D) - mm 265 x 190 x 52
- Weight - Kg 1
- Complies with standards EN60728-11, EN62368-1, EN50083-2, EN61000-3-2, EN61000-3-3.
There are no reviews
Data sheet
- Type: Front panels
- Version: 4IN/1OUT
