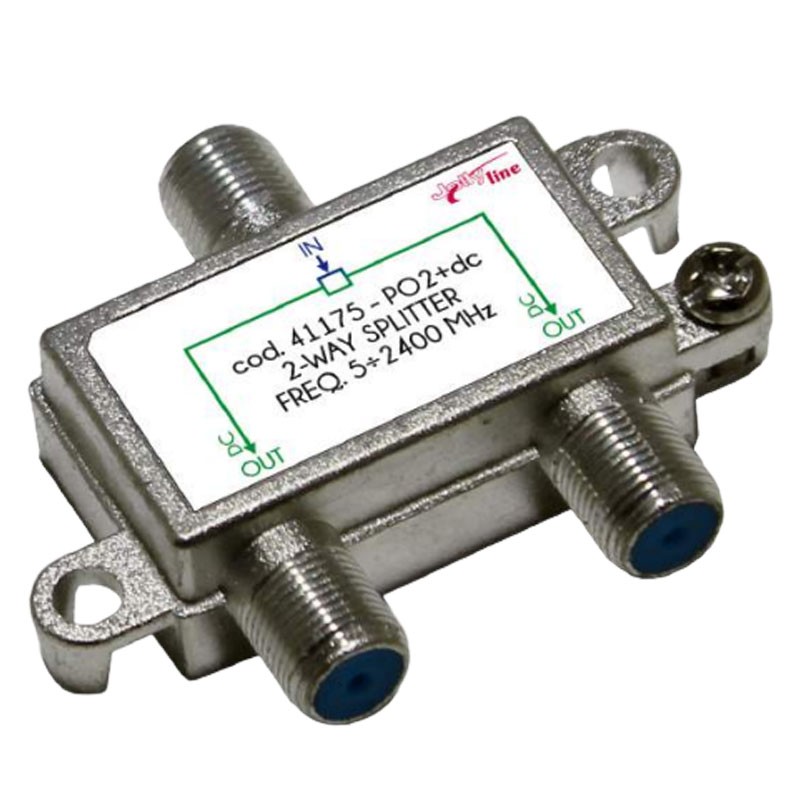

Konelco GBS flush-mounted horizontal divider 1 input 2 output 41175
GBS 41175
8028626411705
Konelco GBS PO2+DC 2-way horizontal divider with direct current flow from the output to the input (one-way), with the following characteristics:
- Frequency 5 to 2400 MHz
- Output to output separation dB 20
- Direct current passing From output to input (one-way)
- Connection: Female
- Number of inputs: 1
- Number Outputs: 2
- Usage: recessed
Konelco GBS flush-mounted horizontal divider 1 input 2 output 41175
€3.46
€3.46
Tax included
Tax included
Items Available: 18
: 3
Insertion loss:
- 5÷40 MHz 4.5
- 40÷470 MHz 5
- 470÷1000 MHz 5
- 1000÷1750 MHz 5.8
- 1750÷2050 MHz 5.8
- 2050÷2400 MHz 6.5
Montato senza problemi, fa il suo lavoro, materiali utilizzati buoni, completo di scatoletta di contenimento.
Data sheet
- Type:
- Splitters
- Version:
- 2 outputs
