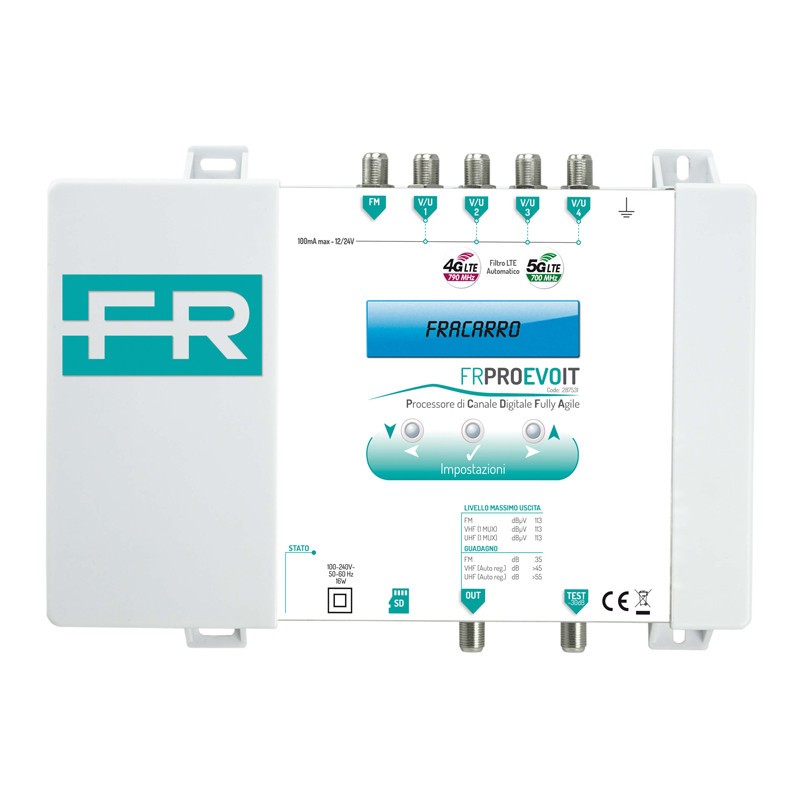

Fracarro FRPRO EVO IT digital control unit programmable 4 inputs 113DB 287531
FRA 287531
8016978102716
Fracarro FRPRO EVO IT programmable digital control unit, for highly selective filtering of TV channels with 5 inputs (FM, 4x VHF/UHF flexible) and 113dBμV output level for each filter. 32 filters from 1 to 6 channels, each with 8 selectivity levels.
Fracarro FRPRO EVO IT digital control unit programmable 4 inputs 113DB 287531
€257.66
€257.66
Tax included
Tax included
Items Available: 12
Features:
- Fracarro Series
- Inputs No. 5
- Input bands: MHz : FM, 4x VHF/UHF
- N° filters / N° channels per filter: Flexible Matrix 32/1..6
- LTE protection MHz: 470-862 or 470-790 or 470-694 AUTO LTE Filter
- Maximum Output Level: dBµV 113 (FM), 113 (for each VHF/UHF filter)
- Gain Adjustment dB: >75 (auto AGC)
- General adjustment dB: 20
- Slope adjustment dB: 15/15
- Selectivity dB: 50@1MHz
- MER dB : 3
- Load/save configuration: SD CARD
- Connector: F female
- Remote supply voltage: 12V
- Remote supply current mA: 100
- Consumption: 16W
- Supply voltage: 100-240 Vac
- Frequency: 50-60 Hz
- Compliance: EN60065: 2004-06, EN50083-2: 2002-05
- Degree of protection:IP20
- Operating temperature C°: -5 to +50
- Dimensions mm: 217x165x59
Advantages:
- The control unit can filter, convert, amplify and distribute many DVB-T/T2 digital terrestrial multiplexes available in both VHF and UHF bands.
- Perfect equalization of output signals
- Iso-frequency filtering or channel conversion
- Automatic gain control on every single mix
- Automatic 5G and 4G LTE filtering
- Reduces interference when a channel is turned off by the broadcaster so as not to affect adjacent channels
- Quick and easy installation and programming
- Save configuration on SD Card (not included)
Prodotto buono di facile installazione e buone caratteristiche
Ottima centrale. Con i filtri programmabili ho risolto i problemi di ricezione
Eccezionale, rende obsoleti gli altri amplificatori/centrali non programmabili!
Ottimo semplice e veloce e soprattutto funzionale
DEVO ANCORA INSTALLARLO IN MANIERA DEFINITIVA, MA GIA' COSI'
MOLTO SODDISFATTO DEL PRODOTTO.
Data sheet
- Type: Front panels
- Version: 4IN
- Model: 20db
