Fracarro Amplifier MAP4R3UU T2 3 DAB U U 22/40DB 223758

Fracarro
FRA 223758 8016978100408

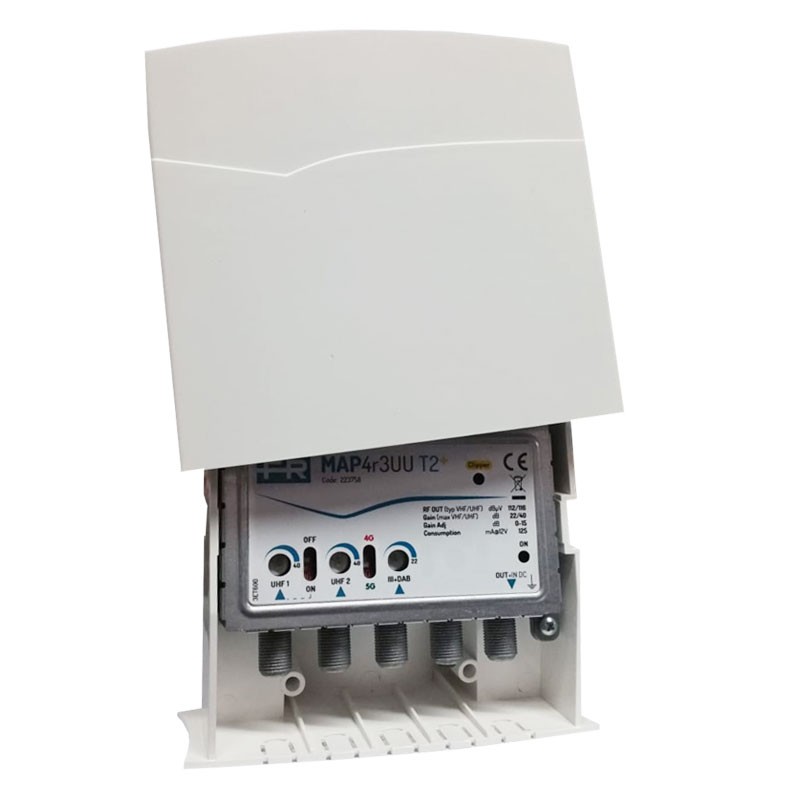

Fracarro MAP4R3UU T2 amplifier, with the following features:



  • With 3 inputs (III+DAB, UHF, UHF) pole mount.
  • With 40dB gain and output level up to 116dBμV in UHF band
  • Separate VHF/UHF amplifications
  • Independent gain adjustments (0-15dB) for each input and low noise figure
  • T2 technology with innovative cutoff selection switch for LTE 4G interference at 790MHz or 5G interference at 694MHz
  • IN: 3
  • Bands: III+DAB, UHF
  • Output level: (dBµV) 112, 116
  • Gain: (dB) 22, 40, 40
  • Adjustment: (dB) 15, 15,15
  • Noise figure: (dB) 5, 7
  • Power consumption: (mA) 125@12Vdc
Do you have questions about this product or did you not find what you were looking for? Ask us!

Fracarro Amplifier MAP4R3UU T2 3 DAB U U 22/40DB 223758

€29.48
€29.48

Fracarro Amplifier MAP4R3UU T2 3 DAB U U 22/40DB 223758

€29.48
Tax included
Items Available: 859
Further availability of the manufacturer

Fracarro Amplifier MAP4R3UU T2 3 DAB U U 22/40DB 223758

€29.48

Buy it within and receive it from Wednesday, 18 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • T2 selector switch: innovative cutoff selection switch for LTE 4G interference at 790MHz or 5G interference at 694MHz; built-in 4G and 5G LTE filters to provide connections with more protection from the elements than an external filter
  • CLIPPER technology: unique system that limits the device's UHF band gain to ensure the maximum available RF output level and minimize intermodulation; there is an LED that lights up when this control is activated
  • RED Compliant: each model complies with regulatory requirements regarding Radio Spectrum Electromagnetic Compatibility and Safety set forth in recent European directives
  • ZAMA die-cast frame with metal covers for very high shielding to interference (LTE Free)

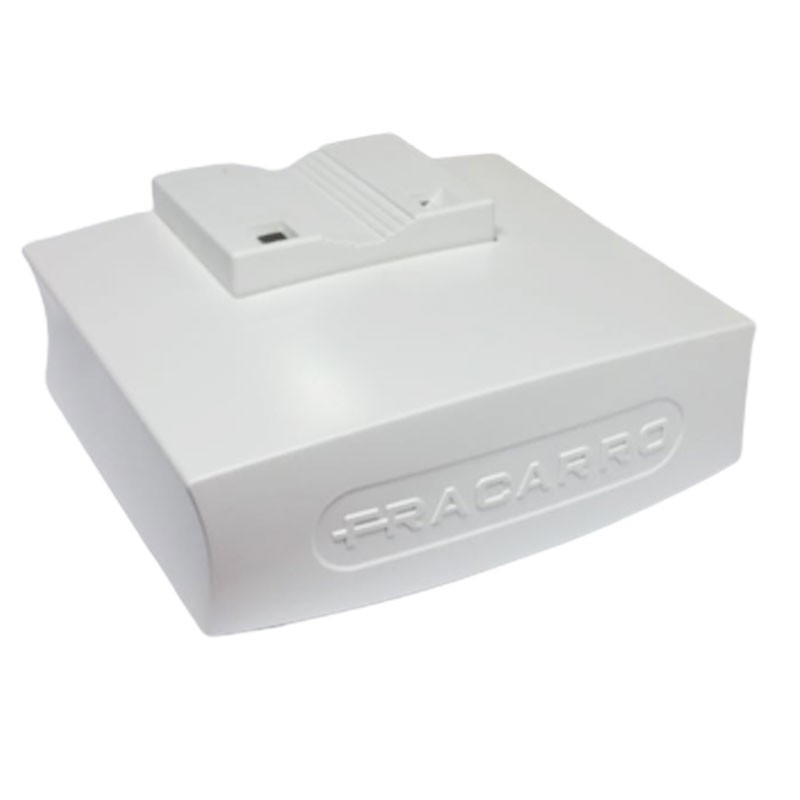

  • Outdoor protective bell made of ABS is equipped with a slide opening and tilting system of the amplification section to make the installer's work easier
  • Selector switch for inserting the remote power supply on the UHF input, or on the V+U input depending on the model
  • Status LED for correct power supply and fixing clamp suitable for poles up to 60mm diameter

Prodotto di qualità originale consiglio vivamente a tutti veloci e preciso

Transazione senza problemi, imballaggio fatto bene, spedizione veloce, prezzi normali.

Velocità e precisione e prodotti top

Compro spesso da loro e sono sempre cordiali e rapidi nella spedizione!

Tutto bene con l’articolo ho risolto il problema dà consigliare

Envoi et réception ultra rapide ! Produit Fracarro excellent Je recommande

Ok tempi e descrizione prodotto, costi regolari

Read all reviews

Data sheet

Type:
Amplifiers
Version:
3IN/1OUT
Model:
Pole
