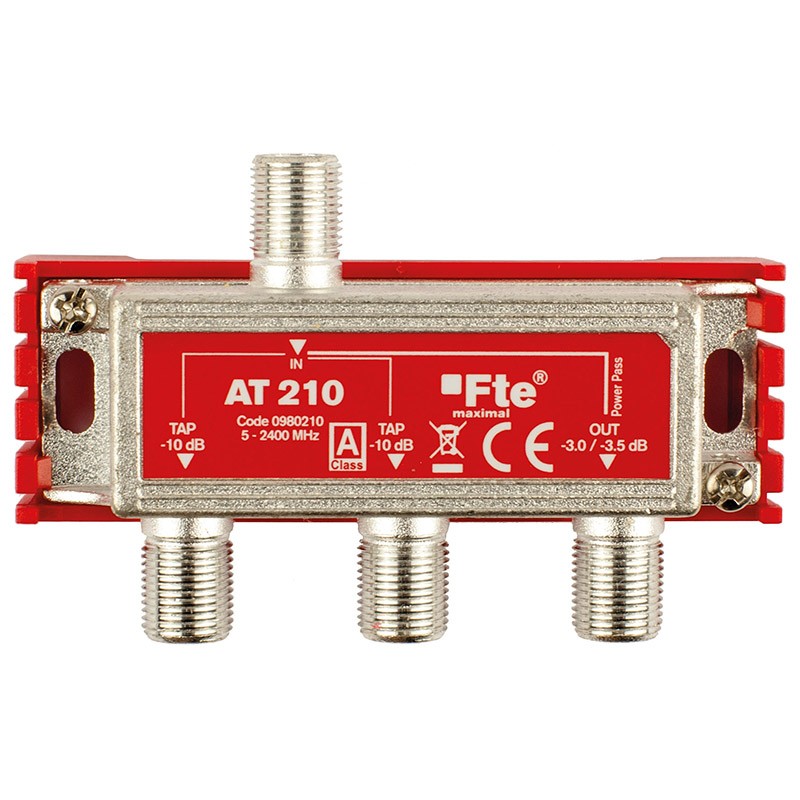

FTE class A terrestrial and satellite TV feeder 1 output 2db and 2 outputs 10db
FTE AT210
8436018440521
Class A inductive FTE armored terrestrial and satellite shunt from 5 to 2,400 MHz, with one pass output with typical attenuation of 2 dB and two shunt outputs with 10 dB attenuation
FTE class A terrestrial and satellite TV feeder 1 output 2db and 2 outputs 10db
€7.17
€7.17
Tax included
Tax included
Items Available: 37
: 5
Strengths:
- Working band 5 ÷ 2400 MHz
- 1 input, 1 output and 2 derivatives
- Attenuation value 10 dB
- High shielding efficiency guaranteed
- DC passage between output and input
- Compact dimensions
Applications:
- Allows to transfer the signal from one floor to another where they are installed, from the IN input to the OUT output with a low loss of passage and therefore not altering the characteristics.
- The derived outputs can be connected to the user socket or towards the apartment to the divider that will sort the signal on more user sockets
Technical data:
- No. of branches 2
- Working frequencies - MHz 5 ÷ 2400
- TV branch loss 47 ÷ 862 - dB 11
- SAT branch loss 950 ÷ 2150 MHz - dB 11,5
- Loss of passage TV 47 to 862 - dB 3
- SAT loss of passage 950 ÷ 2150 - dB 3,5
- Connection type F
- Tap/tap isolation - dB > 28
- Current passage OUT-IN
- Electromagnetic shielding - dB > 100 (class A)
- Return loss - dB > 8
- Operating temperature - ° C -10 ÷ 55
- Dimensions ( W x H x D) - mm 77 x 55 x 27
- Weight - g 78
- Complies with EN 50083-2 standards
