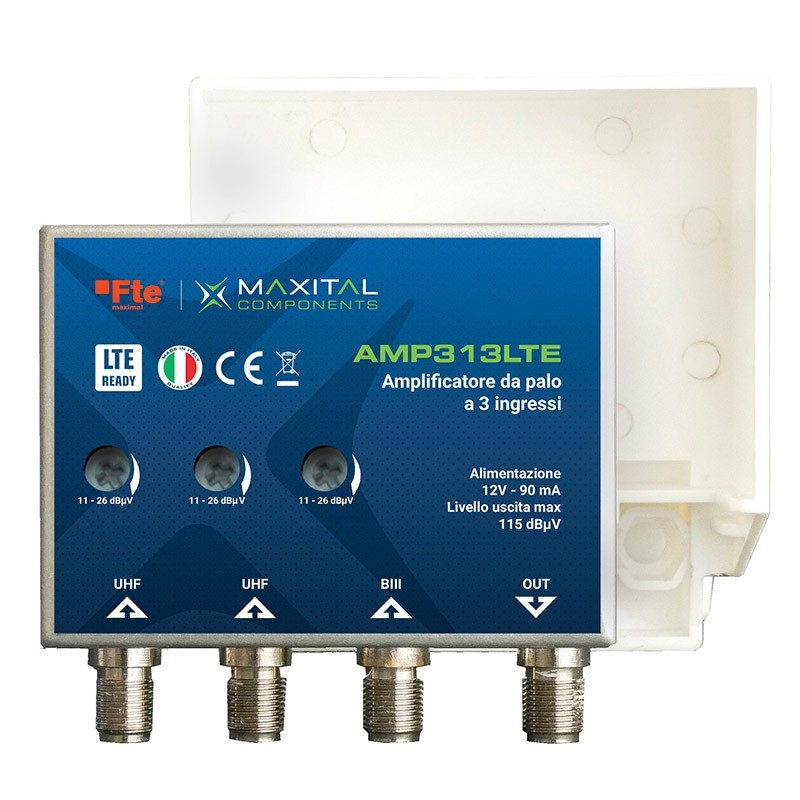

FTE Pole Mount Amplifier 3 Input VHF/UHF AMP313LTE
FTE AMP313LTE
8436545302347
FTE AMP series pole-mount amplifier with 3 VHF / UHF inputs, 26 dB gain and 115 dB output level, separate amplification, 12 V power supply, fully shielded and equipped with rainproof plastic case.
€35.18
€35.18
Tax included
Tax included
Items Available: 46
: 20
Frequently bought together
Strengths:
- High gain
- Separate VHF - UHF amplification
- Integrated LTE filter
- Low noise figure
- Gain adjustment 20 dB
- Fully shielded metal chassis and F-type connectors
- 12 VDC power supply
- Equipped with plastic case and clamp for pole mounting
- 100% made in Italy.
Applications:
- It is used for medium-small installations; power supply through LPS200 power supply unit.
Features:
- Inputs 2 ( BIII / UHF / UHF)
- Bands 174 ÷ 230 / 470 ÷ 790
- No. of outputs 1
- Gain - dB 26 / 26 / 26
- Gain adjustment - dB 20 / 20 / 20
- Digital output max level - dBµV 115
- Noise figure - dB <= 4
- Supply voltage - VDC 12
- Absorption - mA 90
- Maximum pole diameter - mm 60
- Type of amplification VHF / UHF separate
- Frame type Zamak with metal covers
- Type of container Plastic
- Operating temperature - ° C -10 to 55
- Dimensions (W x H x D) - mm 83 x 78 x 28
- Weight - g 225
- Packing quantity single / multiple 1 / 10
- Complies with EN 50083-2 standards.
There are no reviews
Data sheet
- Type: Amplifiers
- Version: 3IN/1OUT
- Model: Pole
