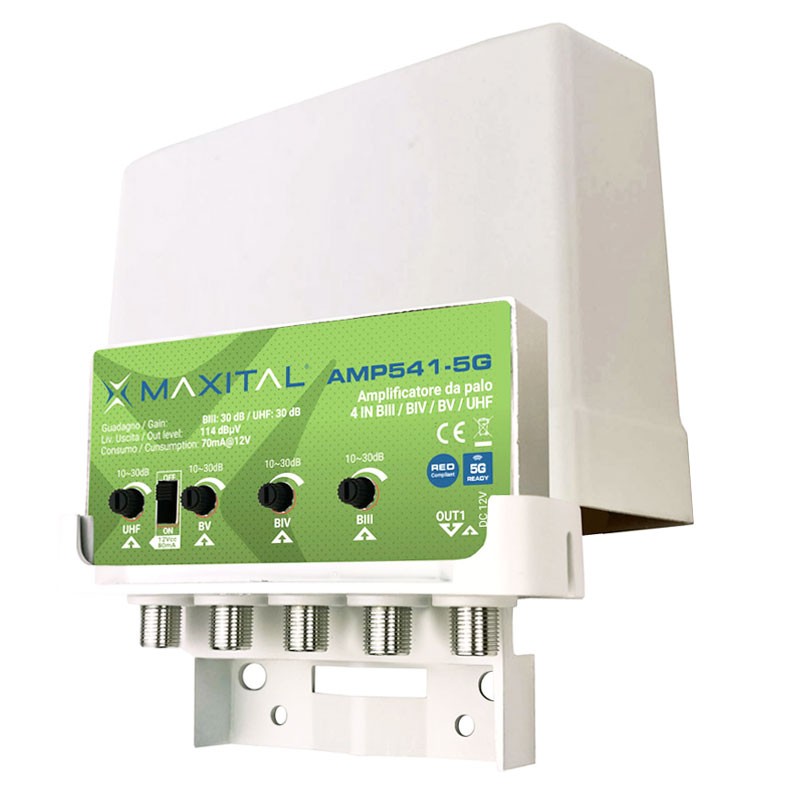

FTE Pole Mount Amplifier 4 Inputs BIII/2134/3648/UHF AMP541-5G
FTE AMP541-5G
8436018445724
FTE AMP series pole mount amplifier, with the following features:
- Inputs: 4 (BIII / BIV/ BV/ UHF)
- Bands: 174 ÷ 230 / 470 ÷ 582 / 590 ÷ 694 / 470 ÷ 694
- No. of outputs: 1
- Gain: dB 26 / 26 / 26 / 26
- Gain adjustment: dB 20 / 20 / 20 / 20
- Max. digital output level - dBµV 115
- Noise figure: dB <= 4
- Supply voltage: 12 VDC
- Power consumption: 90 mA
- Equipped with 5G internal filter and rainproof plastic case
It is used for medium-small installations, power supply via power supply unit (code LPS200 to be purchased separately).
FTE Pole Mount Amplifier 4 Inputs BIII/2134/3648/UHF AMP541-5G
€27.67
€27.67
Tax included
Tax included
Items Available: 5
: 1
Other technical features:
- Maximum pole mount diameter: 60mm
- Type of amplification: separate BIII / UHF
- Frame type: Zama with metal covers
- Enclosure type: plastic
- Operating temperature: -10/+ 55 °C
- Dimensions ( W x H x D): 83 x 78 x 28
- Weight: 225 grams
- Conforms to standards: EN 50083-2
Strengths:
- High gain
- Separate amplification BIII - UHF
- Integrated 5G filter
- Low noise figure
- 20 dB gain adjustment
- Fully shielded metal chassis and F-type connectors
- 12 VDC power supply
- Equipped with plastic case and clamp for pole mounting
- 100% made in Italy
There are no reviews
Data sheet
- Type:
- Amplifiers
- Version:
- 4IN/1OUT
- Model:
- Pole
