Fte Logarithmic antenna UHF band 14+14 elements 5G LOGUHF-5G
FTE LOGUHF-5G
8055271138282
Fte logarithmic UHF F-band antenna 14+14 elements, with 5G filter:
- No. of elements 14 + 14
- UHF band
- Channels C21 to C48
- Gain - dBi 13.5
- Forward/reverse ratio - dB 30
- Beam width -3 dB (H/V) -° 55
- Wind resistance 120 km/h (720 N/m²) 26.5
- Connector type F, rear rotatable 90°
- Impedance: Ohm 75
- Horizontal and vertical polarization Yes

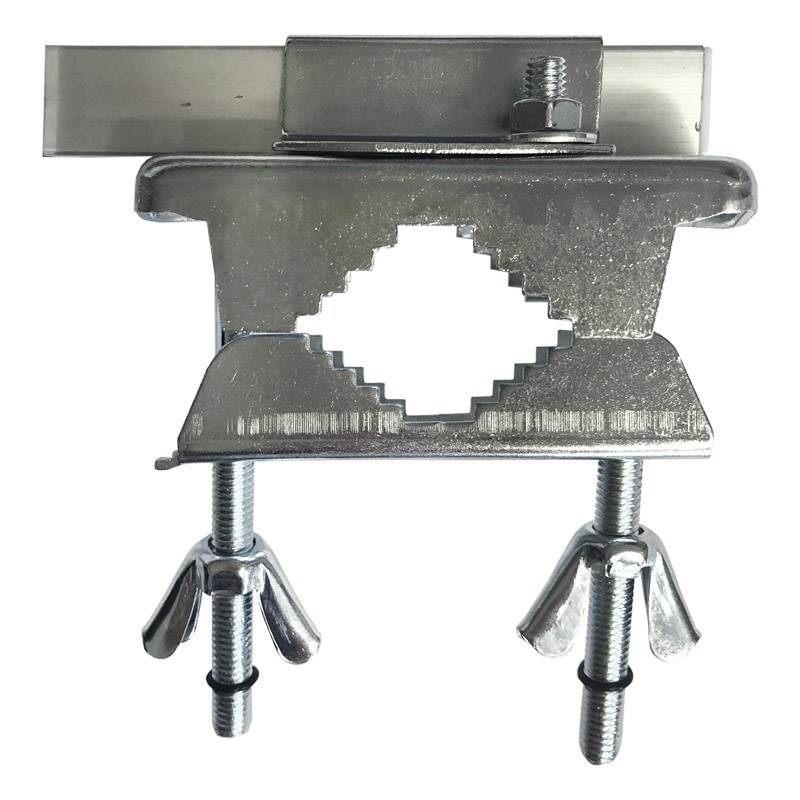

- Pole attachment diameter - mm 28 ÷ 55
- Dimensions (W x H x D) - mm 1100 x 40 x 306
- Cradle dimensions - mm 14 x 14 x 0.7
- Accessories included: F connector + protective cap
- Installs under optimal reception conditions
Fte Logarithmic antenna UHF band 14+14 elements 5G LOGUHF-5G
€17.01
€17.01
Tax included
Tax included
Items Available: 7

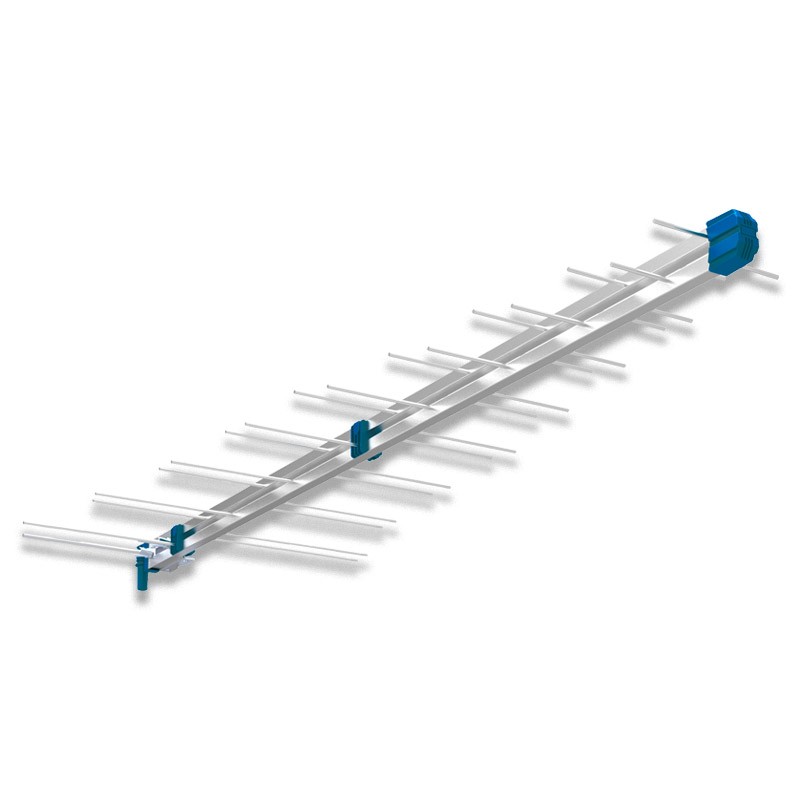

28-element UHF Band Logarithmic Antenna, the antenna with 4 mm aluminum rod elements, with F connector. The antenna comes with F connector and connector protection cap.
STRENGTHS:
- Fully pre-assembled antenna
- 90° rotatable rear F connector
- Linear gain over the entire working band
- Horizontal/vertical polarization
- High forward/reverse ratio
- 5G filter
Data sheet
- Type:
- Antennas
- Version:
- BAND 3
