Uninterruptible Power Supply UPS Riello Sentinel Tower 10KVA 10 minutes CSTWK10AA500RUA
RIE CSTWK10AA500RUA
8023251007354
Riello Sentinel Tower Uninterruptible Power Supply UPS:
- Rated power 10000 VA
- Single-phase/three-phase input
- Single-phase output
- Input voltage 380 / 400 / 415 V (3W+N+PE) - 220 / 230 / 240 V (1W+N+PE)
- Voltage tolerance 400 V ±20% / 230 V ±20%.
- Autonomy 10 Minutes
- Autonomy Small footprint
- Power factor 1
- High efficiency 95%
- Parallel operation of up to 3 units
- 3-level inverter
- High-quality output voltage
Uninterruptible Power Supply UPS Riello Sentinel Tower 10KVA 10 minutes CSTWK10AA500RUA
€3,367.44
€3,367.44
Tax included
Tax included
Items Available: 4
Sentinel Tower is the ideal solution for protecting mission critical systems such as security devices and telecommunication systems, as well as IT systems to ensure maximum power reliability. Sentinel Tower is designed and built with state-of-the-art technologies and components to ensure maximum protection of powered consumers, no impact on downstream systems, and high energy savings.
In addition, input and output filters greatly increase the immunity of the load against mains disturbances and lightning strikes. In terms of technology and performance, Sentinel Tower is one of the best UPSs on the market today: three-level inverter to achieve 95 percent efficiency, output power factor 1 to increase system and device efficiency and reduce power system losses.

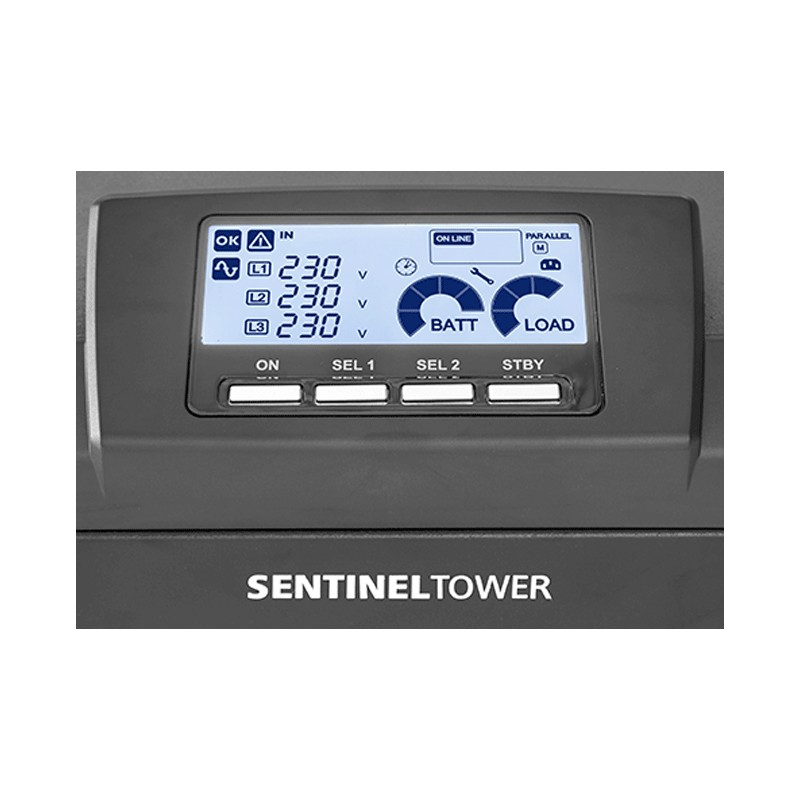

Also, selectable ECO and SMART ACTIVE mode functions, new custom LCD display diagnostics, RS232 and USB interfaces with PowerShield³ software, ESD input, slot for interfacing with option cards.
INPUT:
- Rated power 10000 VA
- Voltage 380 / 400 / 415 V (3W+N+PE) - 220 / 230 / 240 V (1W+N+PE)
- Voltage tolerance 400 V ±20% / 230 V ±20%.
- Frequency 50 / 60 Hz ±5
- Power factor >0.98
- Current distortion ?5% for single-phase input
BY PASS:
- Voltage tolerance 180 / 264 V (selectable in ECO or SMART ACTIVE mode)
- Frequency tolerance Selected frequency ±5% (user selectable)
INVERTER OUTPUT and OUTPUT:
- Rated power 10000 VA
- Active power 10000W
- Crest factor (Ipicco/Irms) 3 : 1
- Sinusoidal waveform
- Frequency 50 / 60 Hz selectable
- Voltage distortion with nonlinear load <3%
- Voltage distortion with linear load <1%
BATTERIES:
- VRLA AGM lead-acid type, maintenance-free
- Charging time 4-6 hours
Features:
- RAL 9005 black color
- Communication USB / RS232 / slot for communication interface / REPO + input contact
- Standard equipment USB cable
- Lightning immunity 1 VDR x 300 J
- Protections Overcurrent - short circuit - overvoltage - undervoltage - thermal - excessive battery discharge
- Noise level (at 1 m) <48
- bBA (ECO mode)
- Operating temperature 0 °C - +40 °C
- Relative humidity 5-95% non-condensing
- Number of sockets Terminal block + 2 IEC 320 C13
- Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility
- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2;
- RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
- Weight 84 kg
- Dimensions (h w d) 250x698x500 mm
- Efficiency Up to 95% in ON LINE mode, 98% in ECO mode
- Protections Overcurrent - short circuit - overvoltage - undervoltage - thermal - excessive battery discharge
- Parallel operation Optional parallel card
- Communications USB / RS232 / slot for communication interface / REPO + input contact
- Input connection Terminal block
- Output sockets Terminal block + 2 IEC 320 C13
- Standards European Directives: L V 2014/35/EU Low Voltage Directive EMC 2014/30/EU
- Electromagnetic Compatibility Directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
- Classification according to IEC 62040-3 (Voltage Frequency Independent) VFI - SS - 111
- Ambient temperature for the UPS 0 °C to +40 °C
- Recommended temperature for battery life 0 °C to +40 °C
- Relative humidity range 5-95% non-condensing
- Color Black RAL 9005
- Noise level at 1 m (ECO mode)
- DBA <48
- Standard equipment USB cable
- UPS Handling Wheels
There are no reviews
Data sheet
- Type:
- Uninterruptible Power Supply UPS
- Rated Power:
- 10000VA
- Active Power:
- 10000W
- Endurance:
- 10 minutes
