UPS Riello Sentryum Compact S3M CPT 10KVA three/three phase DS3TK10CS100RUA

Riello
RIE DS3TK10CS100RUA 8023251008085

UPS Riello Sentryum Compact S3M CPT uninterruptible power supply:

  • Power output Watt: 10,000 WATT
  • Serial Rs-232 C: Yes
  • Network card: No
  • Format: Tower
  • Power output Va: 10.000 Va
  • Network card included: No
  • Autonomy 20000 minutes
  • Usb: Yes
Do you have questions about this product or did you not find what you were looking for? Ask us!

UPS Riello Sentryum Compact S3M CPT 10KVA three/three phase DS3TK10CS100RUA

€5,645.45
€5,645.45

UPS Riello Sentryum Compact S3M CPT 10KVA three/three phase DS3TK10CS100RUA

€5,645.45
Tax included
Items Available: 2
Further availability of the manufacturer

UPS Riello Sentryum Compact S3M CPT 10KVA three/three phase DS3TK10CS100RUA

€5,645.45

Buy it within and receive it from Friday, 15 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

INPUT:

  • Rated voltage V 380 / 400 / 415 three-phase + N
  • Rated frequency Hz 50/60
  • Voltage toleranceV 400 ±20% at full load
  • Frequency toleranceHz 40/72
  • Power factor @ full load 0.99
  • Current distortion THDI ?3%.

BYPASS:

  • Rated voltage
  • V 380 / 400 / 415 three-phase + N
  • Number of phases 3 + N
  • Voltage Tolerance (Ph-N)
  • V from 180 (adjustable 180-200) to 264 (adjustable 250-264V) referred to neutral
  • Nominal Frequency
  • Hz 50 or 60 (selectable)
  • Frequency tolerance ±5% (selectable)
  • Bypass overload 110% infinite, 125% for 60 min, 150% for 10 min.

OUTPUT

  • Rated power kVA 10
  • Active power kW 10
  • Power factor 1 up to 40 °C
  • Number of phases 3 + N
  • Rated voltage V 3801 / 400 / 415 three-phase + N (selectable)
  • Rated frequency Hz 50 or 60
  • Frequency stability in battery operation 0.01%.
  • Voltage stability ±1%.
  • Dynamic stability EN 62040-3 Performance class 1 with non-linear load
  • Voltage distortion <1% with linear resistive load / ?1.5% with non-linear load

BATTERIES

  • VRLA type AGM/GEL/NiCd/Li-Ion/SuperCaps
  • Charging method One level, two levels, cyclic charging (selectable).

GENERAL SPECIFICATIONS:

  • Weight without batteries
  • kg 48-72-103
  • CTP Dimensions (WxDxH)
  • mm Compact: 280x840x700.

Communications:

  • Communications UPS status led bar

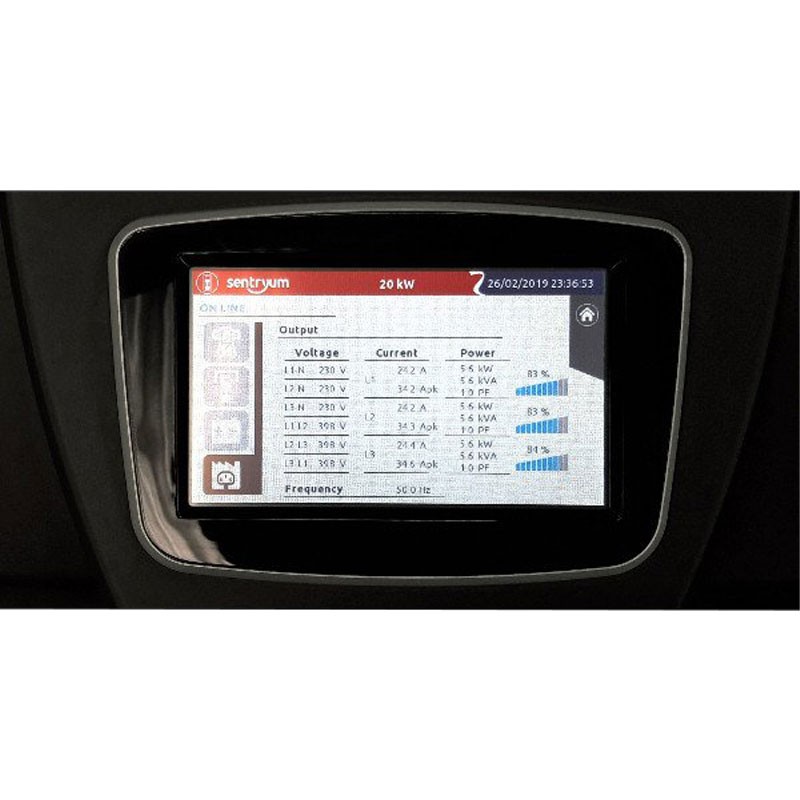

  • Graphic touch screen display
  • 2 slots for communication interface
  • USB
  • RS232
  • Contact interface with 5 input and 4 output relays with optical isolation.

Features:

  • Ambient temperature for the UPS 0 °C to +40 °C
  • Recommended temperature for battery life +20 °C to +25 °C
  • Relative humidity range 5-95% non-condensing
  • Color RAL 7016 Anthracite gray
  • Noise level at 1 m
  • dBA ±2 SMART ACTIVE <40
  • IP Class IP20
  • SMART ACTIVE efficiency Up to 99%.

There are no reviews

Data sheet

Type:
Uninterruptible Power Supply UPS
Rated Power:
10000VA
Active Power:
10000W
Endurance:
20 minutes
