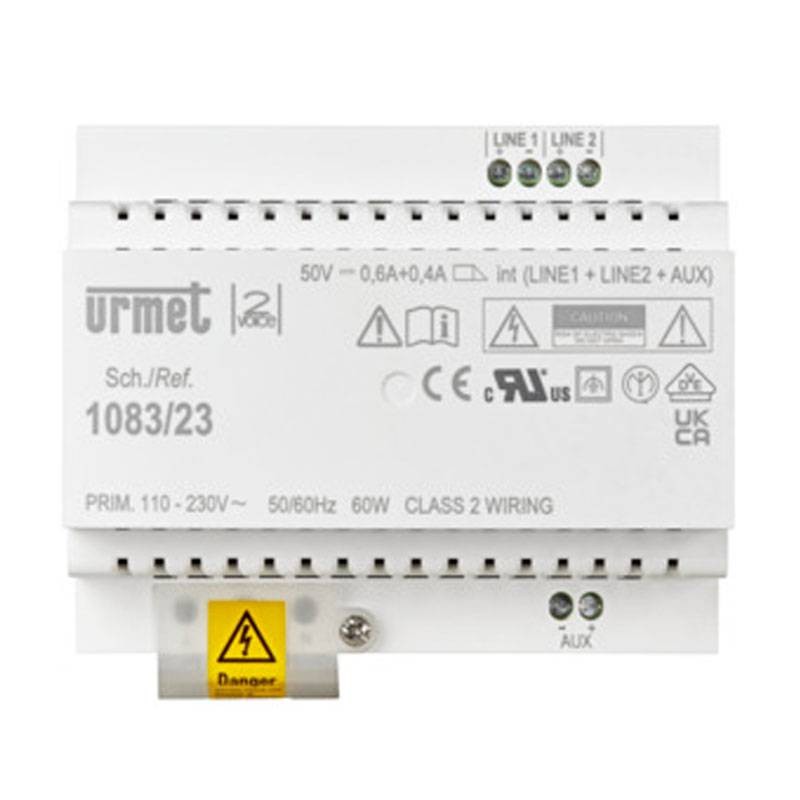

Urmet 2 Voice riser power supply 60W 110-230 Vac 1083/23
UTD 1083/23
8021156069118
Urmet 2 Voice riser power supply with the following features:
- Power supply: 110-230 Vac - 50/60 Hz
- Power: 60 watts
- Operating temperature: -10/+50 degrees
- Dimensions: 108x60x90 mm (6 DIN modules)
With the 1083/23 riser power supply unit, video intercom systems of up to 32 users per column (using a distributor or column interface) can be realized for up to 12 columns, each with up to 2 secondary call stations.
Urmet 2 Voice riser power supply 60W 110-230 Vac 1083/23
€132.39
€132.39
Tax included
Tax included
Items Available: 23
Frequently bought together
With the 1083/23 riser power supply, video intercom systems of up to 32 users per column (using a distributor or column interface) can be realized for up to 12 columns, each with up to 2 secondary call stations.
There can also be up to 2 main call stations and a concierge switchboard, if any. The following are the features of the 2Voice video intercom system, using the 1083/23 power supply only in the installations.
Please note: It is possible to use the 1083/20A power supply in installations where the 1083/23 column power supply is also present.
System:
- Ability to manage up to 2 main door stations in automatic switching
- Ability to manage up to 12 columns, each with up to 2 secondary call stations
- Possibility to manage up to 80 internal intercom stations in single column systems with only one power supply unit
- Ability to manage up to 48 video intercom apartment stations in single-column systems with a single power supply unit
- Ability to manage up to 56 intercom apartment stations per column with a single power supply unit
- Ability to manage up to 32 video door phone apartment stations per column with a single power supply unit
- Possibility to manage up to 4 apartment stations in parallel for each user
- Possibility to connect a concierge switchboard to the system with the classical performances: day/night function, storage of missed calls
- Only 2 non-polarized wires in each part of the system
- No local power supply required on call stations or indoor stations
- Branch wiring via 4-user distributor or in-out directly to device terminals
- Short-circuit protection in shunt
- Programming: simplified by dip-switches for Indoor and Outdoor Posts by pushbuttons; via Bluetooth/ WiFi for Call Modules
- Electric lock activation from all Indoor Posts, with programmable activation time and mode (free/under secret)
- Activation of a second lock (driveway) from all interior posts
Video Surveillance and Access Control:
- Ability to directly connect up to 2 cameras on call stations, which can become 5 with the help of an optional video switch (only if call stations are set up)
- Indication of entrance door remaining open via LED on indoor stations
- Possibility of programming on the call modules a 4-digit door opener code (without time zone) for each user and general codes with time zone
Call stations:
- Can be push-button (Door stations) or with name repertoire (Call modules)
- Standard color camera for video intercom call stations
- Entrance door sensor left open
In the case Button call stations (Door stations), possibility to connect up to 80 buttons, using button module devices for Alpha button panel and up to 64 buttons using 4 button expansion devices for Sinthesi button panel
Indoor stations:
- Video intercom indoor stations with color or black/white vision, hands-free or handset
- Melody for all intercom calls selectable by user from 5 possible
- Differentiated intercom call rings (on the same melody) according to the origin (from main, from secondary, from intercom apartment station, from switchboard)
- Cyclic auto insertion function on call stations and any control cameras (only if call stations are set up)
- Call to concierge switchboard
- Totally free programmable intercom call in column or apartment
- Floor call button with differentiated melody, selectable by the user from 5 possible
- Possibility of connecting an additional self-powered ringer or call repeater relay or wireless call repeater to the apartment station for repeating all calls
- Display of the open status of the entrance door
Additional functions:
- Possibility of switching on staircase lights via special decoding that can be piloted from apartment stations, door stations and the switchboard
- Possibility of connecting a video door phone answering machine in each column
- Piloting speech repeater device for the hearing impaired, in accordance with European law
