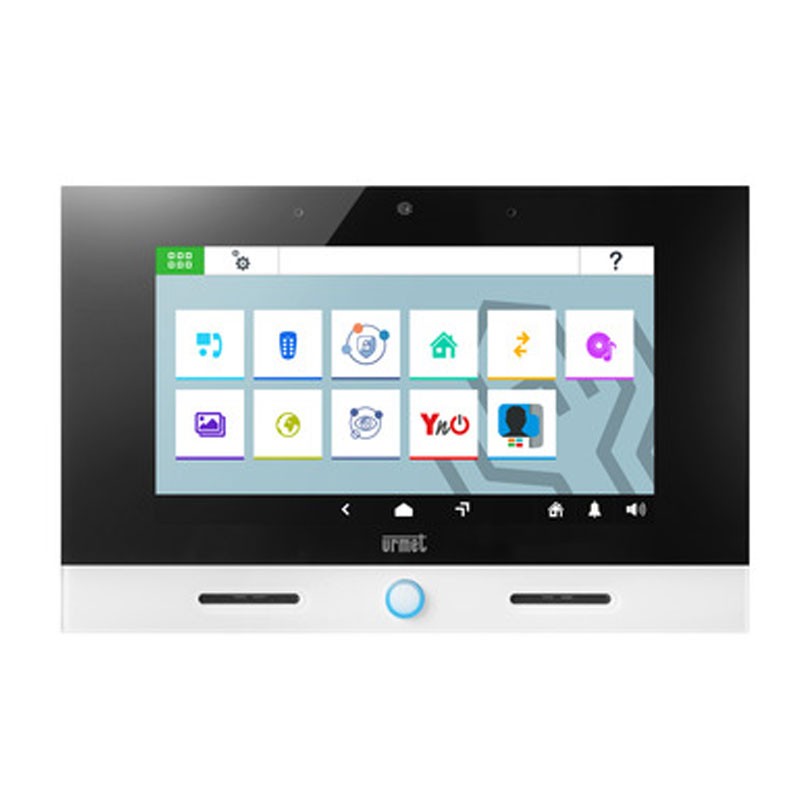

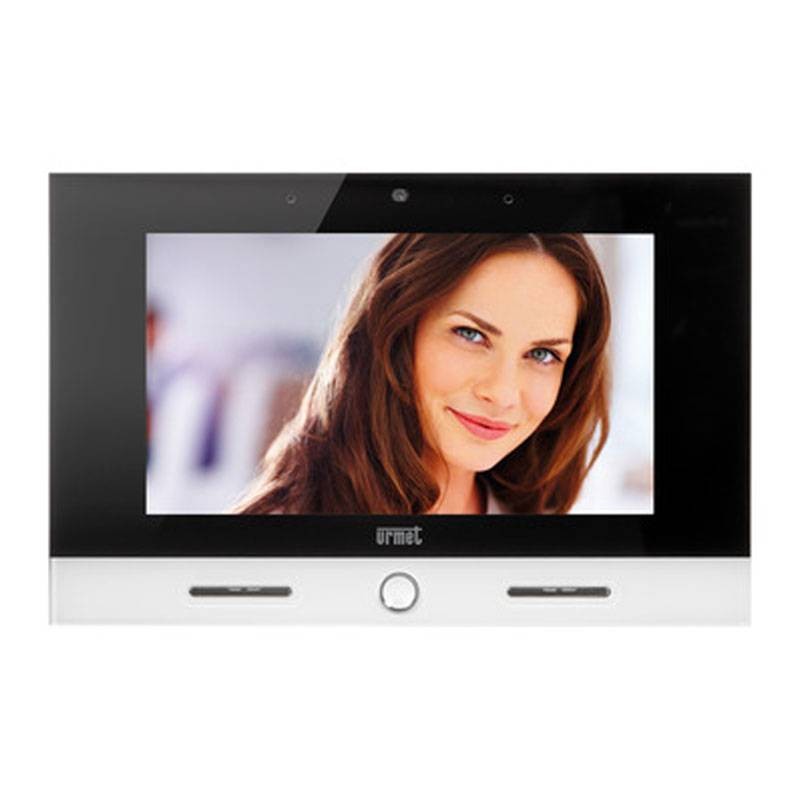

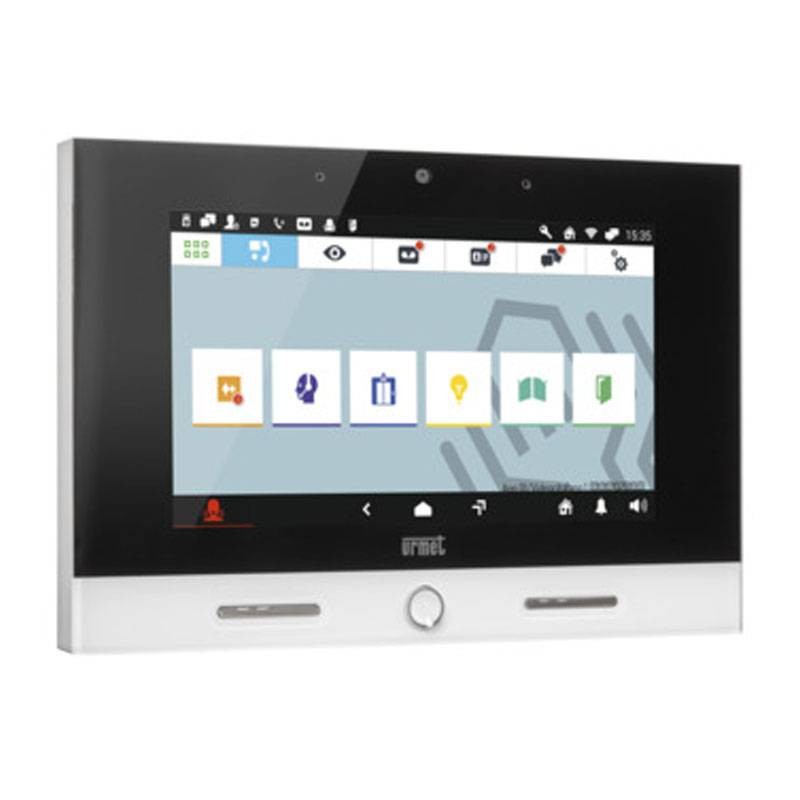

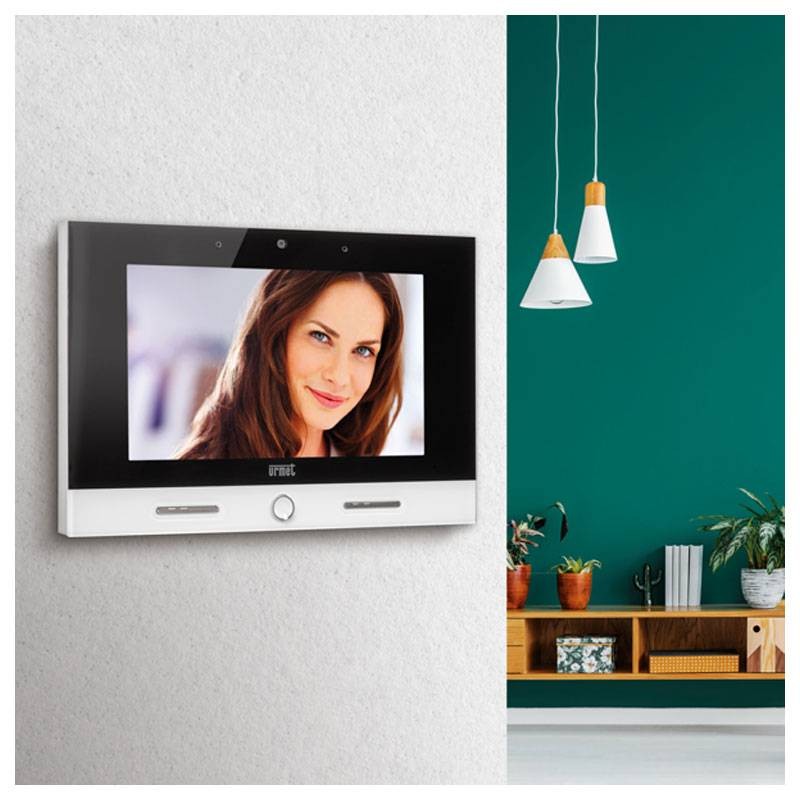

VOG7 is Urmet's latest generation 7 touchscreen video intercom for the 2-wire 2VOICE system. Thin and technological, it can be either wall-mounted or flush-mounted.



Strengths:

• Integrates advanced functions such as YOKIS home automation control, display of video surveillance cameras connected to the system, management of intrusion detection system, proximity key reading for easy access, and many more
• Equipped with the video answering machine function with which to store short clips of unanswered calls, it also allows you to forward calls to your smartphone on the Urmet CallMe app
• Equipped with input for out-of-door call button on the floor and output for repeating calls to an external ringer
• Timed and self-resetting MUTE and panic call function to PBX or smartphone
• User interface selectable from standard, simplified for the elderly, and swipe for the blind
• VOG7 provides feature management using voice commands or gestures
• Android operating system allows continuous updating of the device to new apps from the Urmet group
• Power supply 1723/2 included



The video intercom Ref.1760/31 or /33, is a dedicated device for the 2Voice system that can operate as:

• Advanced video door phone
• Yokis home automation terminal
• Terminal for displaying video surveillance cameras
• Terminal for displaying the status of the burglar alarm control panel
• MIFARE access control
• Urmet application manager (Urmet Secure, YnO, CCTV, IUVS)



The main features of the device employed as a video intercom terminal are:

• 7 (Wide Angle) TFT-LCD color screen.
• Ability to activate video door phone functions via gesture commands on the IR sensor or via voice commands
• Call forwarding function to smartphones and tablets
• Ability to customize the ringtone by being able to choose from 5 different types
• Possibility to adjust the ringer volume
• Ability to record short audio messages (POST-IT up to 32 messages)
• Video answering machine function (up to 32 messages)
• User address book for intercom calls (up to 32 users, add additional 32 users in address book with lapp 2Voice Installer Tools)
• Door open signaling
• Screen cleaning function
• MUTE function
• Hands-free or push-to-talk mode (Push to talk mode): Hands-free: one press of the speech button activates the conversation and a second press deactivates it; Push to talk: when the speech button is held down you can talk from the indoor station while when the button is released you can listen



The video intercom comes with the local power supply that comes with the product.



Features:

• Supply voltage (LINE IN): 36 ÷ 48 V
• Power consumption (LINE IN): 48 V
• Idle: < 2 mA
• At steady state: < 15 mA
• Supply voltage (V+, V-): 24 V~
• Power consumption (V+, V-): . @ 24 V~
• Idle: < 200 mArms
• Steady state: < 400 mArms
• Maximum local power supply distance: 20m with cable sect. 1 mm2
• Wifi frequency bands 2400 ÷ 2483.5 MHz
• Yokis 2400 ÷ 2480 MHz
• Mifare 13.56 MHz
• Terminal output S+, S- . 25 mA @ 24 V
• Display 7 TFT
• Capacitive Touchscreen
• Resolution 1024 x 600 px
• Brightness 350 cd/m2
• Viewing angle (H/V) 160° / 160°
• Operating temperature -5 ÷ 45°C

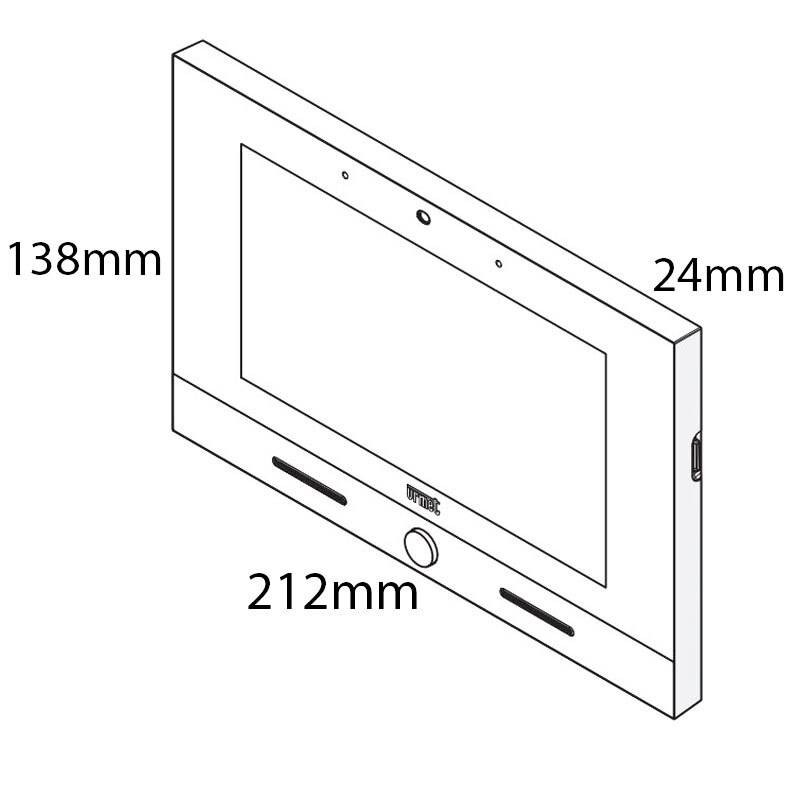

• Dimensions (WxHxD) 212 x 138 x 24 mm
