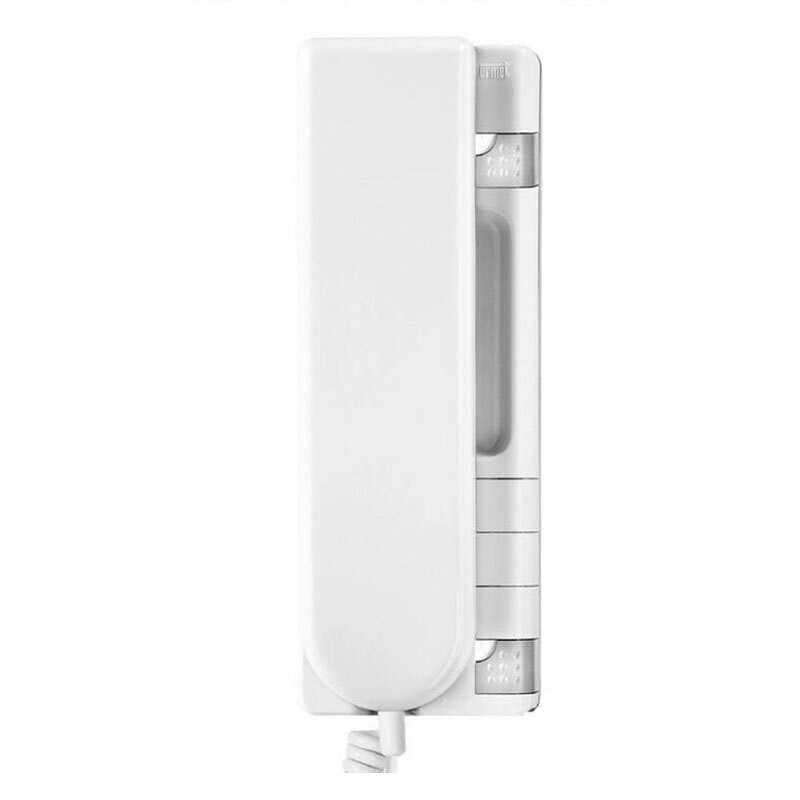

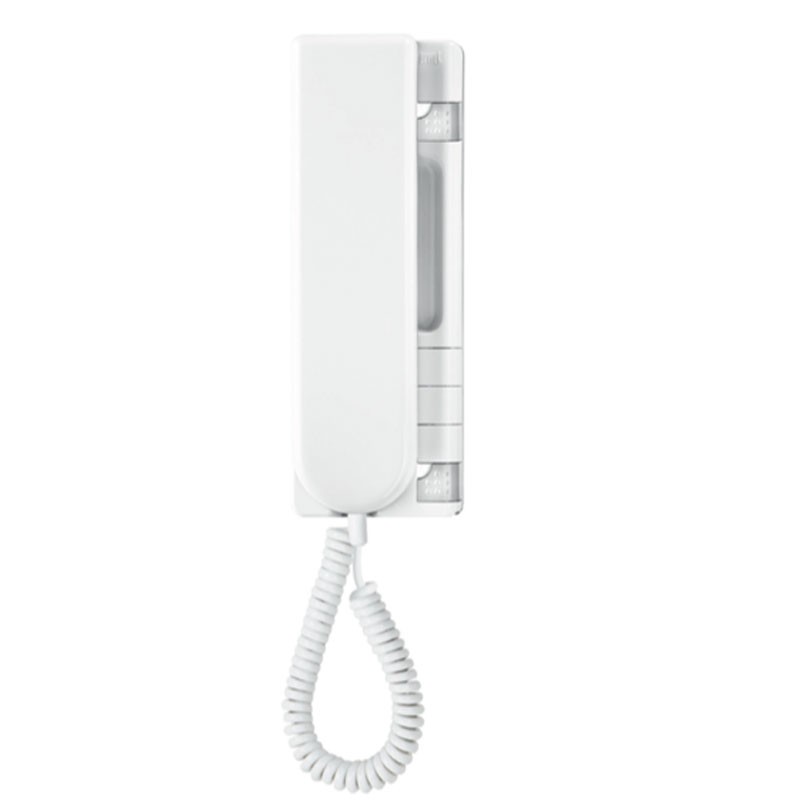

Urmet universal intercom 4+N or 1+N 1130/16
UTD 1130/16
8021156059874
Urmet universal intercom, suitable for retrofit on Urmet analog intercoms and analog intercoms of major brands on the market.
Usable for installation in 4+n and 1+n systems. Features traditional call on buzzer or electronic call on handset speaker.
The Urmet 1130/16 intercom allows us to repair analog intercom systems, both traditional and electronic call. This is why it is considered "universal." This intercom is equipped internally with two systems for receiving the call from the door station. These are:
- The electromechanical ringer, which enables us to receive calls in so-called "traditional" systems.
- The electronic circuit, which enables us to receive calls in so-called "electronic" systems.
Urmet universal intercom 4+N or 1+N 1130/16
€33.82
€33.82
Tax included
Tax included
Items Available: 4184
: 419
Frequently bought together
Suitable for retrofit to Urmet analog intercoms and analog intercoms of major brands on the market.
The main features of the 1130/16 universal intercom are as follows:
- Installation in 4+n systems (5 audio fi les), in systems with only door stations (no systems: intercom, intercom with door station or with unifi lare switchboard mod. 604), in 1+n systems (2 wires) with any model of push-button panel
- Possibility to have traditional call on buzzer or electronic call on handset loudspeaker
- Possibility of adjusting the volume of incoming speech (handset speaker)
- Possibility to adjust the volume of outgoing speech (handset speaker).
Features and Benefits:
- Ideal for replacements and repairs of existing analog systems
- Compatible with the majority of intercoms on the market
- Can be used for installation in 4+n systems (5 audio wires) and in 1+n systems (2 wires)
- Features traditional call on buzzer or electronic call on handset loudspeaker
- Door opener button and additional button for additional services
- Incoming and outgoing speech volume adjustment
- Electronic or mechanical call
Installation:
- Identify the apartment station code and the type of system used based on the number of wires connected: 5 wires for 4+n system, 2 wires for 1+n system
- Before disconnecting and disassembling the indoor station in use, note the colors of the wires and the numbers of the terminals to which they are connected
- Caution: sometimes there are fi li of the same color. Differentiate them with a distinguishing mark.
- Note this information on this document, in the equivalence table on page 22-24. Also check whether it is an indoor station with ringer made by buzzer (12 Vac) or electronic ringer made by loudspeaker.
It is not possible to install intercoms with jumpers configured for electronic call in systems with call on buzzer and vice versa. Refer to the following pages for programming.

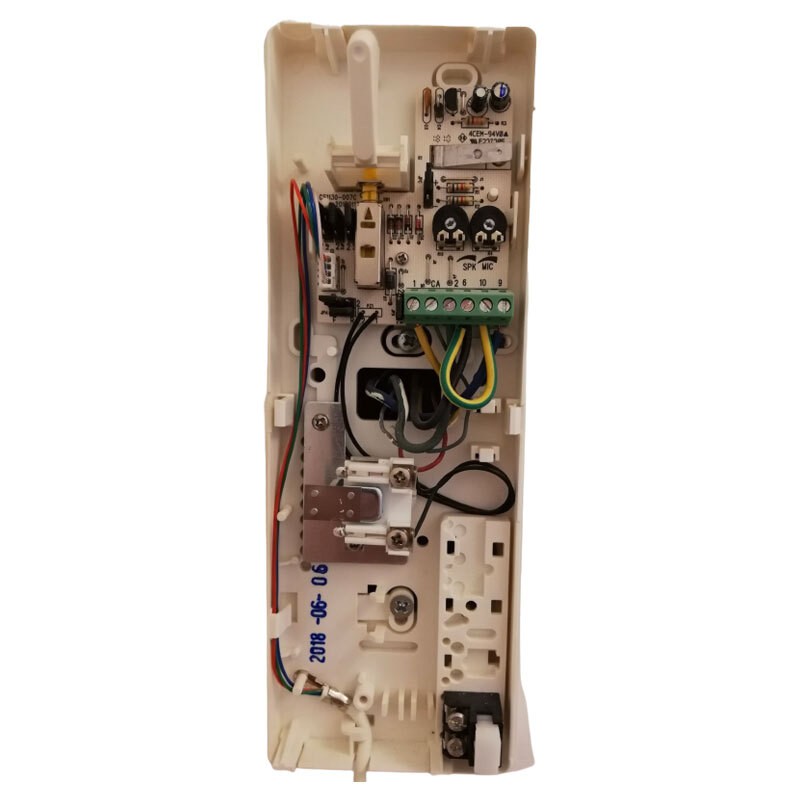

Description Operating terminals by system type:
4+n system (5 audio wires):
- 1 Incoming phonics (speaker)
- CA Buzzer or electronic call.
- 2 Outgoing phonics (microphone)
- 6 System ground
- 10 To be connected to terminal
- 6 of the intercom 9 Door opener
System 1+n (2 wires):
- 1 System ground connection
- CA Not connected
- 2 Speech/call/door opener
- 6 Not connected
- 10 Connect to terminal 1 of the intercom.
- 9 Connect to terminal 2 of the intercom.
Il prodotto è valido, ed arrivato in perfette condizioni.
Ottimo servizio, Rapidità e cortesia!
Buon rapporto qualità prezzo per questo Articolo
conforme a la commande, un classique du genre
Ottimo rapporto qualità prezzo. Prodotto in buone condizioni
Tutto perfetto. Ottimo rapporto qualità/prezzo!
Prodotto secondo le aspettative. Con Urmet mai alcun problema.
Non c'è molto da dire, sono stati addirittura meglio di quello che pensavo, consegnando prima di quello che immaginavo. Non so se dipende da elettronews o da chi loro si servono per consegnare. Nelle note ho scritto che il citofono (che ho comprato da loro) di casa mia non funziona, ma lo spedizioniere non sapeva nulla. L'unico corto circuito.
Citofono universale Urmet 1130/16 di facile installazione.
Con un tutorial ho smontato il vecchio e montato il nuovo citofono da sola. Funziona benissimo.
Data sheet
- Type:
- Intercoms
- System:
-
2-Wire
5-Wire
Universal
