Urmet one family intercom kit with Mirò and Sinthesi 1150/301
UTD 1150/301
8021156054480

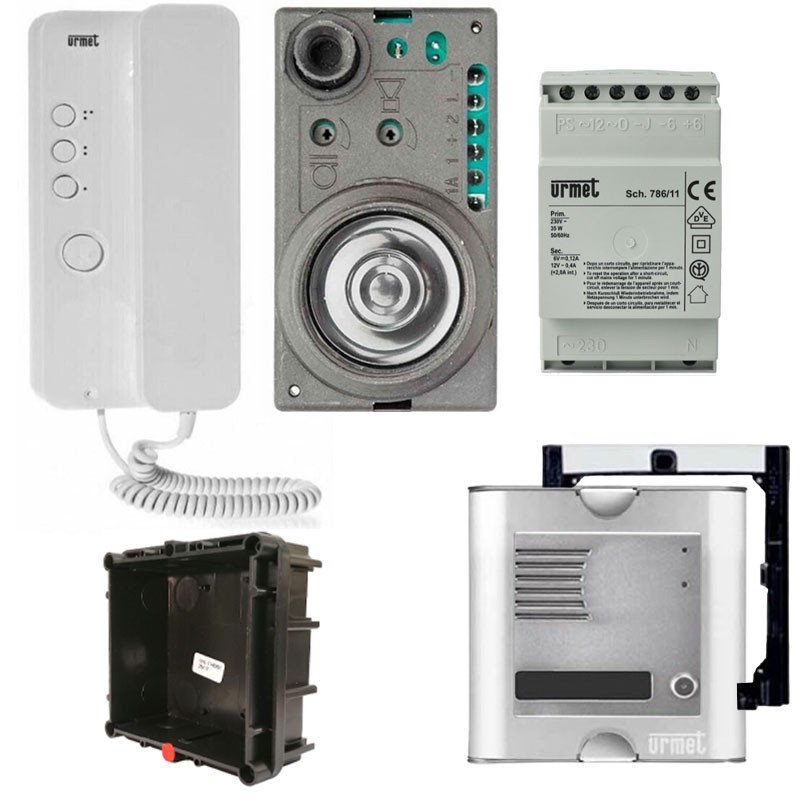

Urmet Citoset V1 one-family intercom kit comprising:

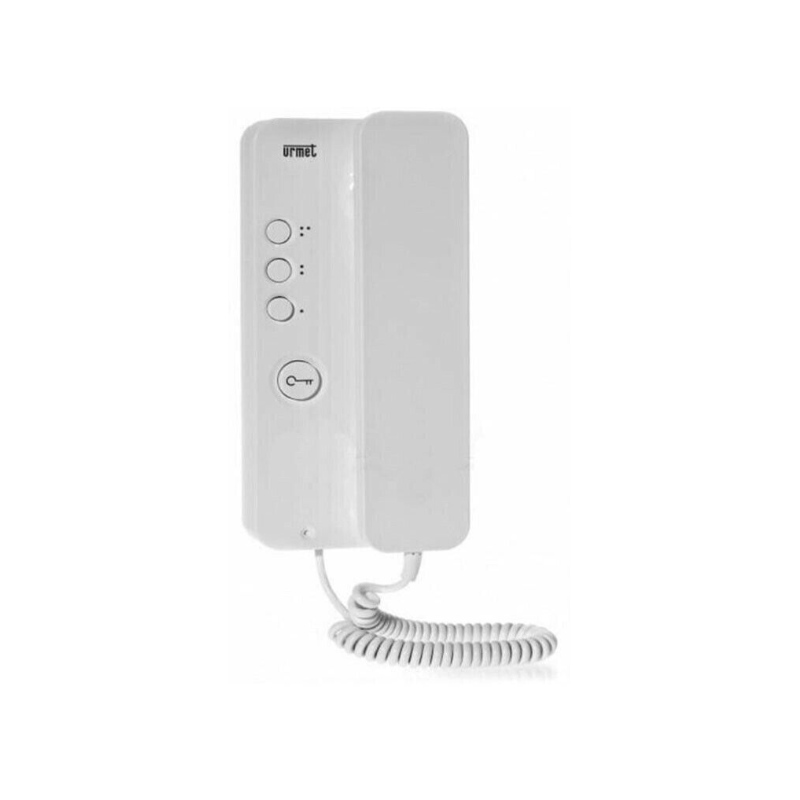

- 1 Mìro intercom code 1150/1 with additional button

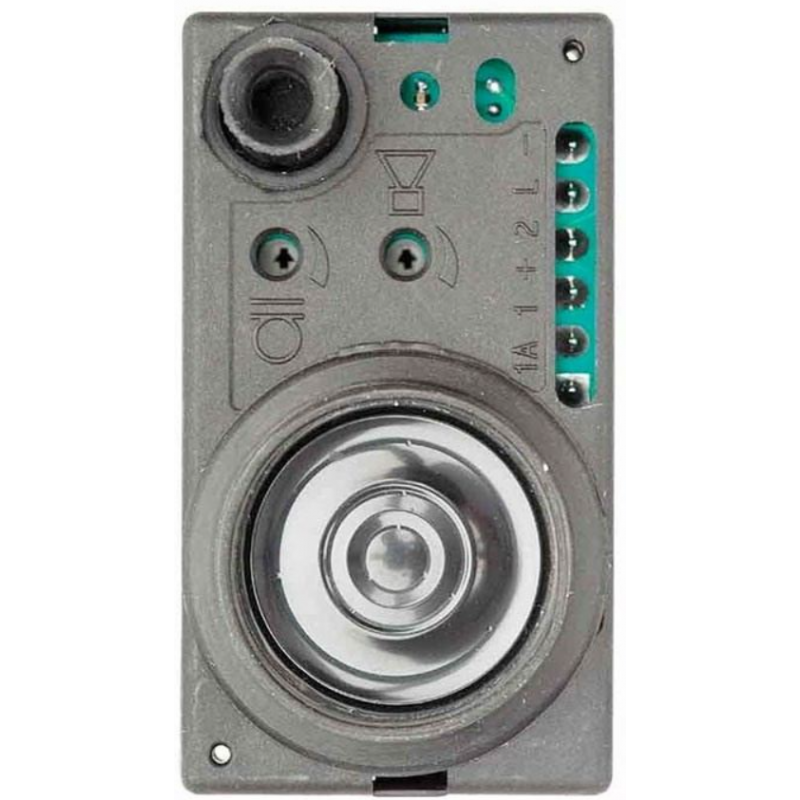

- 1 amplified door station with call feedback code 1145/500

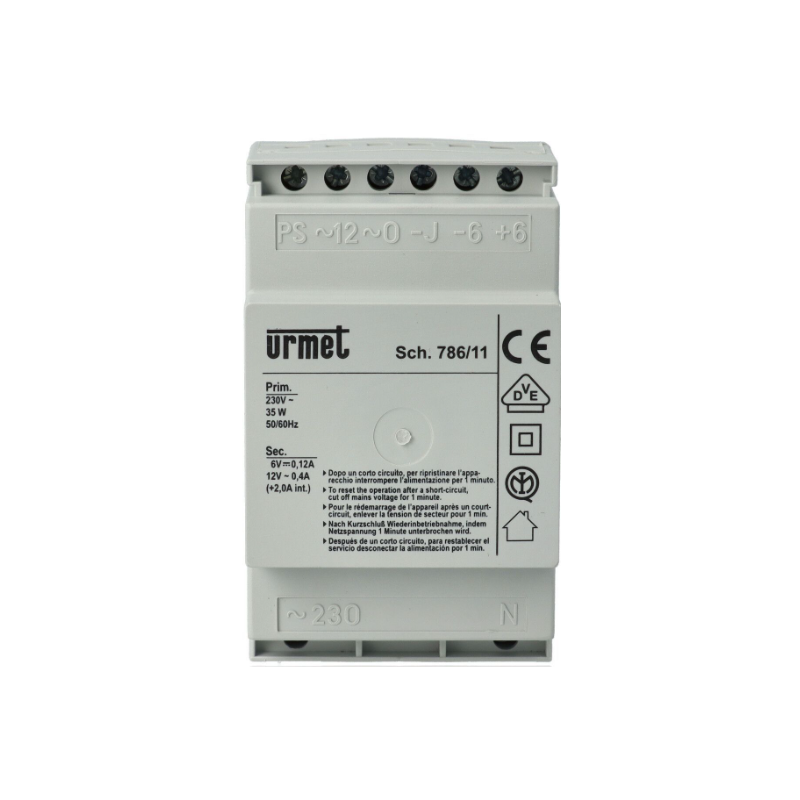

- 1 power supply unit code 786/11 with boosted generator

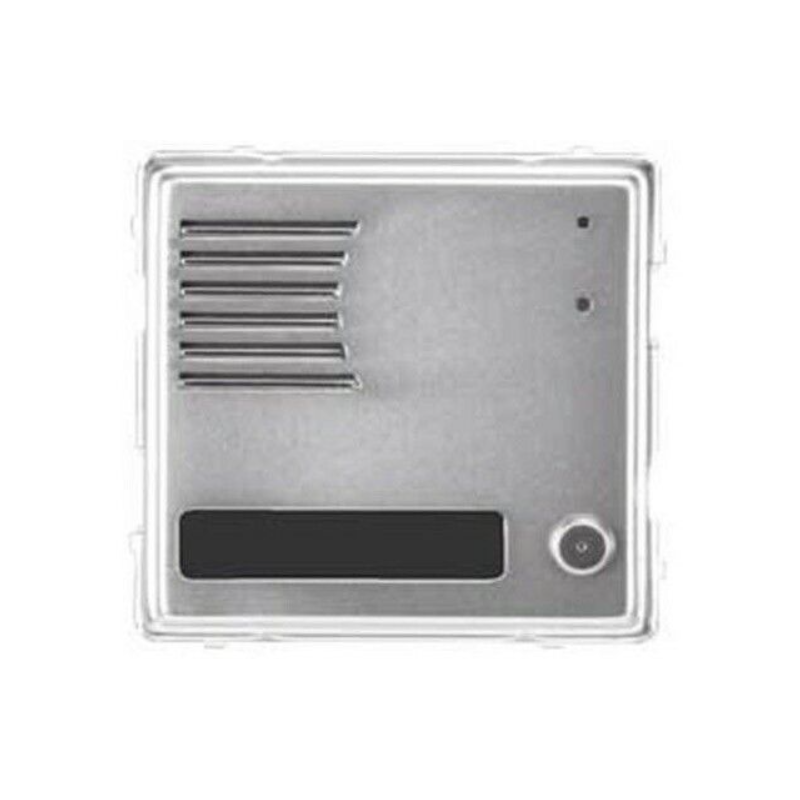

- 1 Sinthesi S2 module code 1148/21 with LED name tag backlighting and P.E. ready

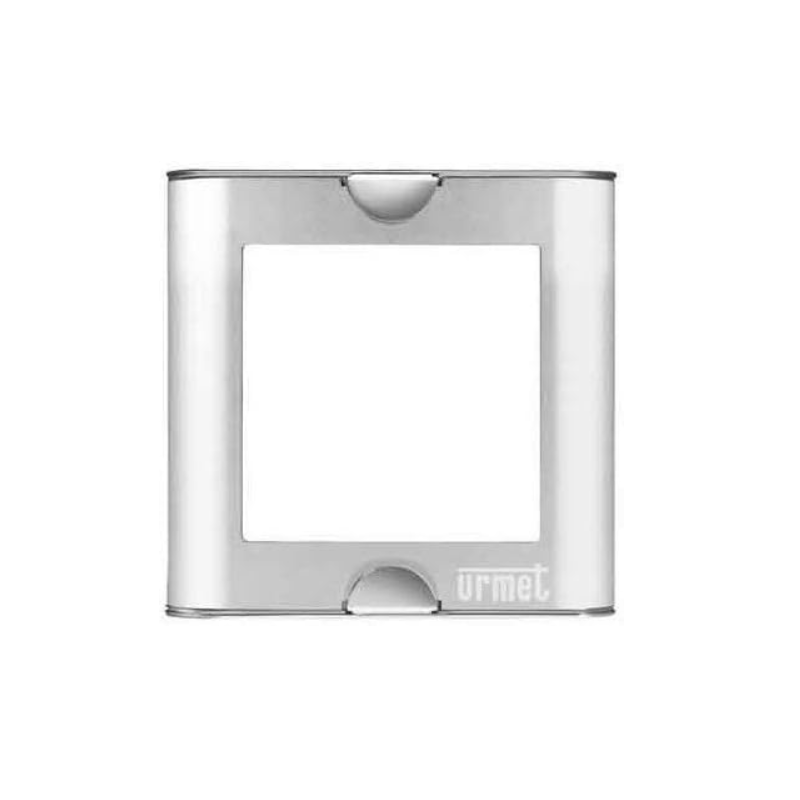

- 1 frame with module holder code 1148/61

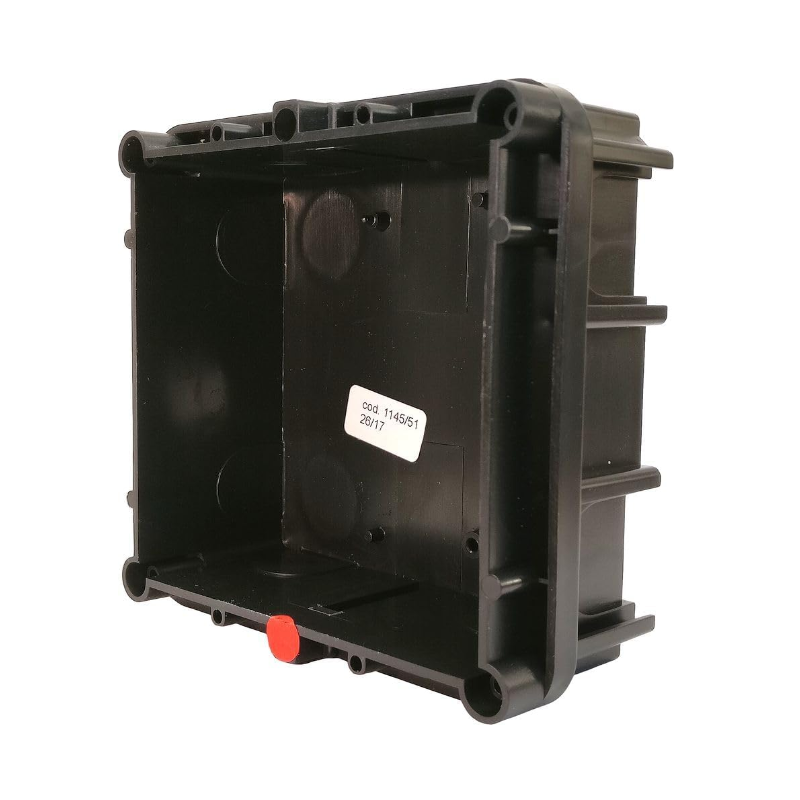

- 1 flush-mounting box code 1145/51
This kit is expandable.
€185.37
€185.37
Tax included
Tax included
Items Available: 66
: 19
4-wire plus neutral system: The external push-button panel is made entirely of aluminium with an illuminated name-button.
The kit is expandable.
Features:
Size: (W x H x D): 90 x 220x 50 mm
Colour: white
System: 4+n audio with electronic call
Power supply: Din modules: 3
Dimensions:(H x W x D) 61 x 54 x 89 mm
Approval: IMQ-CE-VDE, in compliance with DIN and CEI EN 60065 standards
Power supply:220Vac 50/60Hz
Max absorption: 150 mA
Note generator frequency: F1 960 -1440 Hz, F2 600 - 900 Hz
Note generator output: 8Vpp min
Transformer power: 28 VA
Dissipated power after one hour of operation: 4.2W
Phonic circuit power supply: 6Vdc @ 0.12A
Power supply for intercommunicating phonic circuit: 3.5-6.5 Vdc @ 0.12A
Power supply for electric lock circuit: 12 Vac @ 2 A
Max. no. of backlit cards with leds: Sinthesi S2: 40; K-steel: 8 - Max. no. of 12Vac 3W bulbs: 2
Sinthesi module:
- Name tag size (L x H) 67 x 12,5 mm
- Frontal treatment:anodized aluminium
- Module size (H x W) 90 x 90 mm
- IP 42 Protection
There are no reviews
Data sheet
- KIT: Intercom Kits
- Model: Single-family house
- System: 5-Wire
