Urmet two-family intercom kit With Mirò and Sinthesi 1150/302

Urmet
UTD 1150/302 8021156054497

Urmet intercom kit 4+n system two-family model consisting of:



  • 2 Miro intercoms, 1 button, white, 4+n system code 1150/1
  • 1 Audio door station, Sinthesi, 4+n system code 1145/500
  • 1 power supply for intercom system, 2VA-230V code 786/11
  • 1 Front module for audio door station, 2 buttons, Sinthesi S2 code 1148/22
  • 1 Wall cover frame with frame, 1 module, Sinthesi S2 code 1148/61
  • 1 Plastic flush mount box, Sinthesi, 1 module code 1145/51



The kit is expandable in terms of the number of buttons and users.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Urmet two-family intercom kit With Mirò and Sinthesi 1150/302
€203.83
€203.83

€203.83
Tax included
Items Available: 86
Further availability of the manufacturer
€203.83

Buy it within and receive it from Friday, 14 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Technical specifications of kit parts:

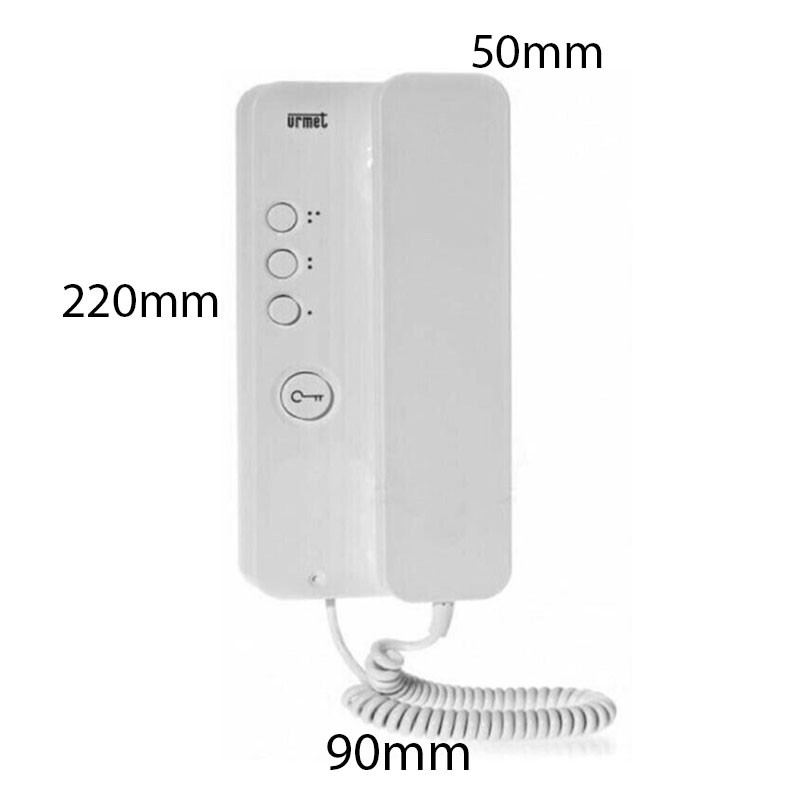

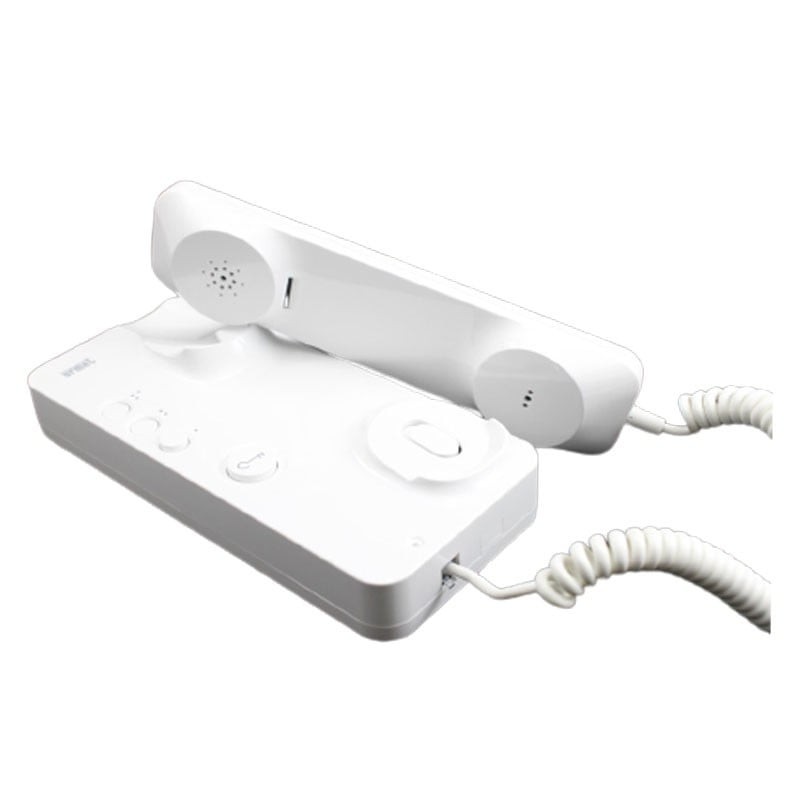

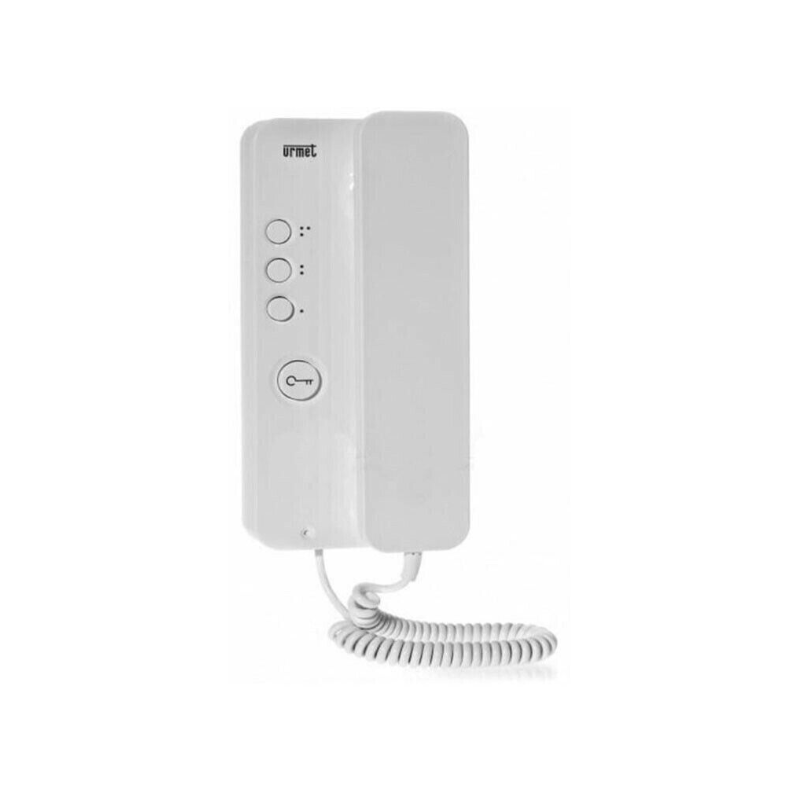

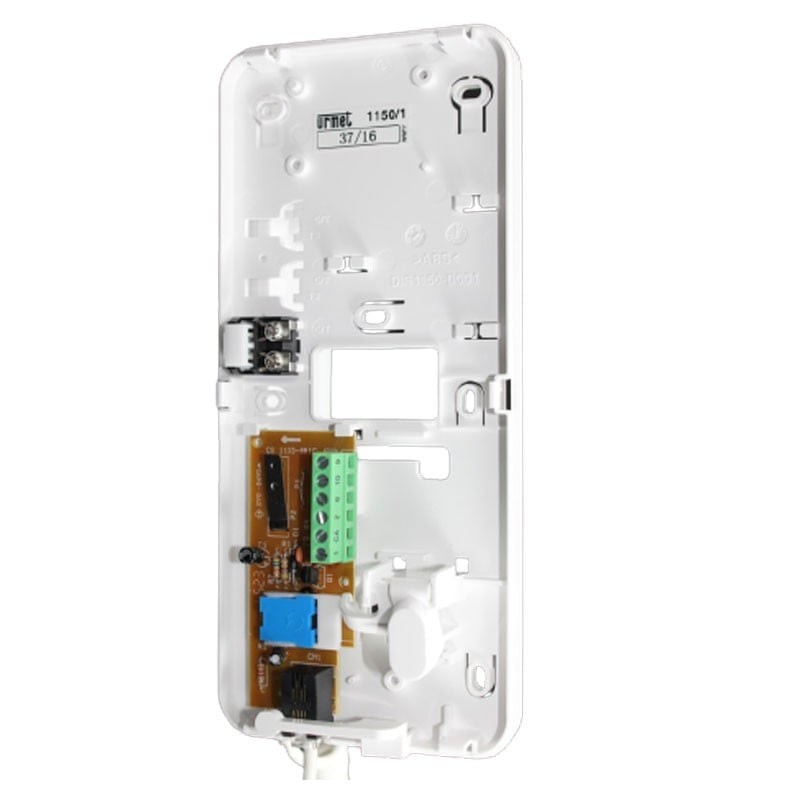

2 Mìro intercoms, 1 button, white, 4+n system code 1150/1: Size: (W x H x D): 90 x 220x 50 mm. Color: white, system: 4+n audio with electronic call. The intercom is equipped with a door opener button and is arranged for the insertion of 2 other independent buttons that can be used for intercom systems or auxiliary services (switching on staircase lights, secondary electric lock opening, etc.). Miro Aesthetics.

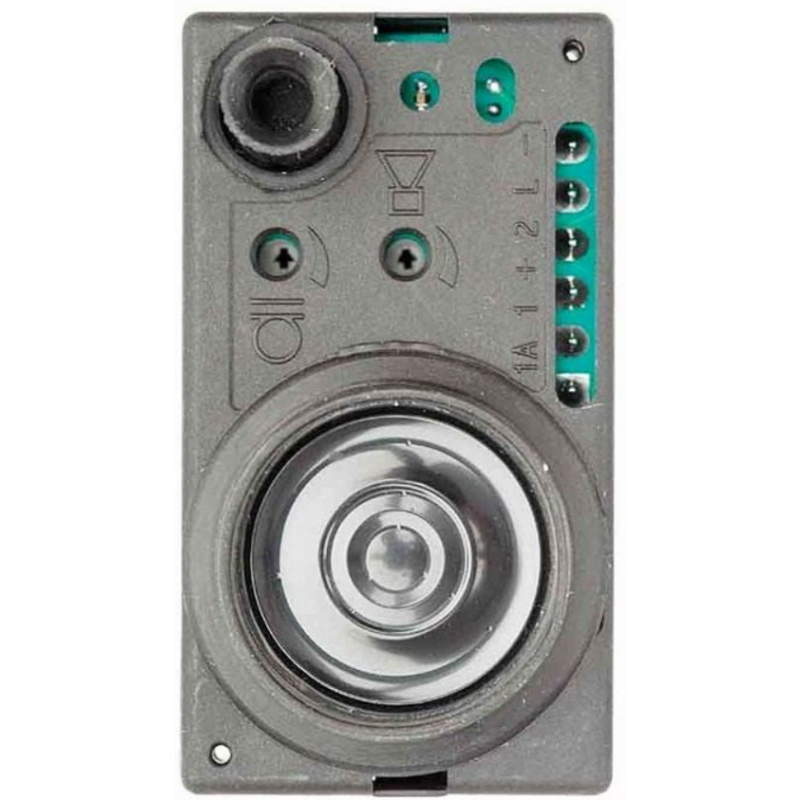

1 Audio door station, Sinthesi, 4+n system code 1145/500: Power supply: 6Vdc. Standby power consumption <15mA with active speech <80mA, speech adjustments: external max >90dB external max >100dB. The device must be mounted inside Sinthesi S2 and Sinthesi Steel faceplates prepared for audio door station in analog 4+N systems with electronic and traditional call, and allows internal and external audio volume adjustment and is equipped with LED indicator of forwarded call.

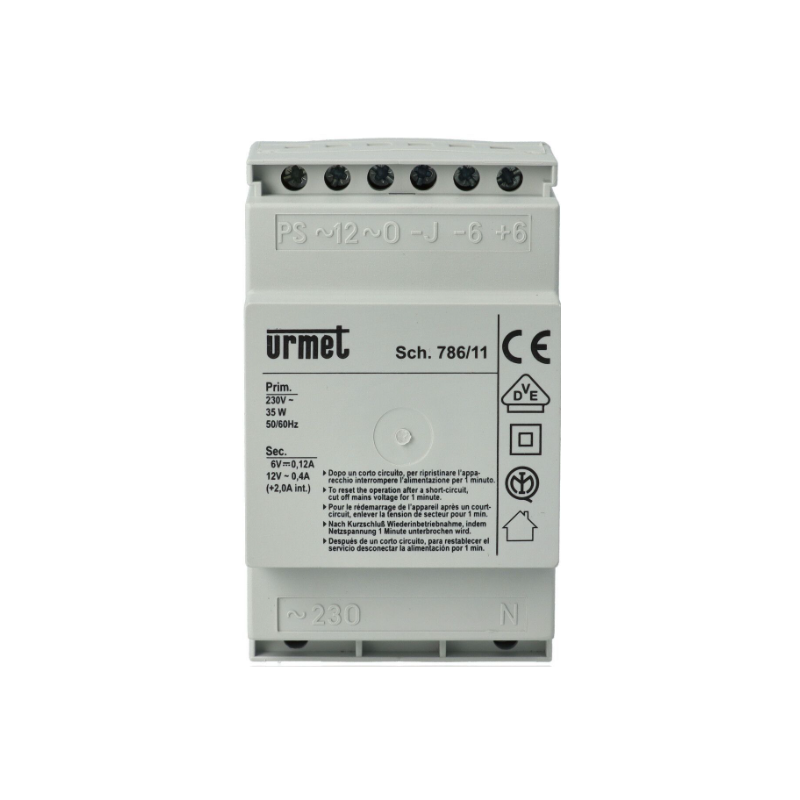

1 power supply for intercom system, 2VA-230V code 786/11: Power supply 230Vac 50/60Hz, Transformer power: 28 VA, Dimensions:(W x H x D) 54 x 61 x 90 mm (3 DIN modules). Power supply for 4+n audio systems with both traditional and electronic call. It is equipped with network protection in case of short circuit, 2 differentiated and enhanced call generators to call 4 electronic door phones in parallel without adding any additional device.

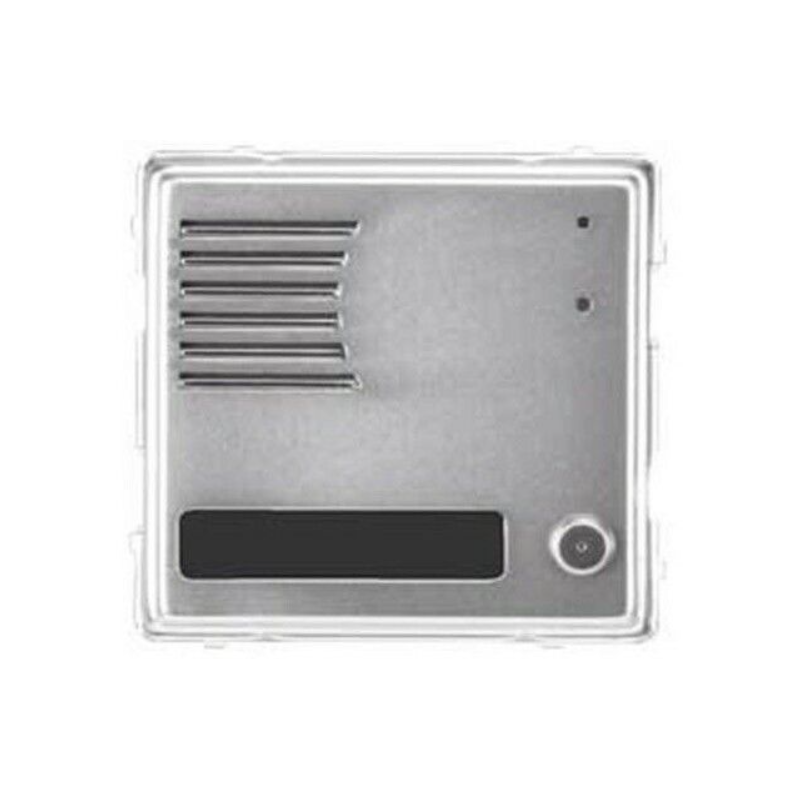

1 Module Front panel for audio door station, 2 buttons, Sinthesi S2 code 1148/22: Made of aluminum, Front panel for audio door station, 2 buttons, Sinthesi S2.

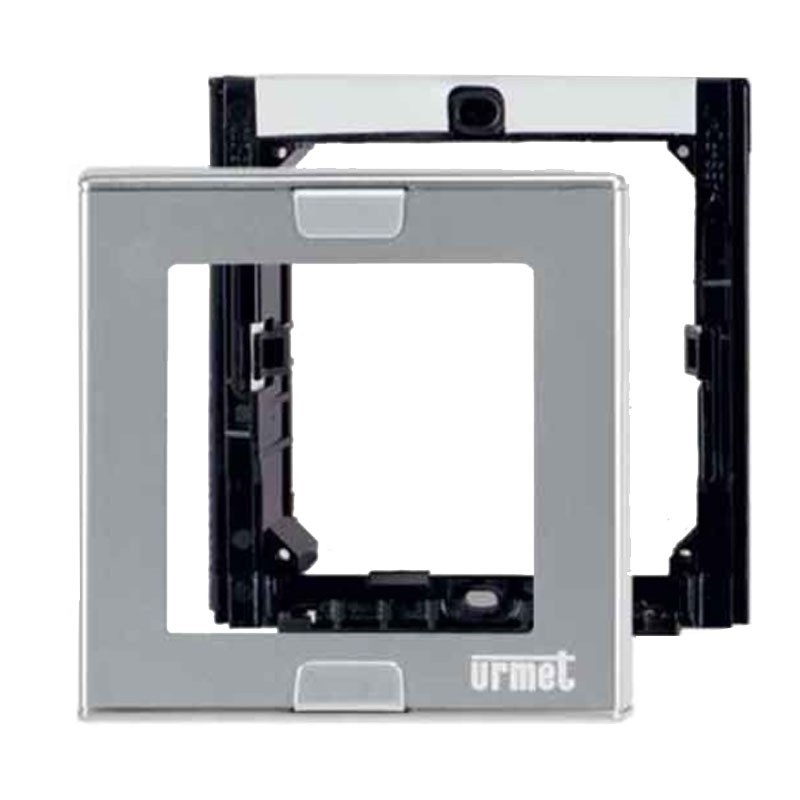

1 Wall cover frame with frame, 1 module, Sinthesi S2 code 1148/61: Made of aluminum, Attaches with two screws to the flush-mount box or to the box leaning against the wall.

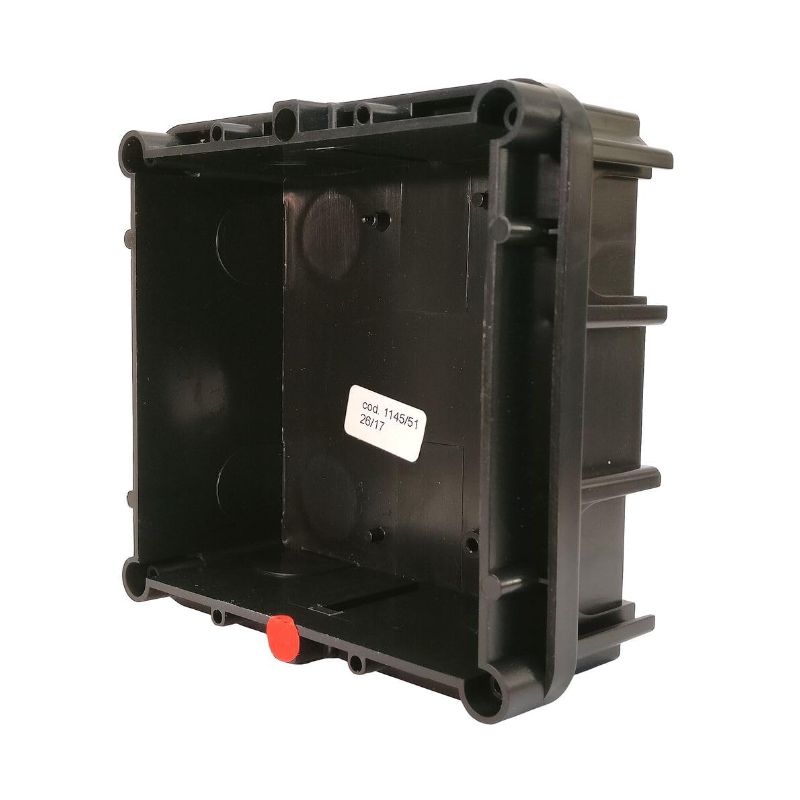

1 Plastic flush mount box, Sinthesi, 1 module code 1145/51: Made of black plastic material, size (W x H x D): 118 x 114 x 45 mm.

Quello che desideravo.

Read all reviews

Data sheet

KIT:
Intercom Kits
Model:
Two-family house
System:
5-Wire
