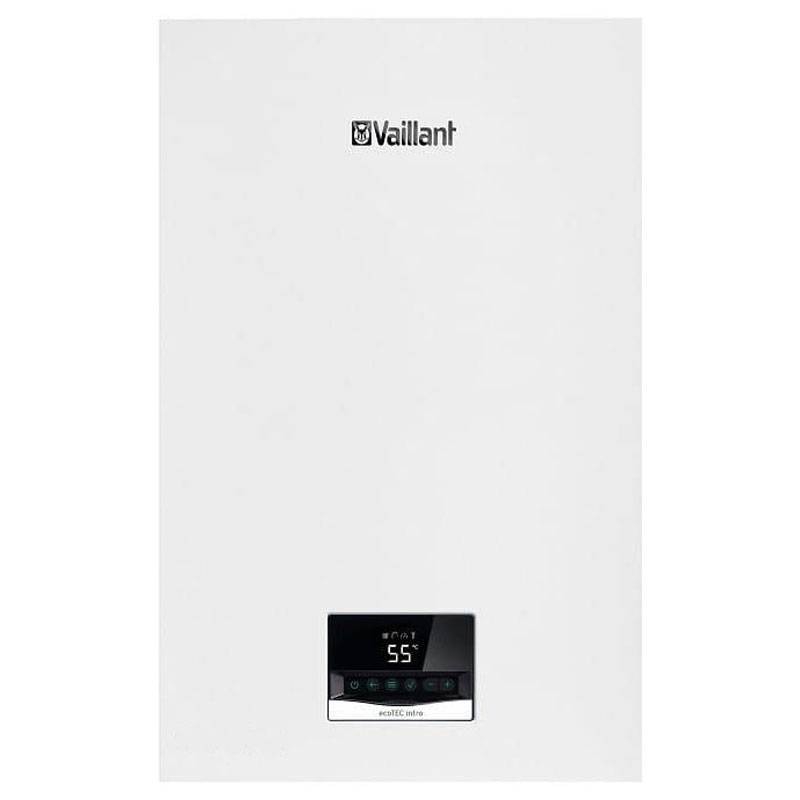

The new ecoTEC intro VMW condensing boilers (for heating and domestic hot water production) are available in 24 and 28 kW ratings, increasing the range of product choices within Vaillant's established range of condensing boilers. In fact, this product gives new users the opportunity to approach the world of condensing boilers offered by Vaillant as well, without going to the excessive cost of replacing the old boiler. ecoTEC intro maintains the focus on energy savings by mounting a high-efficiency modulating pump that minimizes annual electricity consumption, resulting in a positive impact on the bill.

Also in terms of gas saving Vaillant offers the new combustion technology, called fan push, where it is the fan that thanks to different levels of pressure exerted on the gas valve ensures the right ratio between combustion air and gas. The case of ecoTEC intro is simple and essential, the dimensions turn out to be extremely small which, however, does not affect or reduce the quality and efficiency of the product, guaranteed by Vaillant.

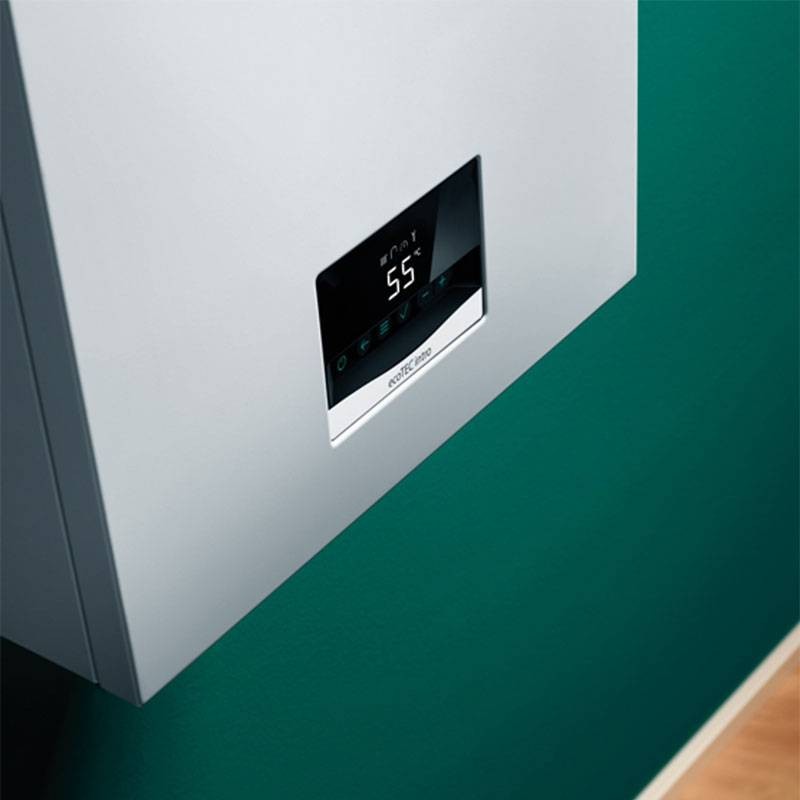

The front panel introduces an innovative touch screen interface of extreme simplicity with 6 buttons, black background display, and 2 digits in white with intermittent lighting. An additional e-bus connector has been added to the bottom of the boiler to allow connection to Vaillant temperature control units and thermostats.



These wall-mounted boilers are very easy to install thanks to its size (62.6cm height, 40cm width and 27cm depth) and low weight (about 26kg): these features make it ideal whenever replacement is needed.



ecoTEC intro is approved for outdoor installation down to -5°C and for installation inside built-in units (art. 0010030848) down to -5°C.



All components inside the product comply with ErP energy efficiency regulations, a guideline also espoused by Vaillant as an environmentally sensitive brand. This is all that the new ecoTEC intro can offer, plus a competitive price that does not affect performance.



Features:

• Allowable gas categories ll2H3P
• CE Number 0063CU3005
• Product side gas connection 1/2"
• Product-side heating supply/return fittings 3/4"
• Safety valve connection hose (min.) 15mm
• Condensate drain hose (min.) 14.2mm
• Air-flue duct connection 60/100 mm
• Methane gas connection pressure G20 2.0 kPa (20.0 mbar)
• Flue gas temperature max 89 ?
• Gas volumetric flow rate at P min (G20) 0.66 m³/h
• Gas volumetric flow rate with P min (G31) 0.65 kg/h
• Gas volume flow rate with P max in the heating mode (G20) 1.99 m³/h
• Gas volume flow rate with P max in the heating mode (G31) 1.47 kg/h
• Gas volumetric flow rate with P max in the domestic hot water mode (G20) 2.54 m³/h
• Gas volumetric flow rate with P max in the domestic hot water mode (G31) 1.86 kg/h
• Permitted installation types C13, C33, C43, C53, C83, C93, B23, B23P
• Nominal efficiency in part load operation (30%) 107.8 %.
• NOx class 6
• Nitrogen oxide emissions, weighted NOx (Hs) (G20) 27.11 mg/kW?h
• CO emission 137.2 ppm
• Net weight 25.6 kg.

Technical data power/load G20

• Rated heat output range P at 50/30 °C 6.6 20.0 kW
• Rated heat output range P at 80/60 °C 6.0 18.3 kW
• Rated heat output range P at 75/55 °C 6.0 18.3 kW
• Rated heat output range P at 60/40 °C 6.4 19.3 kW
• Maximum domestic hot water heat flow rate (Qmax) (Hi) 24.0 kW
• Flue gas flow rate in heating mode with P min 3.2 g/s
• Flue gas flow rate in the heating mode with P max 8.9 g/s
• Range of nominal heating heat flow rate 6.2 18.8 kW.

Technical data power/load (G31)

• Rated heat output range P at 50/30 °C 9.0 20.0 kW
• Rated heat output range P at 75/55 °C 8.1 18.3 kW
• Maximum domestic hot water heat output (Qmax) 24.0 kW
• Flue gas flow rate in heating mode with P min 4.0 g/s
• Flue gas flow rate in the heating mode with P max 9.1 g/s
• Range of nominal heating heat flow rate 8.4 18.8 kW.

Heating technical data

• Maximum heating flow temperature (factory setting - d.71) 75 ?
• Max adjustment range flow temperature 30 75 ?
• Max operating pressure (MWP) 0.3 MPa (3.0 bar)
• Nominal water flow rate (?T = 20 K) 788 l/h
• Approximate value of condensate volume in operation at rated load (pH value between 3.5 and 4.0) at 50/30 °C 1.89 l/h
• Residual pump head (with nominal amount of circulating water) 0.027 MPa (0.270 bar)
• Expansion tank content 8 l.

Technical data - Domestic hot water

• Minimum water flow rate 1.7 l/min
• Specific flow rate D (?T = 30 K) 11.5 l/min
• Minimum allowable pressure 0.03 MPa (0.30 bar)
• Maximum allowable pressure (PMW) 1 MPa (10 bar)
• Recommended supply pressure 0.3 MPa (3.0 bar)
• Flow limiter for cold water 8.0 l/min
• Hot water supply temperature range 35 55 ?

Electrical system technical data

• Electrical connection 230 V / 50 Hz
• Allowable connection voltage 195 253 V
• Fuse fitted (delayed) T2/2 A, 250 V
• Maximum electrical power consumption 90W
• Standby electrical power consumption 1.7 W
• Type of protection IPX5.
