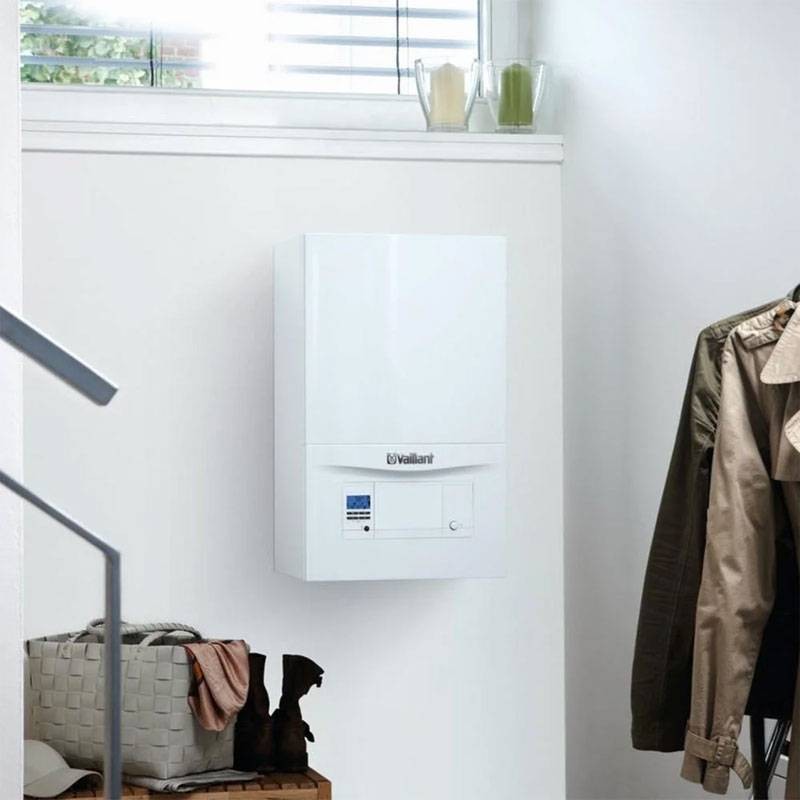

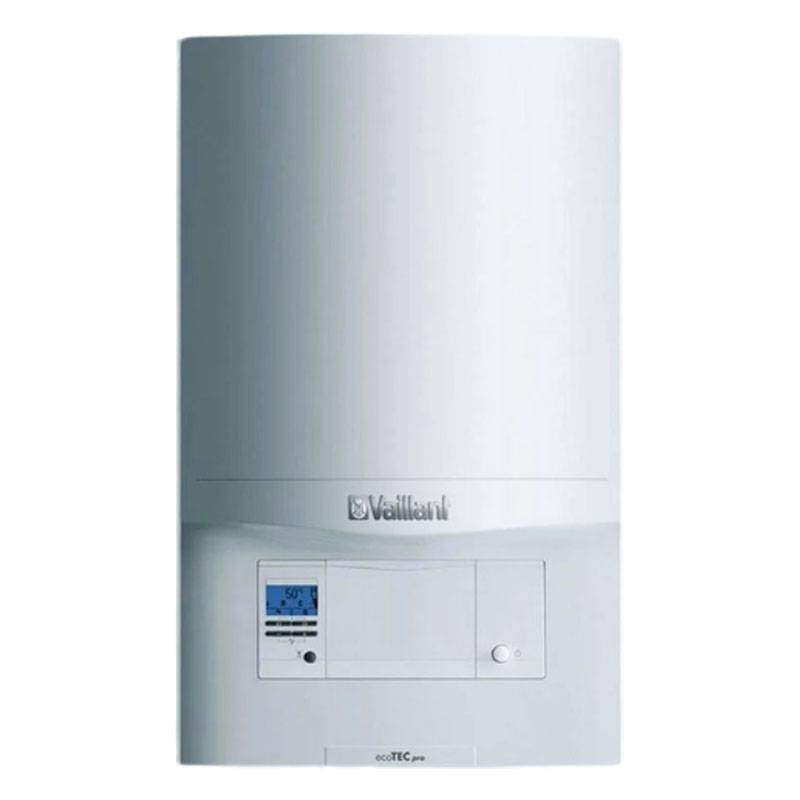

EcoTEC pro is the ideal boiler for Vaillant on Vaillant replacements: installation is quick and easy as is the adjustment of operating parameters.



The ecoTEC pro range includes: the combined version, the smart connectivity version in combination with sensoROOM connect, a version designed for installation in multiple flues, and two versions for installations in single flues.



EcoTEC pro CM is also the right choice for boiler replacement in multifamily complexes or for more complicated installations. In fact, Vaillant provides a range of products suitable for flue as well as multiple options in terms of dedicated boiler accessories: a flue pressure switch, combined with electronics, self-adjusts the value to be set for the length of the vertical ducting so as to properly evacuate exhaust fumes.



ecoTEC pro CS models are equipped with a dedicated kit, included in the supply, consisting of a flue gas check valve, 87° bend and 80/125mm rigid section to connect to a single collective flue.



All models in the ecoTEC pro VMW range have an efficiency etas = 94%. Therefore, when combined with class VI thermoregulation (such as vSmart), they achieve a system efficiency of 98% and thus the ErP system energy class in heating A+.



EcoTEC pro was born as the natural evolution of Vaillant's established technology and experience in condensing technology. ecoTEC pro is designed to offer the right balance of performance and comfort in both heating and domestic hot water production. With its new high-efficiency pump and new electronics, it enables ecoTEC pro to consume very little electricity, providing significant savings over the year.

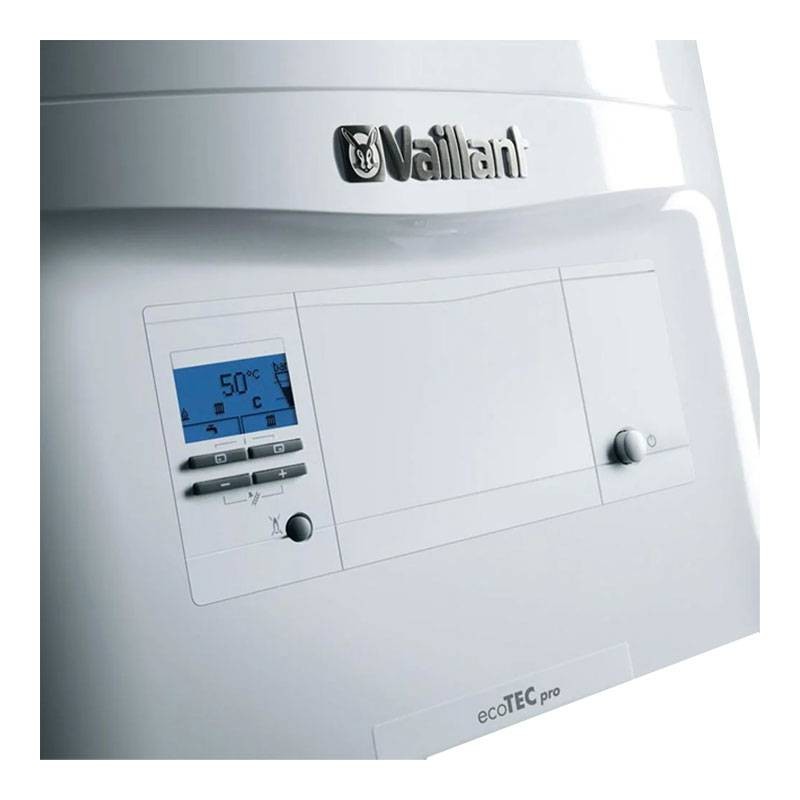

Its simplicity of regulation makes it the ideal boiler for all users, as well as featuring an extremely simple interface with plain text and backlit display for easy operation.



General data:

• Appliance-side gas connection: 15 mm
• Heating supply/return connections on appliance side: 22 mm
• Hot and cold water connection on appliance side: 3/4
• Safety valve connection pipe (min.): 15 mm
• Air-flue connection: 60/100 mm
• Condensate drain pipe (min.): 19 mm
• Dynamic pressure of natural gas, G20: 2.0 kPa (20.0 mbar)
• Dynamic pressure of propane gas, G31: 3.7 kPa (37.0 mbar)
• Min flue gas temperature: 40 ?
• Flue gas temperature max: 70 ? 74 ?
• Class: NOx 6 6



Technical data power/heat capacity G20:

• Rated heat output range P at 50/30 °C: 5.7 24.9 kW
• Rated heat output range P at 80/60 °C: 5.2 23.0 kW
• Maximum heat output in hot water production: 23.0 kW
• Maximum heat output in hot water production: 23.5 kW
• Maximum heat output on the heating side: 23.5 kW
• Minimum heat output: 5.5 kW
• Heating control range: 5 19 kW
• Efficiency at rated (stationary) heat flow rate at 40/30 °C: 107.0 %
• Efficiency at rated (stationary) heat flow rate at 50/30 °C: 106.0 %
• Efficiency at rated thermal flow rate (stationary) at 60/40 °C: 101.0 %
• Efficiency at rated (stationary) heat flow rate at 80/60 °C: 98.0 %



G230 power/load technical data:

• Rated heat output range P at 50/30 °C: 5.7 24.9 kW
• Rated heat output range P at 80/60 °C: 5.2 23.0 kW
• Maximum heat output in hot water production: 23.0 kW
• Maximum heat output in hot water production 23.5 kW
• Maximum heat output on the heating side: 23.5 kW
• Minimum heat output: 5.5 kW
• Heating control range: 5 19 kW



Technical data power/heat flow rate G31:

• Rated heat output range P at 50/30 °C: 7.9 24.2 kW
• Rated heat output range P at 80/60 °C: 7.2 23.0 kW
• Maximum heat output in hot water production: 23.0 kW
• Maximum heat output in hot water production: 23.5 kW
• Maximum heat output on the heating side: 23.5 kW
• Minimum heat input: 7.7 kW
• Efficiency at rated (stationary) heat flow rate at 40/30 °C: 105.0 %
• Efficiency at rated thermal flow rate (stationary) at 50/30 °C: 103.0 %
• Efficiency at rated thermal flow rate (stationary) at 60/40 °C: 101.0 %
• Efficiency at rated heat flow rate (stationary) at 80/60 °C: 98.0 %



Heating technical data:

• Maximum flow temperature: 85
• Max. flow temperature setting range (factory setting 75 °C): 30 80 ?
• Allowable total overpressure: 0.3 Mpa (3.0 bar)
• Circulating water flow rate (referred to ?T= 20 K): 796 l/h



DHW mode technical data:

• Minimum water flow rate 1.5 l/min 1.5 l/min Water flow rate (at T = 30 K): 11.0 l/min
• Allowable overpressure: 1.0 Mpa (10.0 bar)
• Required connection pressure: 0.035 Mpa (0.350 bar)
• Hot water supply temperature range: 35 65



Electrical system technical data:

• 230V - 50 Hz electrical connection
• Allowable connection voltage: 190 253 V
• Fuse fitted (delayed): 2 A
• Electrical power consumption, min: 35 W
• Electrical power consumption, max: 80 W
• Standby electric power consumption: < 2 W
• Type of protection: IP X4 D
