Vaillant outsideMAG low NOx 12-Liter LPG/Propane Gas Water Heater 0010022466
VLL 0010022466
Gas water heater Vaillant Model outsideMAG low NOxa 128/1 - 5 RT, forced draught outdoor low NOx emission (class 6) for domestic hot water production:
- Min-max power 4.6-23.3 KW
- Temperature regulation acs 38-60 Degrees

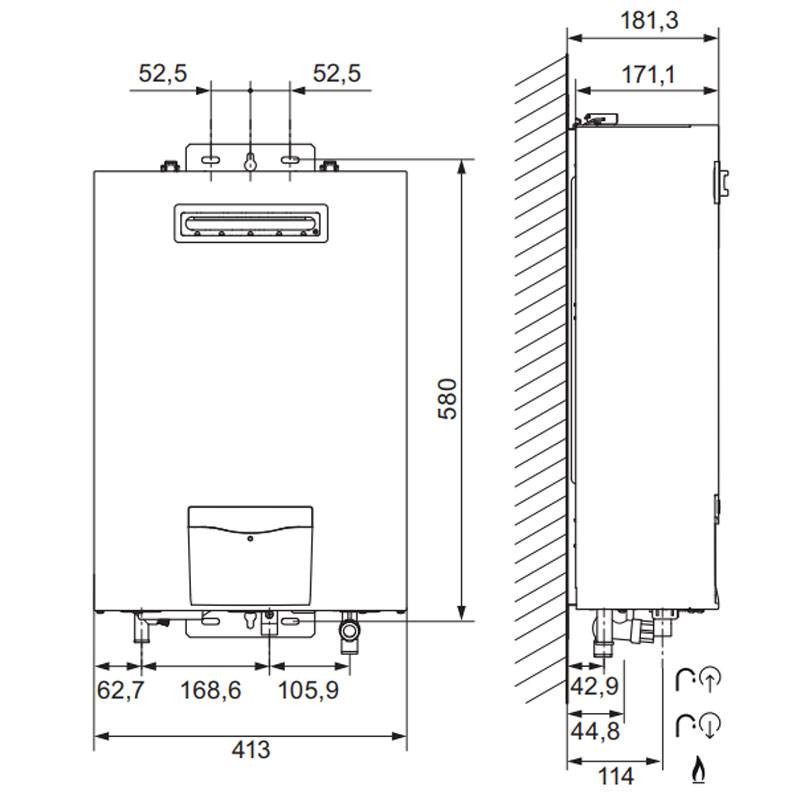

- Height - Width - Depth 580x413x181mm
- Gas-hydraulic connections 1/2 - G1/2"
- Hot water production (l/min): 12
- Combustion type: Sealed chamber
- Positioning: Wall-mounted
- Fuel type: LPG/Propane Gas
- Usage: Domestic hot water
- DHW Energy Class: A

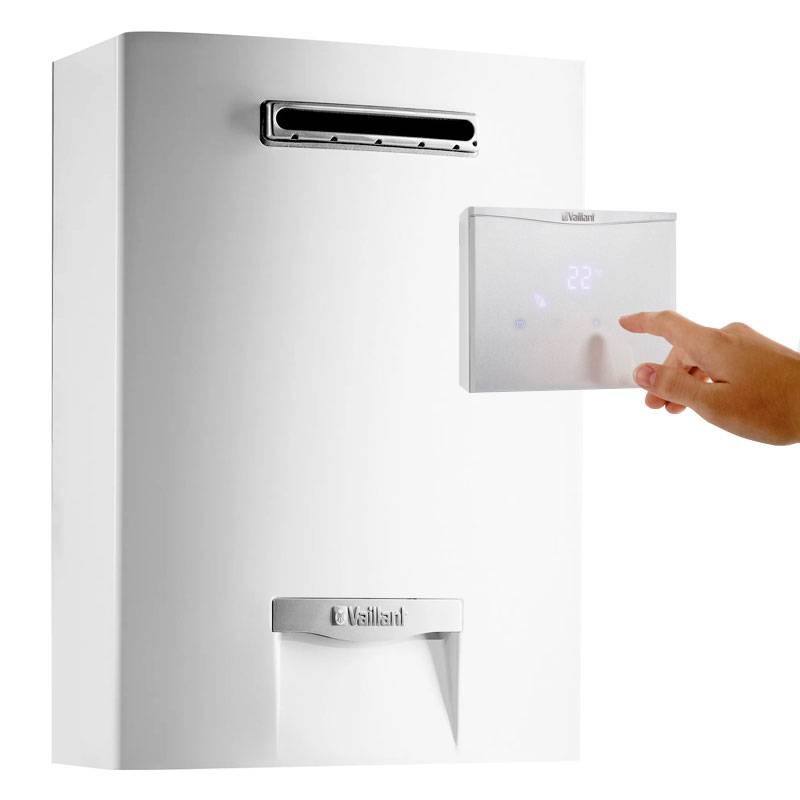

OutsideMAG outdoor water heaters come with remote control to manage comfort conveniently from inside the home.
Plumbing connections are also included.
They are super easy to install and do not require chimney connections since they have a façade drain already built into the front panel (Type A approval).
€458.69
€458.69
Tax included
Tax included
Items Available: 3
Water heaters of the same series
The outdoor water heater that you control from inside
- Forced draught outdoor water heater with low NOx emissions (class 6) for domestic hot water production, with an included remote control to manage comfort conveniently from inside the home. Plumbing connections are also provided
- Designed to operate outside the home by increasing protection to -25°C as standard. Extremely easy to install and requires no chimney connections since it has a facade flue already built into the front panel (Type A approval).
- An innovative combustion system that expands the modulation range and two inlet and outlet water temperature control probes ensure perfect temperature stability. A solar kit as an accessory also makes it possible to preheat the incoming water and further reduce gas consumption
Features:
- Low NOx emissions (class 6)
- Reduced dimensions
- Frost protection down to -25°C as standard
- Integrated front flue exhaust
- Remote control included as standard
- Design and intuitive touch screen display
- Flexible connections included
- 1:5 power modulation range
- Integrated front flue exhaust
- No chimney connection
- Perfect temperature stability in delivery
- Installation: Exterior
- Length/Depth (cm): 18.1
- Width (cm): 41.3
- Height (cm): 58
Advantages:
All Class A:
- MAG's range of water heaters is designed in compliance with ErP 2018 regulations.
- All water heaters are Class A and low NOx emission to ensure very high energy efficiency and maximum respect for the environment
Simply elegant:
- Water heaters with essential, solid and recognizable lines, equipped with intuitive controls and well integrated with interior furnishings and exterior construction
Easy and quick to install:
- Plumbing connections are designed to make installation faster by decreasing the complexity and making it more intuitive to perform
Features:
- Net weight 16.6 kg
- Electrical connection 230 V / 50 Hz
- Electrical power consumption 45 W
- Electrical power consumption (standby) 5 W
- Protection class IPX5D
- Control mark/register no. 1008 CS 3140
- Min. hot water flow rate 2.5 l/min
- Max. flow rate 8.0 l/min
- Approval category Liquid gas
- Maximum rated heat flow rate (referred to Hi heating value) 23.3 kW
- Minimum rated heat flow rate 4.6 kW
- Hot water flow rate (T= 25 K) 12 l/min
- Hot water flow rate (T= 35 K) 8.6 l/min
- Hot water flow rate (T= 50 K) 6 l/min
There are no reviews
Data sheet
- Type: Water heaters
- Model: LPG/Propane
- Installation: Horizontal
- Capacity: 12 Liters
- Energy class: A
- Series: OutsideMAG
