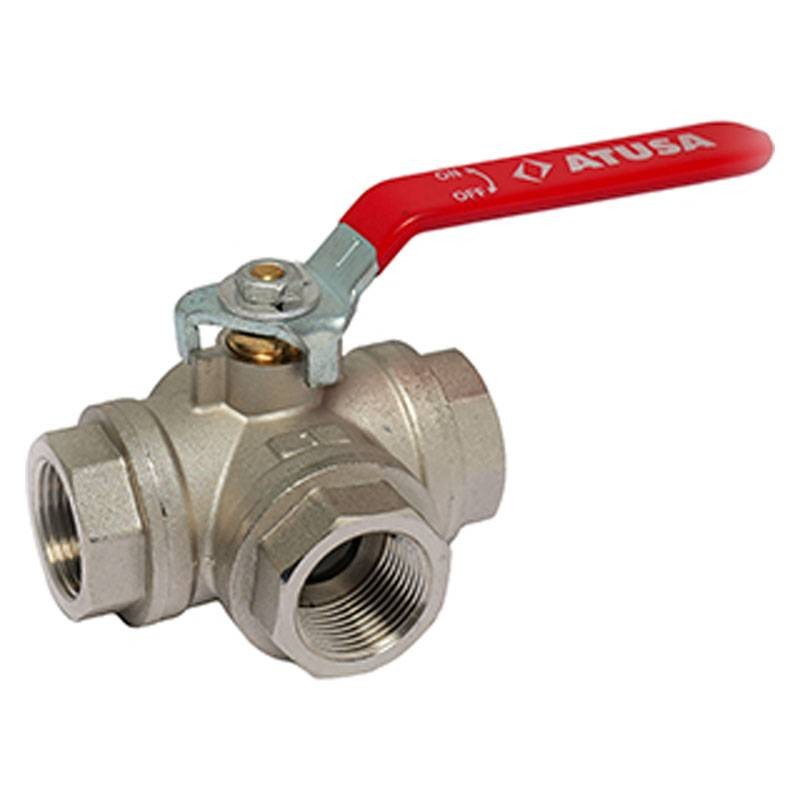

Atusa 3-way lever ball valve F/F 1 inch red brass VS130305

Atusa Euraccordi
EUD VS130305 8432388267775

Atusa 3-Way Lever Ball Valve designed to provide controlled flow in various distribution systems. With a robust design and PTFE gasket, it is an ideal choice for plumbing and compressed air systems, with the following features:

  • Port: Female 1 inch

  • Diameter: 25 mm

  • Inner diameter: 20 mm

  • Maximum pressure: 16 bar

  • Material: Brass

  • Colour: Red

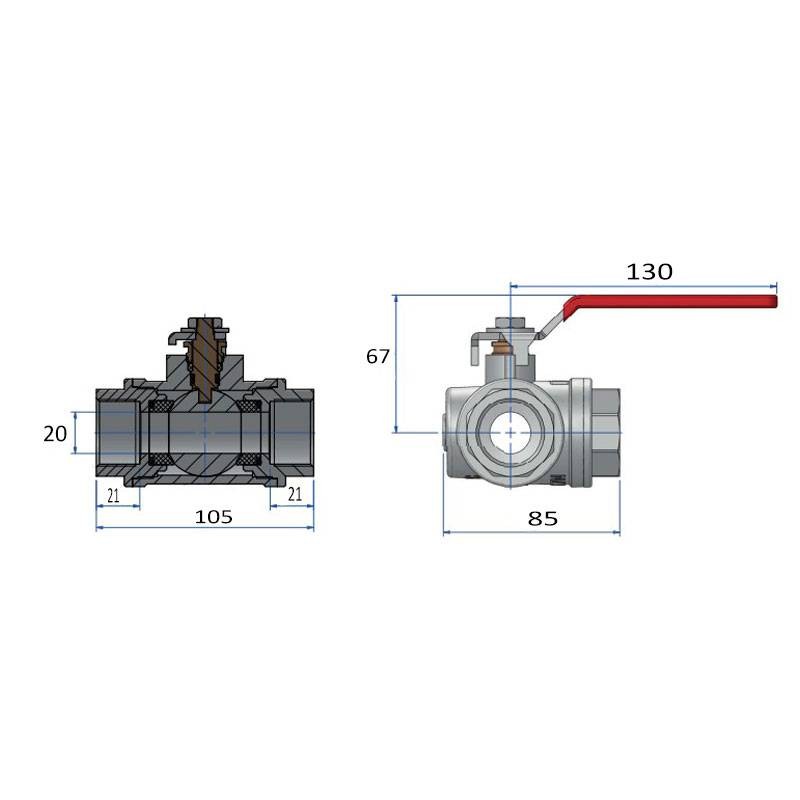

  • Dimensions: 105x21x161x72 mm

  • Operation: Lever for quick opening/closing

Do you have questions about this product or did you not find what you were looking for? Ask us!
Atusa 3-way lever ball valve F/F 1 inch red brass VS130305
€57.56
€57.56

€57.56
Tax included
Items Available: 4
Further availability of the manufacturer
€57.56

Buy it within and receive it from Monday, 17 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Atusa 3-way lever ball valve F/F 1 inch red brass

The Atusa Ball Valve is made of red brass, a corrosion-resistant material suitable for long-term use in plumbing and compressed air systems. With a PTFE gasket, the valve provides a perfect seal, preventing leakage and ensuring durability. This type of valve is an excellent choice for those seeking reliability and performance in water distribution systems, heating systems, or irrigation systems.

Installation and Use of the Atusa Ball Valve

The Atusa Ball Valve is easy to install thanks to its compact and versatile design. Its threaded connection, allows easy connection to standard piping. The easy-to-maneuver lever allows for precise water flow adjustment, making the valve ideal for cold and hot water systems and compressed air systems.

The Atusa Ball Valve is designed for multiple applications, including:

  • Domestic and industrial plumbing systems: Hot and cold water flow control

  • Compressed air systems: Pressure management and air distribution

  • Heating systems: Precise flow control for heating systems

  • Irrigation systems: Quick regulation and shut-off of water in irrigation networks

Technical characteristics of the Atusa Ball Valve

  • Body Material: Red Brass

  • Valve type: Ball

  • Diameter: 25 mm

  • Inner diameter: 20 mm

  • Maximum pressure: PN 25 (up to 25 bar)

  • Stuffing box: PTFE gasket

  • Operating temperature: -20°C to +120°C

  • Operation: Lever for quick opening/closing

  • Applications: Cold and hot water, compressed air, water distribution networks, heating systems, irrigation

There are no reviews

Data sheet

Type:
Ball valves
Connection:
F
System:
Water
Connections:
1 inch
