Fantini Cosmi Coil for Solenoid Valves M20/M23 115Vca IM21H

Fantini Cosmi
FAN IM21H 8025863008033

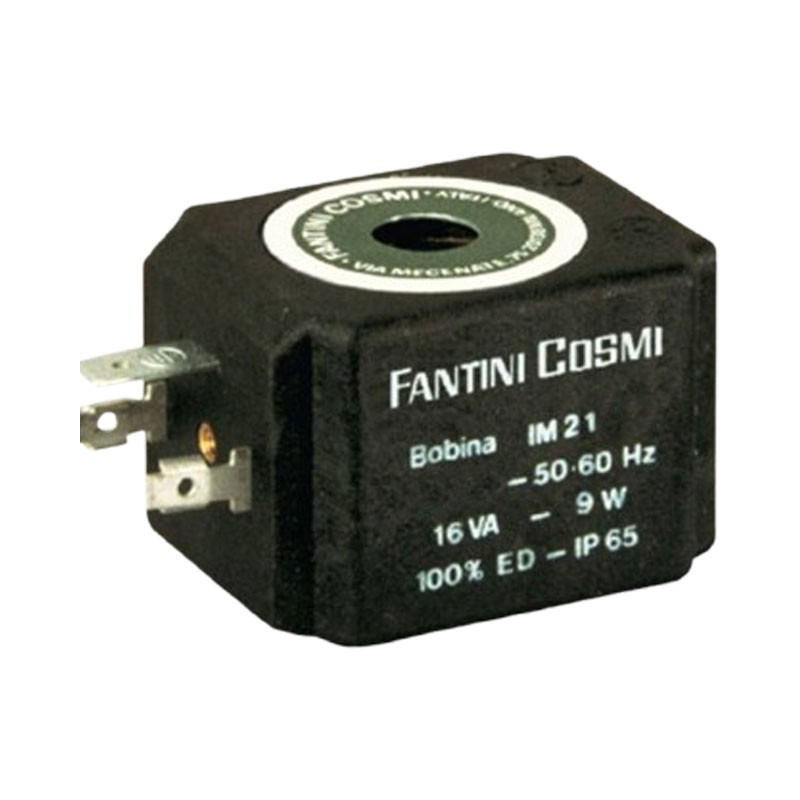

The Fantini Cosmi IM21H coil is designed to control M20 and M23 series solenoid valves with 115Vac power supply. Made with high quality materials and advanced technology, it ensures strength, durability and safety in demanding operating environments:

  • Suitable for M20 - M23 valves

  • 115Vac 50/60Hz power supply

  • Inrush coil power consumption 25VA

  • Active power 9W

  • High-quality materials: Thermoplastic body with 30% glass fiber for added strength

  • Class H copper wire, resistant up to 180°C

  • Insulation class F: Ensures an operating temperature of up to 155°C for continuous use (100% ED)

  • IP65 rating: Complete protection against dust and splashing water

  • Wide temperature range: Suitable for environments with a maximum temperature of 50°C

Do you have questions about this product or did you not find what you were looking for? Ask us!

Fantini Cosmi Coil for Solenoid Valves M20/M23 115Vca IM21H

€12.08
€12.08

Fantini Cosmi Coil for Solenoid Valves M20/M23 115Vca IM21H

€12.08
Tax included
Items Available: 10
Further availability of the manufacturer

Fantini Cosmi Coil for Solenoid Valves M20/M23 115Vca IM21H

€12.08

Buy it within and receive it from Thursday, 19 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Fantini Cosmi coil for solenoid valves M20/M23 115Vac IM21H

Electrical characteristics

Operating limits:

  • Alternating current (AC) coils: ±10%.
  • Direct current (DC) coils: -5% ÷ +10%.
  • Electrical connections: 2P connector terminals + ground

Main advantages

  • Durabilityand strength: High-quality materials ensure robustness and long service life.
  • Safety: IP65 degree of protection to withstand dusty or humid environments.
  • Operational efficiency: Class H insulation and copper wires for continuous use without risk of overheating.
  • Ease of integration: Compatibility with M20 and M23 solenoid valve series for quick installation

Fantini Cosmi IM21H Coil Specifications

  • Model: IM21H
  • Compatibility: M20 and M23 solenoid valves
  • Materials/Body: Thermoplastic with 30% glass fiber.
  • Copper wire: Class H (180°C)
  • Insulation Class: F (155°C)
  • Degree of protection: IP65
  • Maximum ambient temperature: 50°C

Electrical characteristics:

  • Operating limits: ±10% (AC), -5% ÷ +10% (DC)
  • Connections: Terminals for 2P connector + ground

Recommended applications

  • Solenoid valve control: Ideal for hydraulic and pneumatic systems
  • Industrial plants: Perfect for environments requiring high strength and reliability
  • Harsh environments: Suitable for conditions with the presence of dust or moisture, thanks to IP65 rating
