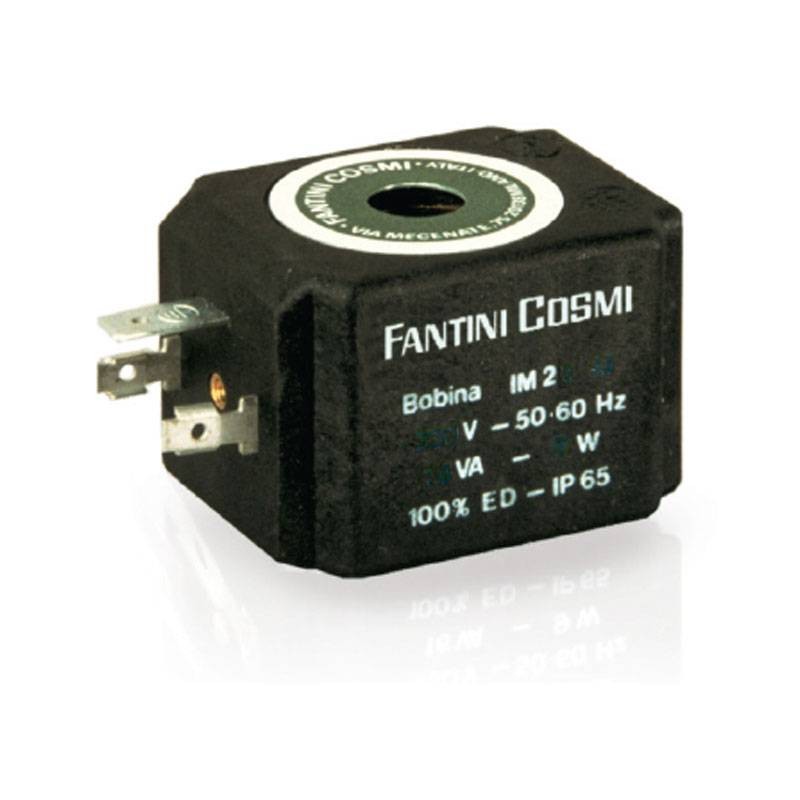

Fantini Cosmi coil for valves M20/23 12V IM21D
FAN IM21D
8025863038047
The Fantini Cosmi IM21D coil is designed for M20 and M23 series valves. Powered at 12V, it offers reliable and safe performance due to its robust construction and high-quality materials. Ideal for industrial and technical applications requiring precision and durability under demanding operating conditions:
- Suitable for M20/M23 valves
- Power supply 12Vac 50/60Hz
- Inrush coil power consumption 25VA
- Active power 9 watts
Fantini Cosmi coil for valves M20/23 12V IM21D
€12.52
€12.52
Tax included
Tax included
Items Available: 10
: 5
Frequently bought together
Fantini Cosmi coil for valves M20/23 12V IM21D
- Model: IM21D.
- Compatibility: M20/M23 series valves.
- Power supply: 12V
Materials:
- Copper wires: Class H (180°C)
- Body: Glass-fiber reinforced thermoplastic (30%)
- Insulation class: F (155°C)
- Degree of protection: IP65
- Maximum ambient temperature: 50°C
Recommended applications
- Hydraulic systems: Control of water flows and non-corrosive fluids.
- Industrial systems: Perfect for applications in technical and industrial environments.
- Automation: Ideal for automated systems that require precision and continuity.
- Harsh environments: Designed to operate in conditions with the presence of dust or moisture
Electrical Characteristics
| Feature | Detail |
|---|---|
| Operating limits | ±10% Coil approx. -5% ÷ +10% Coil dc. |
| Electrical connections | On terminals for 2P+ connector |
Standards and Approvals
| Feature | Detail |
|---|---|
| Standards of conformity | EN 60335-1, EN 60730-2-8 |
Operation
| Feature | Detail |
|---|---|
| Use at 60 Hz | With IM21 coils used at 60 Hz, the pressures shown in the tables should be reduced by 12% on average |
General Characteristics
| Feature | Detail |
|---|---|
| Coil material | Manufactured from class H (180°C) copper wire |
| Body | Thermoplastic material 30% glass fiber, insulation class F (155°C), suitable for continuous service (100% ED) |
| Degree of protection | IP65 |
| Maximum ambient temperature | 50°C |
There are no reviews
Data sheet
- Type: Coils
