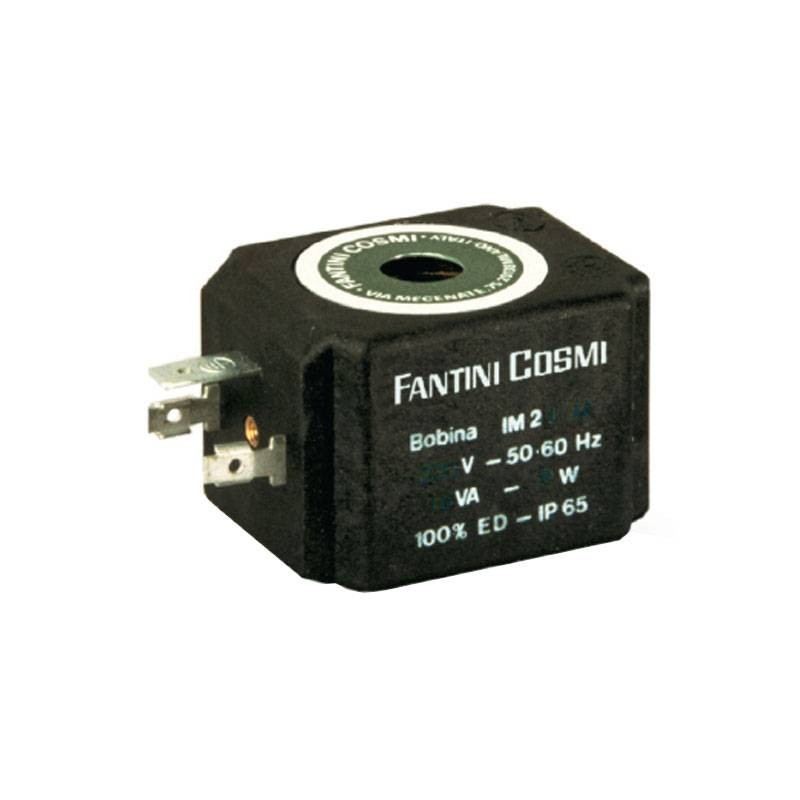

Fantini Cosmi control coil for valves M29 24V IM29F
FAN IM29F
8025863013907
The Fantini Cosmi IM29F control coil is designed for use with M29 series solenoid valves. Powered at 24V, it provides reliable performance and safety thanks to its robust construction and high-quality materials. It is ideal for applications requiring precise and continuous flow control in industrial and residential installations:
-
Compatibility: Suitable for M29 series solenoid valves.
-
Inrush coil power consumption 33VA
-
Active power 14 watts
-
Power supply: 24V operation for low-voltage systems
-
High-quality materials: Body made of reinforced thermoplastic material for strength and durability - Class H copper wire, resistant up to 180°C
-
Insulation class F: Operational up to 155°C, ideal for continuous use (100% ED)
-
Protection rating IP65: Resistant to dust and water jets, ensuring reliability in harsh environments.
Fantini Cosmi control coil for valves M29 24V IM29F
€13.68
€13.68
Tax included
Tax included
Items Available: 9
: 5
Frequently bought together
Fantini Cosmi control coil for valves M29 24V IM29F
Recommended applications
-
Hydraulic systems: Flow control of water or noncorrosive fluids
-
Industrial plants: Flow management in pneumatic or hydraulic systems
-
Automation: Used in automated processes that require reliable and safe control
-
Harsh environments: Perfect for applications in dusty or humid environments.
Electrical Characteristics.
-
Operating limits ±10% BOBINE approx. -5% ÷ +10% BOBINE dc
-
Electrical connections on terminals for 2P + connector
Operation
-
With IM29 coils used at 60 Hz, the pressures shown in the tables, should be reduced by 12% on average.
There are no reviews
Data sheet
- Type: Coils
