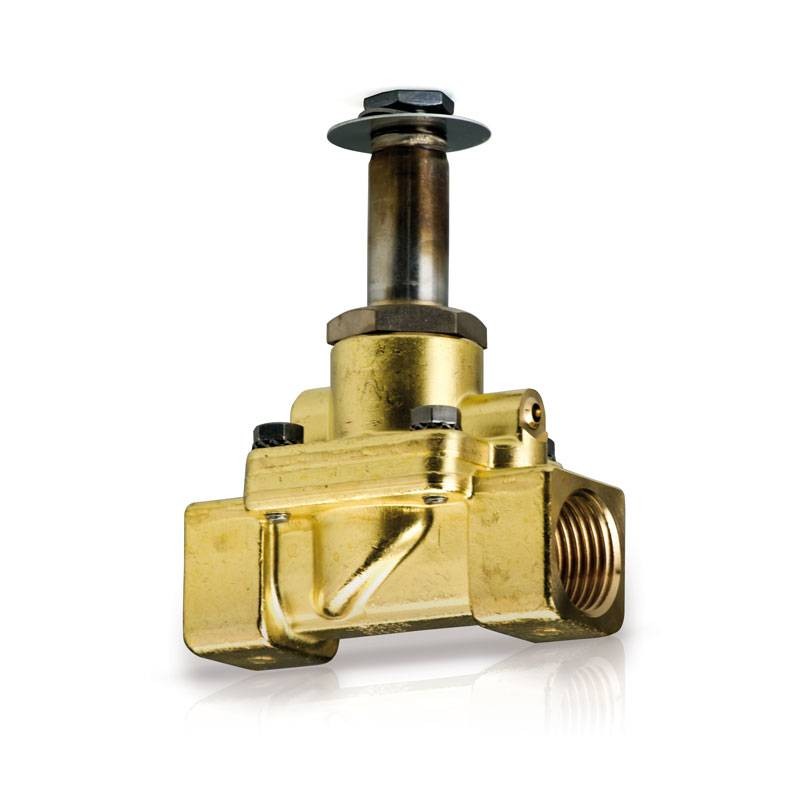

Fantini Cosmi M29 Diaphragm Solenoid Valve G1 25mm NA M29F25

Fantini Cosmi
FAN M29F25 8025863009733

the Fantini Cosmi M29F25 normally open servo-assisted diaphragm valve body is designed to handle large flow rates of water, air, inert gases and non-corrosive fluids. With high-quality materials, such as copper alloys, it is ideal for industrial applications requiring reliability and precision, such as autoclaves, air compressors, car washes and pressure washers:

  • 25mm through-hole diameter

  • G 1 inch female connection

  • KV 9.6 m³/h

  • Closing time dp of 1 bar 1.5 seconds

  • Maximum differential pressure 20 bar

  • Minimum operating pressure 0.1 bar

  • Test pressure (DIN2401) PN 25 bar

M29 valve bodies mount only the IM29 coil supplied separate from the valve body (part number IM29F).

Do you have questions about this product or did you not find what you were looking for? Ask us!

Fantini Cosmi M29 Diaphragm Solenoid Valve G1 25mm NA M29F25

€116.35
€116.35

Fantini Cosmi M29 Diaphragm Solenoid Valve G1 25mm NA M29F25

€116.35
Tax included
Items Available: 11
Further availability of the manufacturer

Fantini Cosmi M29 Diaphragm Solenoid Valve G1 25mm NA M29F25

€116.35

Buy it within and receive it from Tuesday, 17 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Fantini Cosmi M29 Diaphragm Solenoid Valve G1 25mm NA M29F25

  • Large flow rates: Handles high volumes of fluids with efficiency and precision.
  • Servo-driven diaphragm: Smooth and reliable operation even under variable flow conditions.
  • High-quality materials: Made of copper alloys, resistant to wear and corrosion.
  • Normally open (NA) configuration: Maintains free passage until electrically activated.
  • Compatibility with various fluids: Ideal for water, air, inert gases and other non-corrosive fluids with viscosities up to 2° Engler.

Technical specifications of the Fantini Cosmi M29F25 Solenoid Valve.

  • Model: M29F25.
  • Valve type: servo-assisted diaphragm, normally open (NA).

Fluid compatibility:

  • Water.
  • Air.
  • Inert gases.
  • Other non-corrosive fluids (max. viscosity: 2° Engler).
  • Materials: Copper alloys.
  • Fitting: G 1 inch (25mm)

Recommended applications.

  • Autoclave systems: Pressure and flow regulation and control.
  • Air compressors: Safe management of compressed air flow.
  • Car washes: Precise water control for professional cleaning systems.
  • Pressure washers: Stable flow assurance for high-pressure equipment.

There are no reviews

Data sheet

Type:
Solenoid valves
Connections:
1 inch
