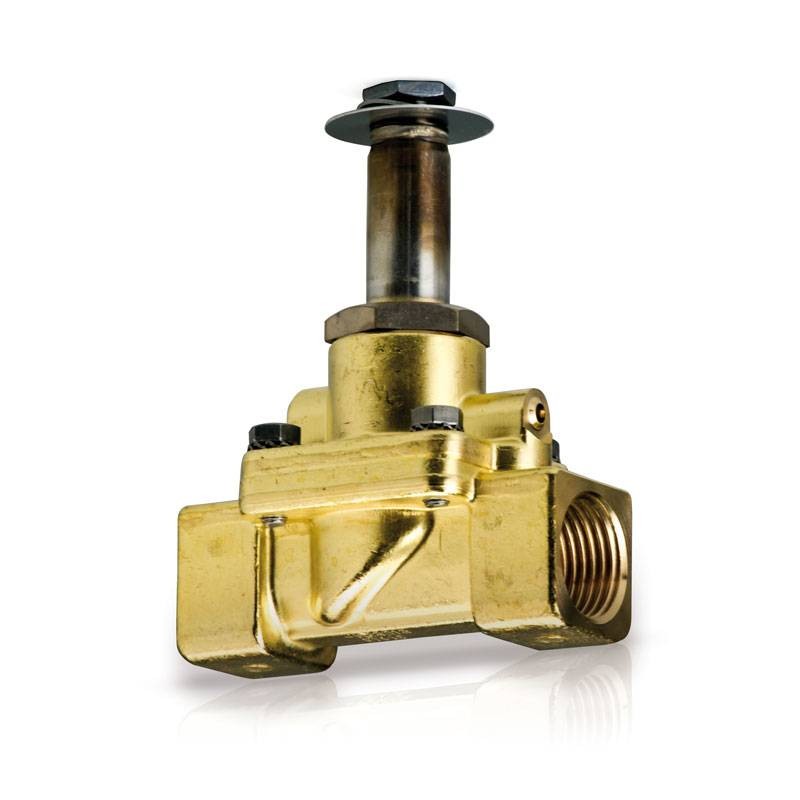

Fantini Cosmi Membrane Solenoid Valve M23 G1 25mm NC M23F25

Code: FAN M23F25 EAN: 8025863009474

The Fantini Cosmi M23 diaphragm solenoid valve is an ideal solution for handling large flows of water, air, inert gases and other non-corrosive fluids. Designed with durable materials such as copper alloys, it guarantees reliability and durability, making it perfect for industrial applications and complex installations:

25 mm passage bore diameter
G 1 inch female connection
KV 9.6 m³/h
Closing time dp of 1 bar 1.5 seconds
Maximum differential pressure 20 bar
Minimum operating pressure 0.1 bar
Test pressure (DIN2401) PN 25 bar

Control coils are supplied separate from the valve body (IM21D - IM21F - IM21H - IM21M - IM22 - IM22A).

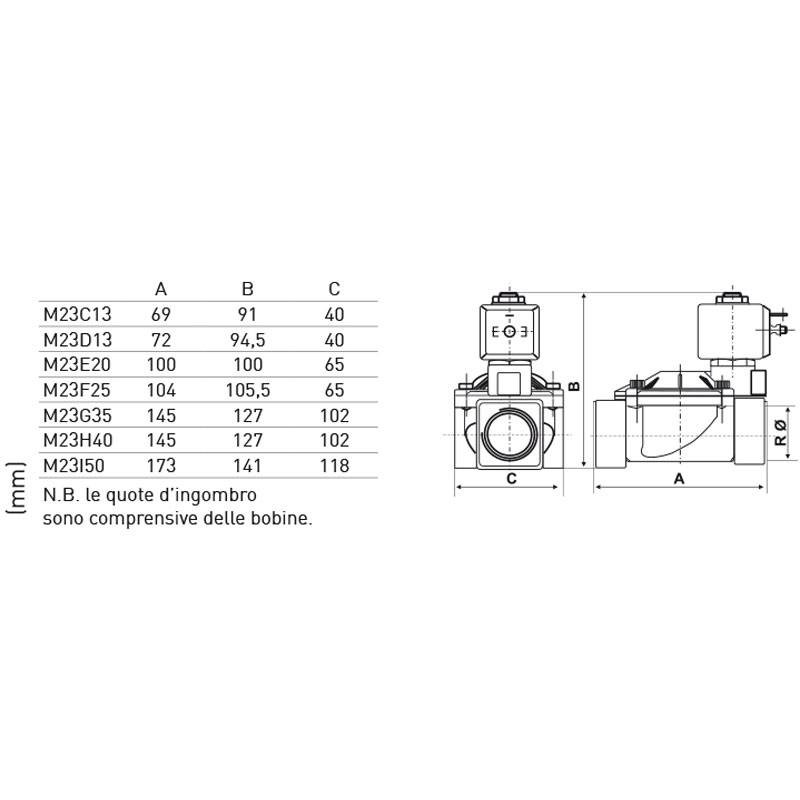

Data sheet Fantini M23F25

Fantini Cosmi Membrane Solenoid Valve M23 G1 25mm NC M23F25

€91.48

Fantini Cosmi Membrane Solenoid Valve M23 G1 25mm NC M23F25

€91.48
Tax included

Items Available: 11

: 9

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Frequently bought together

Fantini Cosmi Coil for M20/M23 24Vca Solenoid Valves IM21F

FAN IM21F

€12.08

Fantini Cosmi Coil for Solenoid Valves M20/M23 115Vca IM21H

FAN IM21H

€12.08

Fantini Cosmi coil for solenoid valves M20/M23 230Vac IM21M

FAN IM21M

€12.08

Fantini Cosmi coil for valves M20/23 12V IM21D

FAN IM21D

€12.52

Description

Fantini Cosmi M23 Solenoid Valve G1 25mm NC M23F25

The Fantini Cosmi M23 solenoid valve is used to control the flow of fluids (such as water, air, inert gases, or other noncorrosive fluids) within a system. Its main function is to open or close the fluid passage in response to an electrical command, making it ideal for handling large flow rates automatically and precisely.

Installation

Female threaded connections from G 3/8 to G 2. Valves can be installed in any position.

Operation

2-way normally closed execution
Indirect servo-locked operation
Fluid under pressure upstream of the valve enters above the diaphragm, which, pressed against the seat, blocks its passage
When the coil is energized, the pilot poppet opens, discharging the downstream pressure that raises the center plate of the diaphragm, thus opening the fluid passage port.

Features:
