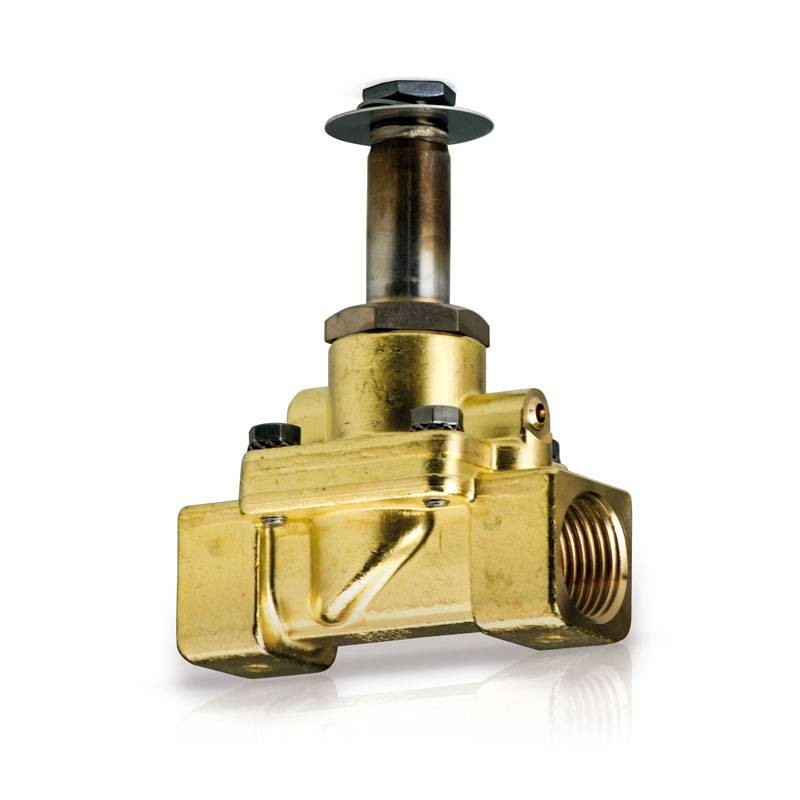

Fantini Cosmi Membrane Solenoid Valve M23 G3/4 20mm NC M23E20
FAN M23E20
8025863009450
The Fantini Cosmi M23 diaphragm solenoid valve is an ideal solution for handling large flows of water, air, inert gases and other non-corrosive fluids. Designed with durable materials such as copper alloys, it ensures reliability and durability, making it perfect for industrial applications and complex installations:
-
Passage bore diameter 20 mm
-
G 3/4 inch female connection
-
KV 8.4 m³/h
-
Closing time dp of 1 bar 1.5 seconds
-
Maximum differential pressure 20 bar
-
Minimum operating pressure 0.1 bar
-
Test pressure (DIN2401) PN 25 bar.
Control coils are supplied separate from the valve body (IM21D - IM21F - IM21H - IM21M - IM22 - IM22A).
Fantini Cosmi Membrane Solenoid Valve M23 G3/4 20mm NC M23E20
€73.63
€73.63
Tax included
Tax included
Items Available: 11
: 9
Frequently bought together
Fantini Cosmi M23 G3/4 20mm NC Membrane Solenoid Valve M23E20
The Fantini Cosmi M23 solenoid valve is used to control the flow of fluids (such as water, air, inert gases or other noncorrosive fluids) within a system. Its main function is to open or close the fluid passage in response to an electrical command, making it ideal for handling large flow rates automatically and precisely.
Installation
Female threaded connections from G 3/8 to G 2. Valves can be installed in any position.
Operation
-
2-way normally closed execution
-
Indirect servo-locked operation
-
Fluid under pressure upstream of the valve enters above the diaphragm, which, pressed against the seat, blocks its passage
-
When the coil is energized, the pilot poppet opens discharging the downstream pressure that raises the center plate of the diaphragm, thus opening the fluid passage port
Features:
-
OT58 UNI 5705 stamped brass valve body
-
NBR (Buna N) - Viton seals
-
AISI 304 stainless steel sleeve
-
AISI 430F stainless steel cores
-
AISI 302 stainless steel spring
-
Copper displacement ring
-
Operating temperature range -10 to 90°C.
There are no reviews
Data sheet
- Type: Solenoid valves
- Connections: 3/4 inches
