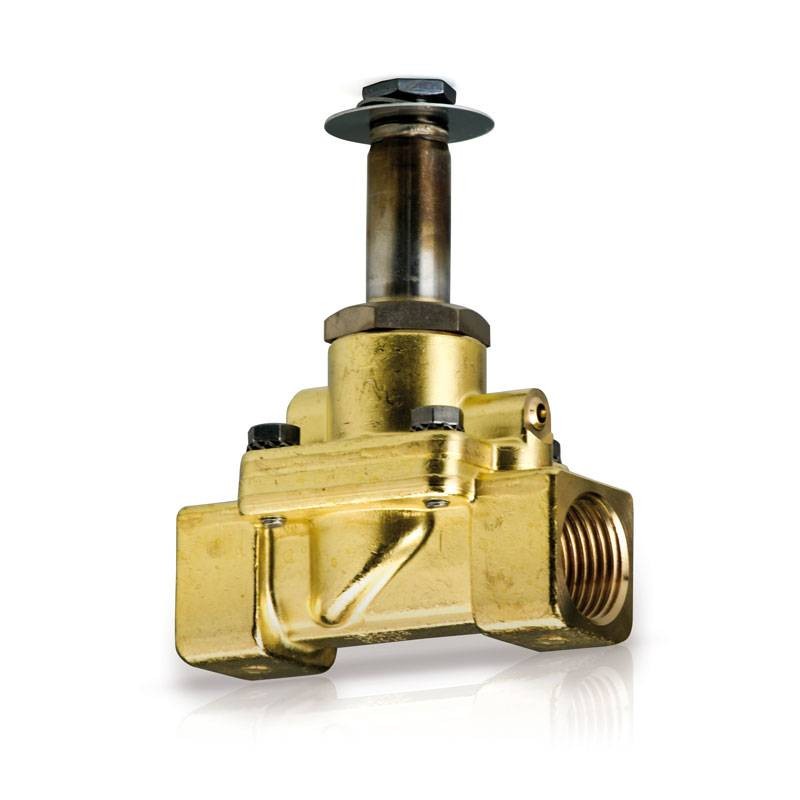

Fantini Cosmi Membrane Solenoid Valve M29 G 1-1/4 35mm NA M29G35
FAN M29G35
8025863009757
The Fantini Cosmi M29G35 diaphragm solenoid valve is designed to handle large flow rates of water, air, inert gases and noncorrosive fluids. The normally open (NA) configuration and servo-driven design make it an ideal solution for industrial and professional applications such as autoclaves, air compressors, car washes and pressure washers:
-
35 mm passage bore diameter
-
G 1-1/4 inch female connection
-
KV (flow rate in m³/h of water with pressure difference between upstream and downstream of 1 bar (1 bar = 100kPa) 25.2 m³/h
-
Closing time dp of 1 bar 2.5 seconds
-
Maximum differential pressure 10 bar
-
Minimum operating pressure 0.1 bar
-
Test pressure (DIN2401) PN 16 bar
M29 valve bodies mount only the IM29 coil supplied separate from the valve body (IM29F - IM29M).
Fantini Cosmi Membrane Solenoid Valve M29 G 1-1/4 35mm NA M29G35
€238.03
€238.03
Tax included
Tax included
Items Available: 2
: 1
Frequently bought together
Fantini Cosmi M29 G1 35mm NA Membrane Solenoid Valve M29G35
- Servo-driven diaphragm: Provides smooth and precise operation for flow control.
- Large flow rates: Designed to handle high volumes of fluid with efficiency and reliability.
- Normally open (NA) configuration: Fluid passage is allowed until electrically activated.
- Durable materials: Made of copper alloys to ensure corrosion resistance and durability.
- Compatibility with various fluids: Suitable for water, air, inert gases and non-corrosive fluids with viscosities up to 2° Engler
Installation
-
Female threaded connections from G 3/8 in. to G 2 in.
-
Valves can be installed in any position
Operation
-
Normally open 2-way design
-
Indirect servo-diaphragm-locked operation
-
Fluid under pressure upstream of the valve, passes freely under and over the diaphragm in the valve passage bore and pilot plug bore
-
When the coil is energized, the pilot plug closes and the pressurized fluid upstream of the valve enters above the diaphragm, which, pressed against the seat, blocks its passage
-
N.B. The minimum operating pressure between upstream and downstream must be 0.1 bar
Features:
-
OT58 UNI 5705 stamped brass valve body.
-
NBR (Buna N) - Viton seals
-
AISI 304 stainless steel sleeve
-
AISI 430F stainless steel cores
-
AISI 302 stainless steel spring
-
Copper displacement ring
-
Operating temperature range -10 to 90°C
-
Maximum ambient temperature 50°C
There are no reviews
Data sheet
- Type: Solenoid valves
- Connections: 1-1/4 inches
