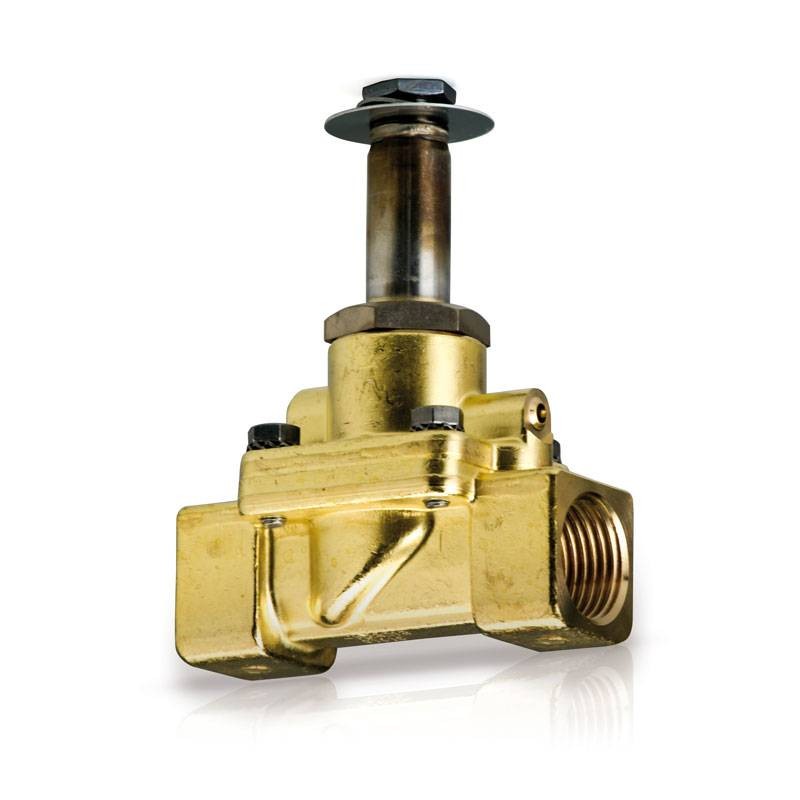

Fantini Cosmi Membrane Solenoid Valve M29 G1-1/2 40mm NA M29H40

Fantini Cosmi
FAN M29H40 8025863009764

The Fantini Cosmi M29H40 diaphragm solenoid valve is designed to handle large flow rates of water, air, inert gases, and noncorrosive fluids. The normally open (NA) configuration and servo-driven design make it an ideal solution for industrial and professional applications such as autoclaves, air compressors, car washes and pressure washers:

  • 40 mm passage bore diameter

  • G 1-1/2 inch female connection

  • KV (flow rate in m³/h of water with pressure difference between upstream and downstream of 1 bar (1 bar = 100kPa) 30 m³/h

  • Closing time dp of 1 bar 3 seconds

  • Maximum differential pressure 10 bar

  • Minimum operating pressure 0.1 bar

  • Test pressure (DIN2401) PN 16 bar.

M29 valve bodies mount only the IM29 coil supplied separate from the valve body (IM29F - IM29M).

Do you have questions about this product or did you not find what you were looking for? Ask us!

Fantini Cosmi Membrane Solenoid Valve M29 G1-1/2 40mm NA M29H40

€242.47
€242.47

Fantini Cosmi Membrane Solenoid Valve M29 G1-1/2 40mm NA M29H40

€242.47
Tax included
Items Available: 2
Further availability of the manufacturer

Fantini Cosmi Membrane Solenoid Valve M29 G1-1/2 40mm NA M29H40

€242.47

Buy it within and receive it from Wednesday, 18 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Fantini Cosmi Membrane Solenoid Valve M29 G1-1/2 40mm NA M29H40

  • Servo-driven diaphragm: Ensures smooth and precise operation.
  • Large flow rates: Optimized to handle high flows with reliability.
  • Normally open (NA) configuration: Allows continuous passage of fluid until electrically activated.
  • Durable materials: Made of copper alloys to ensure corrosion resistance and long service life.
  • Fluid compatibility: Suitable for water, air, inert gases and non-corrosive fluids with viscosities up to 2° Engler

Installation

  • Female threaded connections from G 3/8 in. to G 2 in.

  • Valves can be installed in any position

Operation

  • Normally open 2-way design

  • Indirect servo-diaphragm-locked operation

  • Fluid under pressure upstream of the valve, passes freely under and over the diaphragm in the valve passage bore and pilot plug bore

  • When the coil is energized, the pilot plug closes and the pressurized fluid upstream of the valve enters above the diaphragm, which, pressed against the seat, blocks its passage

  • N.B. The minimum operating pressure between upstream and downstream must be 0.1 bar

Features:

  • OT58 UNI 5705 stamped brass valve body.

  • NBR (Buna N) - Viton seals

  • AISI 304 stainless steel sleeve

  • AISI 430F stainless steel cores

  • AISI 302 stainless steel spring

  • Copper displacement ring

  • Operating temperature range -10 to 90°C

  • Maximum ambient temperature 50°C.

There are no reviews

Data sheet

Type:
Solenoid valves
Connections:
1-1/2 inches
