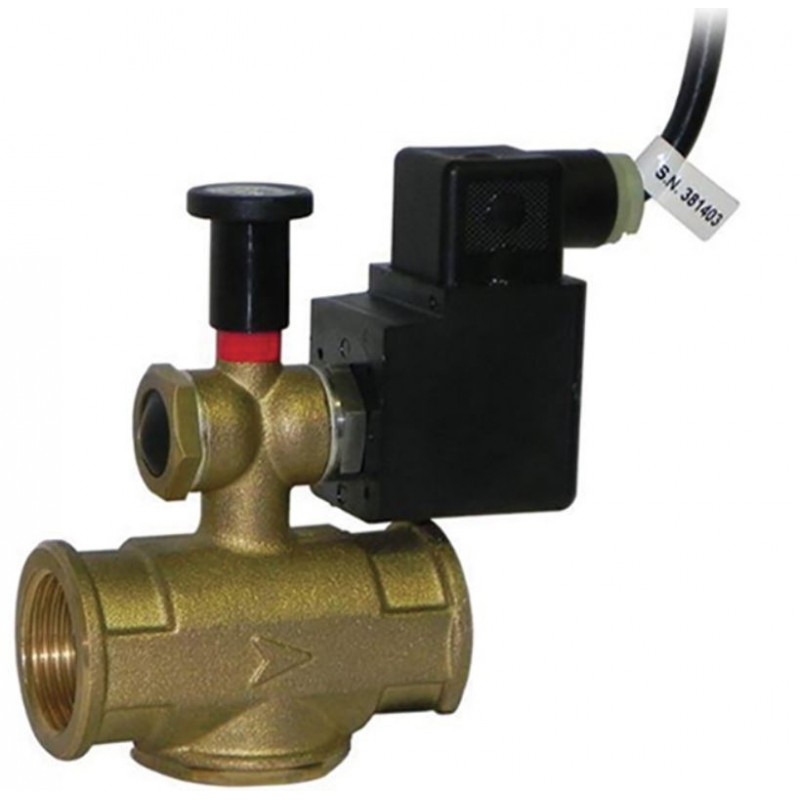

Perry N.O. solenoid valve DN20 threaded 230V brass body 1EVEV021
PER 1EVEV021
8019108190096
Perry solenoid valve, with the following features:
- 230V supply voltage
- Brass body
- Frequency: 50/60 Hz
- Connections 3/4 inch DN20 Threaded
- Rp threaded connections (brass body): DN15÷25 according to EN 10226
- Threaded connections Rp: DN20÷50 according to EN 10266
- Flanged connections PN16: DN32÷300 according to ISO 7005
- Degree of protection: IP65
- Closing time: < 1 s
- Maximum operating pressure: 500 mbar or 6 bar (see product label)
- Ambient temperature: -15 to +60 °C
- Max. surface temperature: 70 °C
- Glass-fibre reinforced polyamide resin encapsulated coils with DIN 43650 type connection; insulation class F (155°) and enamelled wire class H (180°)
Perry N.O. solenoid valve DN20 threaded 230V brass body 1EVEV021
€47.21
€47.21
Tax included
Tax included
Items Available: 2
: 1
The operating principle of the N.A. series solenoid valves is very simple and therefore extremely safe. The electromagnetic coil, when under tension, releases the closing device of the valve which is normally open. The reset is manual to verify the causes of the gas interception. During normal operation there is no electrical absorption and therefore, in addition to energy saving, no parts are subject to wear.
Features:
- Brass OT-58 (UNI EN 12164)
- Aluminium 11S (UNI 9002-5)
- Die-cast aluminium (UNI EN 1706)
There are no reviews
Data sheet
- Type: Solenoid valves
- System: Gas
