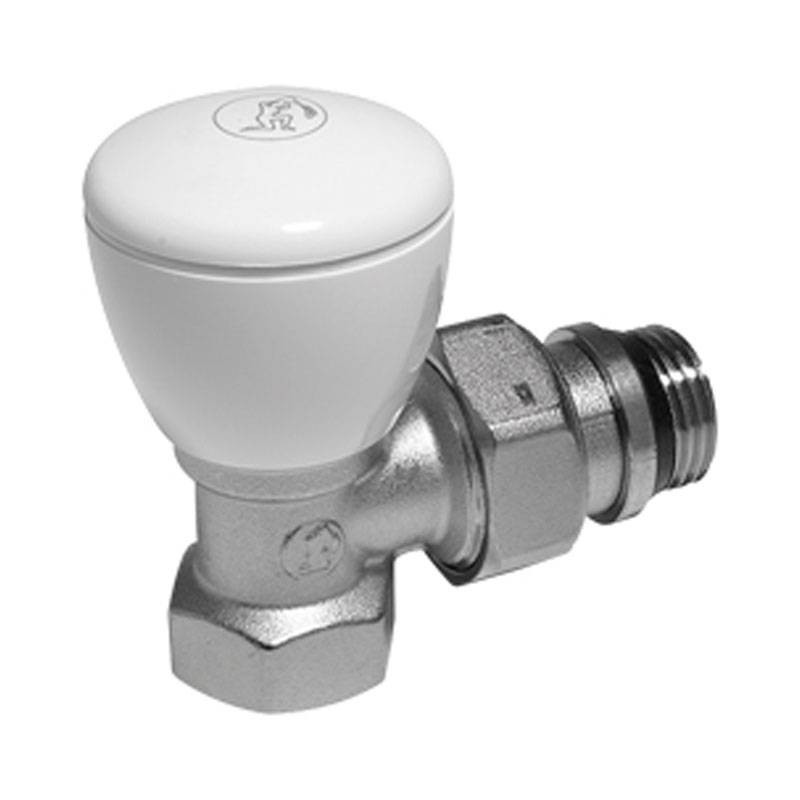

Giacomini Manual Angle Valve for Radiators M/F 3/4 R5X034


GIA R5X034 8009902171193

Manual valve with simple adjustment, angle type with iron pipe connection with the following features:


  • Connection: Male/Female
  • Fittings: 3/4
  • Finish: Chrome-plated brass
  • Knob type: Manual
  • Nozzle type: Nozzle without self-holding

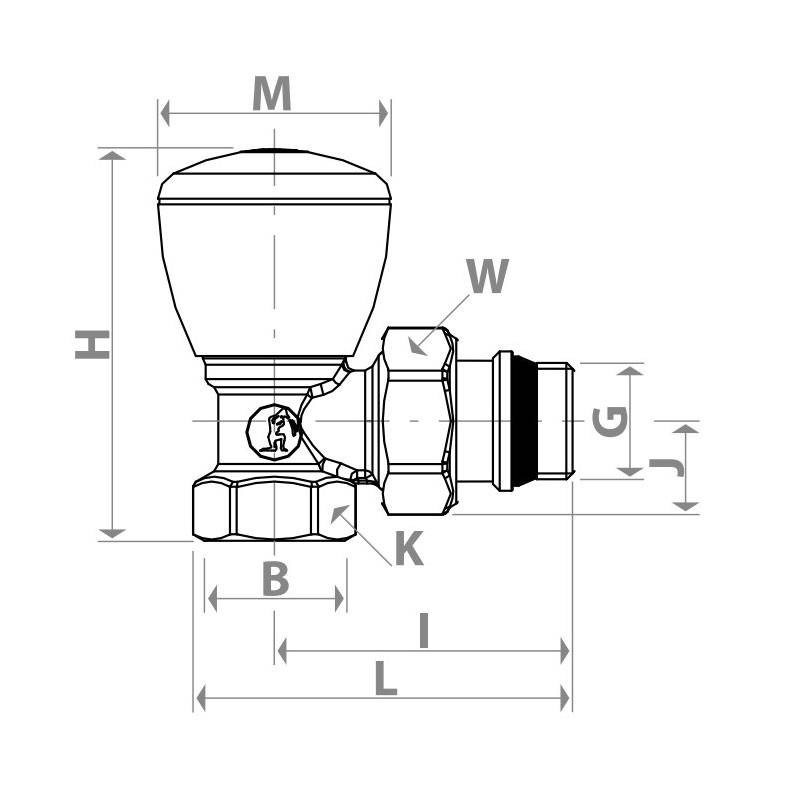

  • Dimensions: 79x60x23x32x84x49x38 (H-I-J-K-L-M-W)
Do you have questions about this product or did you not find what you were looking for? Ask us!
Giacomini Manual Angle Valve for Radiators M/F 3/4 R5X034
€15.79
€15.79

€15.79
Tax included

€15.79

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Easy return within 14 days

Characteristics:

  • Application fluids: water and glycol solutions (max. 30 %)
  • Temperature range: 5÷110 °C
  • Maximum working pressure: 16 bar
  • Body and main components: brass UNI EN 12165 CW617N
  • One-piece control rod: brass UNI EN 12164 CW617N
  • Manual handwheel: ABS
  • Seals: EPDM

Data sheet

Type:
Thermostatic Radiator Valves
Connection:
M/F
Connections:
3/4 inches
