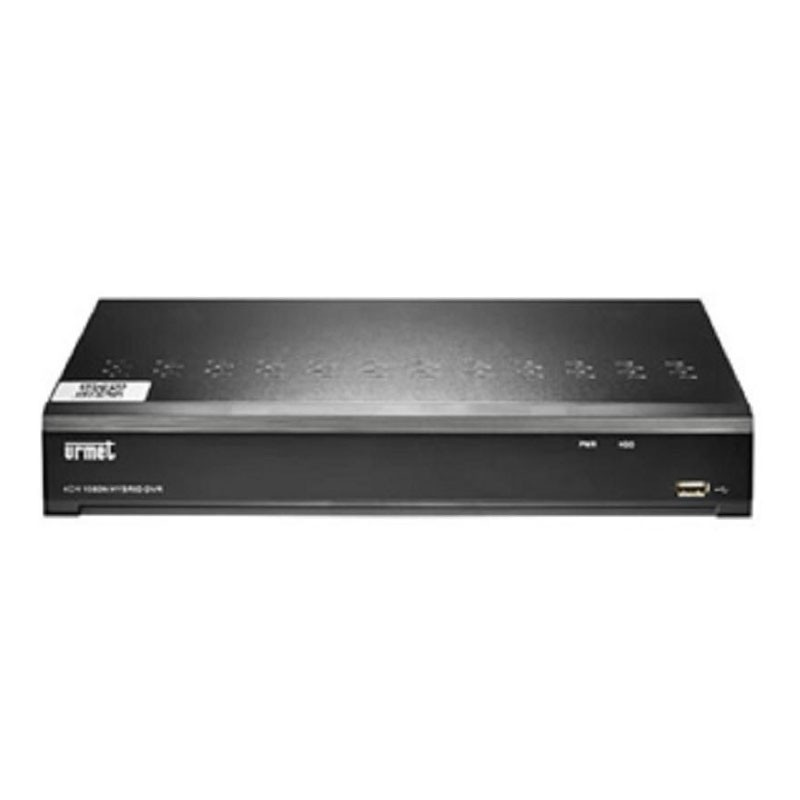

Features of individual components:

The NVR is fully telemanageable from both Windows and MAC systems, and is compatible with UVS software, browser, and the new free iUVS pro app that allows convenient management from all smartphones (Android and iOS), iPADs and tablets. LNVR directly manages the V-DETC and Face Recognition function of the Prime and 5MPro 4K IP cameras and offers compatibility with the Fisheye IP cameras range (dewarping management only through WEB page, iUVS SW and iUVSpro App). It has 4 POE ports for direct power supply of the connected IP cameras.

• H.265 H265+ H.264 H264+
• Band IN/OUT: 50/65Mbps
• E-SATA for backup and recording to external HD
• S.M.A.R.T. Hard disk
• 4 IP channels
• 4 PoE ports
• Max. recording resolution and speed: 8M (4K), 5M, 4M, 3M, 2M (1080P),1.3M (960P), 1.0MP (720P) @ 25fps per single IP channel
• 1 HDD slot with max. capacity of 6TB
• Network Port: 10/100Mbps self-adaptive Ethernet interface
• 1 VGA output / 1 HDMI output (up to 4K)
• Intelligent Video Analysis Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Stationary Object Detection (SOD), Pedestrian Detection (PD), Face Detection (FD), Cross Counting (CC), Sound Detection, Video Tampering, Face recognition, Human & Vehicle detection, Intruder detection. Vehicle detection , Perimeter intrusion detection (Advanced PID), Line crossing Detection (Advanced LCD), Cross Counting ,*Heat Map , Attribute detection, Face attendance - (algorithms available depending on camera model)
• 1TB HD included
• Dimensions (WxHxD) 300X53X227mm.

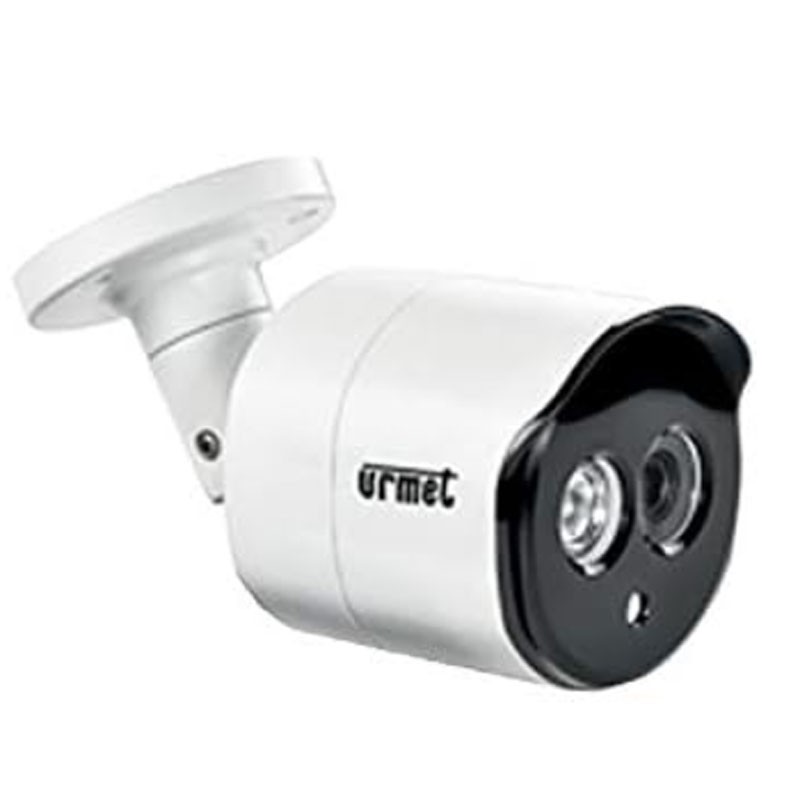

Compact camera Eco IP 5m fixed lens 2.8 mm:

• Ideal for application in public places and environments that require high definition images: shopping malls, supermarkets, schools and industries, banks and traffic control systems
• Sensor: 1/2.7" Progressive Scan CMOS
• Optics: fixed 2.8mm
• Netbrake function
• Video compression: H.265(main profile)/H.264/MJPEG
• Encoding Resolution: Mainstream(1-15fps/5MP and 1-25fps/4MP/3MP/1080P/720P)
• 2592x1944, 2592x1520, 2048x1520, 2304x1296, 1920x1080, 1280x960, 1280x720
• Substeam(1-10fps) 640x480, 320x240
• Sensitivity:0.05 Lux (F1.2, AGC ON), 0 Lux with IR
• 3D DNR - BLC
• DWDR
• Mechanical IR filter
• N. IR Led / Illumination distance: 1pcs (ARRAY) / Approx. 30m
• IR cut filter
• Built-in Web Browser
• Onvif Ver 2.6
• Degree of Protection: IP66
• Power Supply: 12VDC, POE (802.3af)
• Power consumption: 2W(D) / 3.8W(N)
• Dimensions (WxHxD in mm) 150x76,5x76
• Weight 455g.

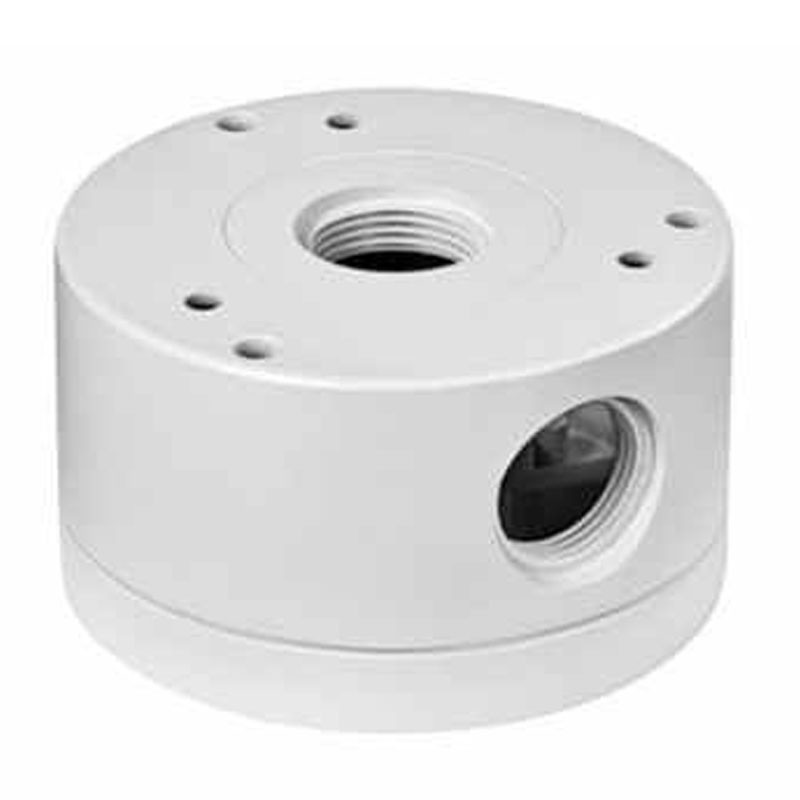

Small size junction box:

• The new range of junction boxes is designed to facilitate the installation of multiple cameras in different configurations: ceiling, pole (with appropriate adapter), wall
• Diam x H: 100.5 x 56 mm
• Weight: 300g.
