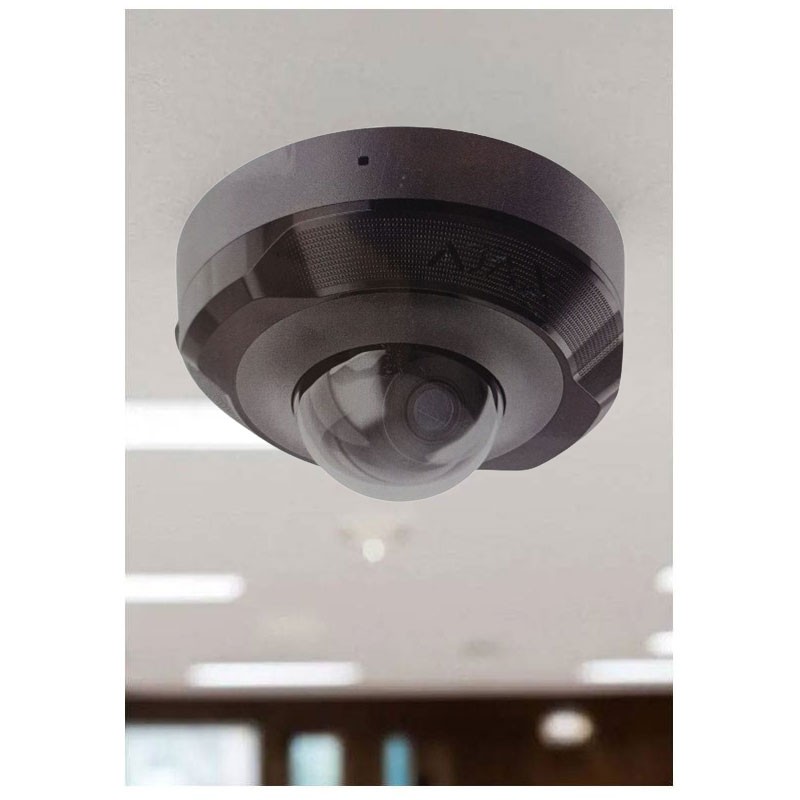

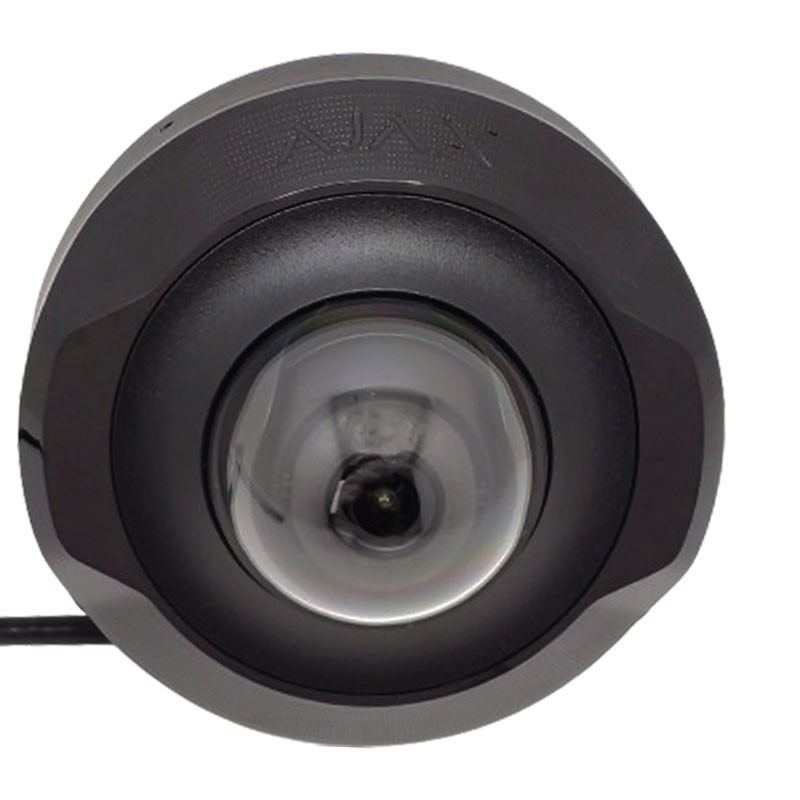

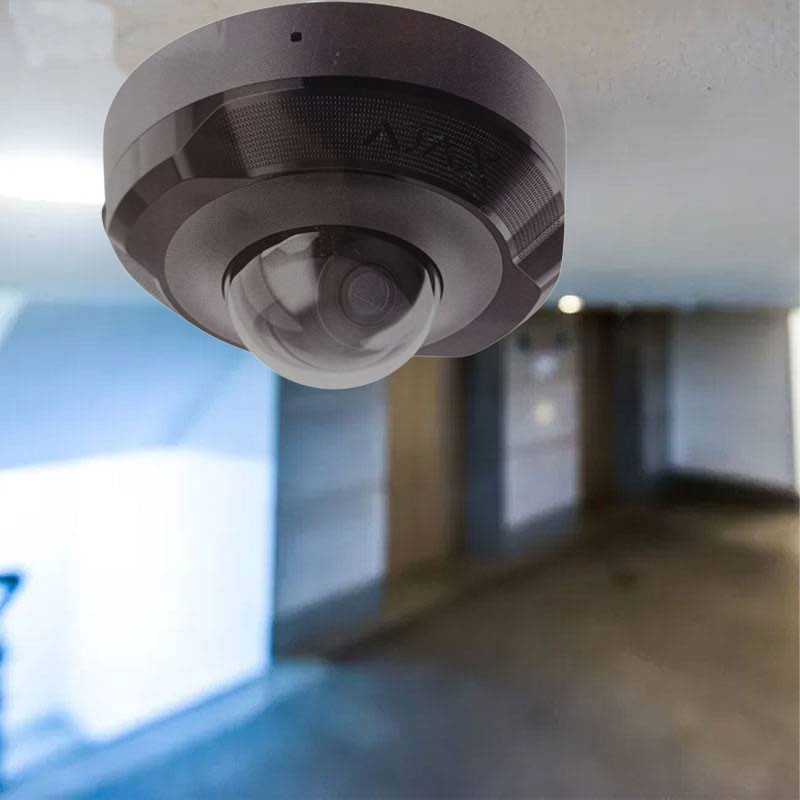

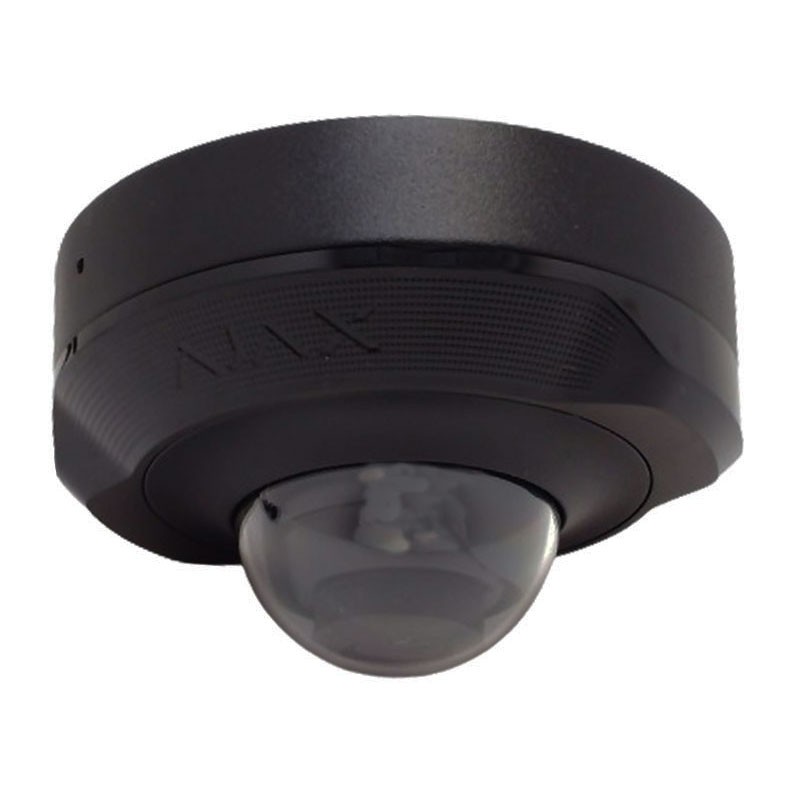

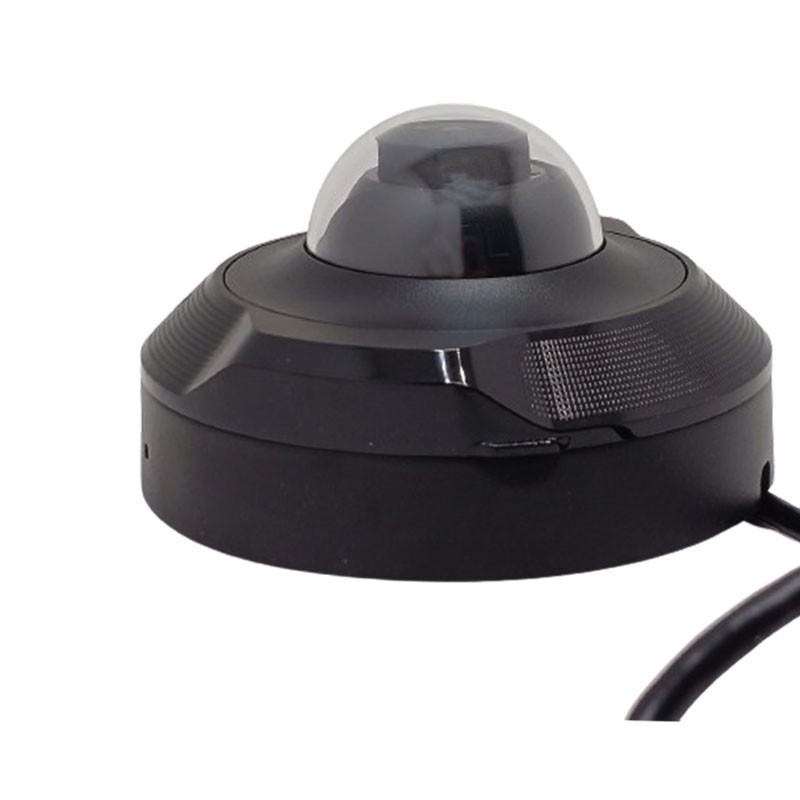

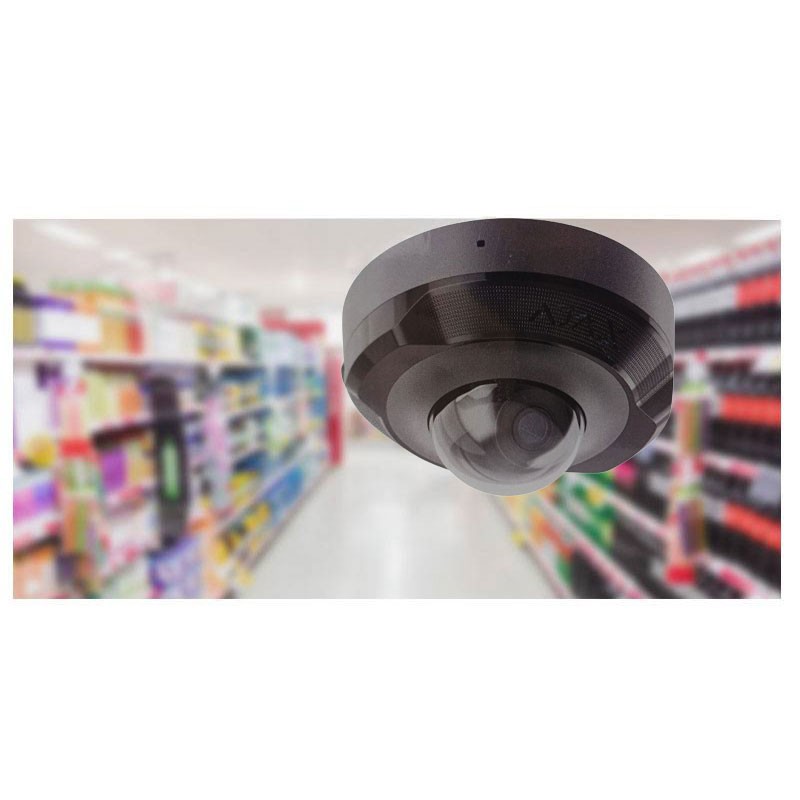

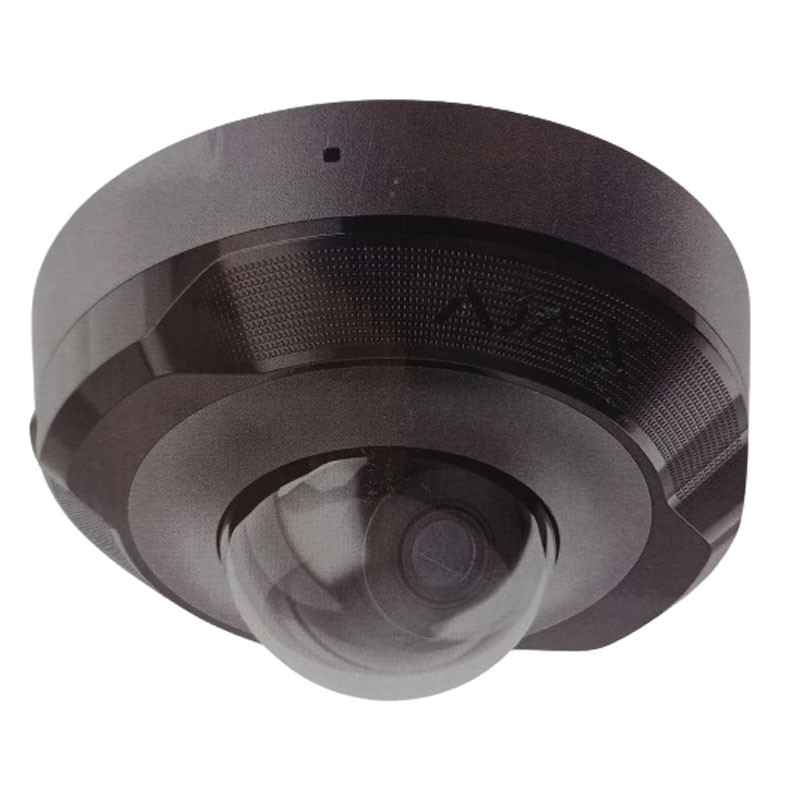

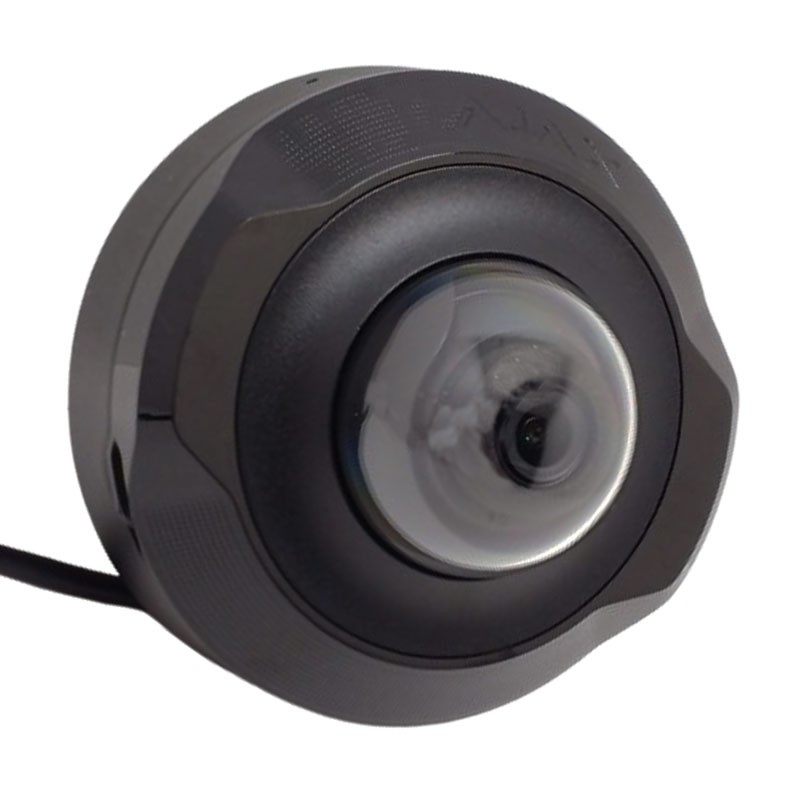

Ajax DomeCam Mini IP Camera 5MP Optical 4mm IP65 Black

Ajax System
08T 76021 4823114047848

Ajax DomeCam Mini Camera:



  • Wired IP system
  • Resolution up to 2880 × 1620 px 5MP
  • 4mm lens
  • Frame rate 25 FPS
  • Viewing angle from 75° to 85°
  • IP65 degree of protection
  • Black color



This camera is compatible with the following Ajax control panels:

  • Hub
  • Hub Plus
  • Hub 2 (2G)
  • Hub 2 (4G)
  • Hub 2 Plus
  • Hub Hybrid (2G)
  • Hub Hybrid (4G)




In addition, Ajax cameras can also work without NVR (codes 70935/70938), as long as it is connected to the Internet, and to the intrusion control panel.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Ajax DomeCam Mini IP Camera 5MP Optical 4mm IP65 Black
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Discover the Ajax Dome Video Surveillance Kits available:

Frequently bought together

DomeCam Mini is an IP camera with intelligent infrared (IR) backlight and object recognition function. The user can view archived video materials and online videos in Ajax apps. To store captured data, a micro SD card must be installed or the camera must be connected to the NVR with a hard disk installed.

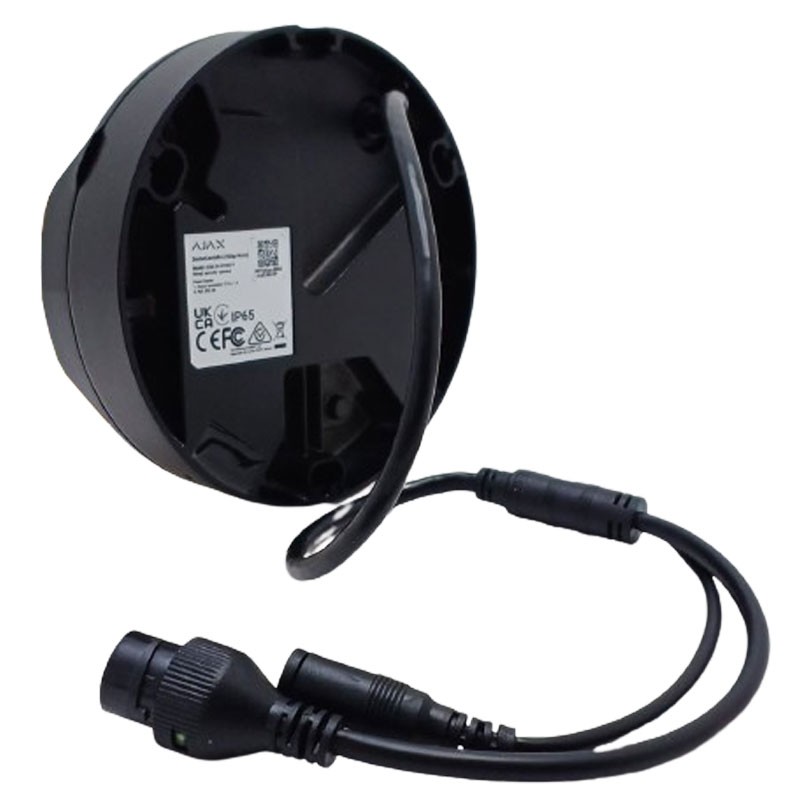

The camera is connected to the network via Ethernet using the corresponding connector.



Product Overview:

  • DomeCam Mini is an IP camera that uses artificial intelligence (AI) for object recognition. Its algorithms can identify moving objects, distinguishing between humans, animals or vehicles
  • The device has an intelligent IR backlight, which ensures the capture of high-quality images even in low-light conditions. The camera automatically adjusts the intensity of the backlight in real time to avoid overexposure, allowing clear visibility of objects far away or too close to the camera in low-light conditions
  • A microSD card with a memory capacity of 8 GB to 256 GB (not included in the complete camera set) can be installed. In addition, the device can operate without a memory card or via NVR



With DomeCam Mini you can:

  • Watch videos in real time, with the ability to zoom in for a closer look
  • Access archived videos, browsing through them based on recording history and calendar (this feature is available if a micro SD memory card is installed in the camera or if it is connected to the NVR with a hard drive installed)
  • Configure motion detection zones and adjust the sensitivity level
  • Display the Videowall that combines images from all connected cameras
  • Create video scenarios that send a short video from the selected camera to the Ajax app when the detector is activated



Video scenarios:

  • The Ajax system provides the ability to use IP cameras for alarm verification. Video scenarios allow alarms to be confirmed with corresponding videos from the cameras installed in the system
  • Cameras can be configured to respond to alarms from a single device, multiple devices, or all connected devices. Combined detectors can record different types of alarms, allowing responses to one type of alarm, several or all types to be configured



Videowall:

  • The user can manage videos in the Videowall tab, accessible once at least one camera has been added. This feature provides quick access to all connected cameras, displayed according to privacy settings



Features:



Video Streaming:

  • JetSparrow video protocol Fast, encrypted peer-to-peer video protocol developed by Ajax Systems
  • Storage: NVR or microSD Storage device not included
  • H.265 - H.264 codecs
  • Dynamic ranges HDR - WDR



Communication channels:

  • Ethernet up to 100 Mbps



Motion detection:

  • The camera has software to detect motion in the image



Object detection:

  • Using artificial intelligence
  • Humans
  • Pets
  • Vehicles



Intelligent IR illumination up to 30 m:

  • Real-time automatic intensity adjustment to avoid overexposure. This allows objects far away or too close to the camera to be seen in low light conditions



Active zone:

  • The camera focuses on certain areas of the view where the device detects motion



Visual verification for Ajax alerts:

  • The system allows you to set up a scenario in which Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app



Microphone:

  • With the corresponding settings, the camera records sound in the system



Power supply:

  • 12 V± 20% power supply, 1 ? Up to 7.5 W of mains power supply
  • Ethernet port Standard PoE 802.3at



Anti-sabotage protection:

  • mTLS Encrypted connection for data protection
  • Authentication via Cloud Without local access rights
  • Secure Boot Protection against firmware forgery
  • OTA signature verification Secure automatic firmware update
  • Privacy Distribution of access rights for users in mobile apps and for CRA operators in PRO Desktop



Case:

  • 113 × 60 mm dimensions
  • Weight 360 gr.
  • Operating temperatures from ?25°C to +40°C
  • Maximum allowable humidity up to 90 percent
  • Protection class IP65 also for outdoor use



Package includes:

  • DomeCam Mini (5 Mp/4 mm)
  • Installation diagram

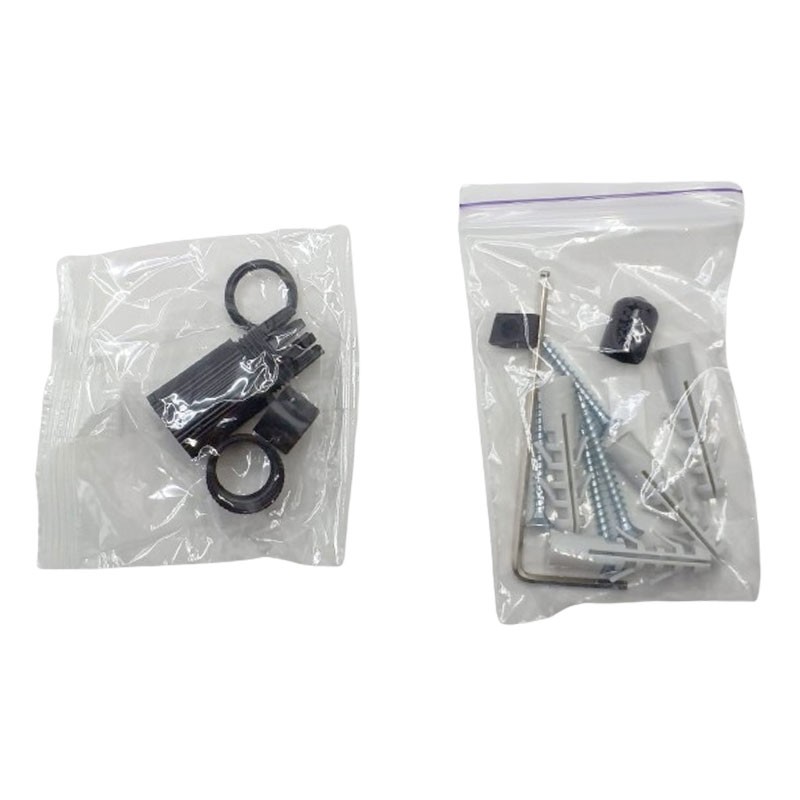

  • Installation kit
  • Quick Start Guide

There are no reviews

Data sheet

Colour:
Black
Type:
Dome cameras
Degree of protection:
IP65
System:
IP
Optical:
4mm
Resolution:
5MP
