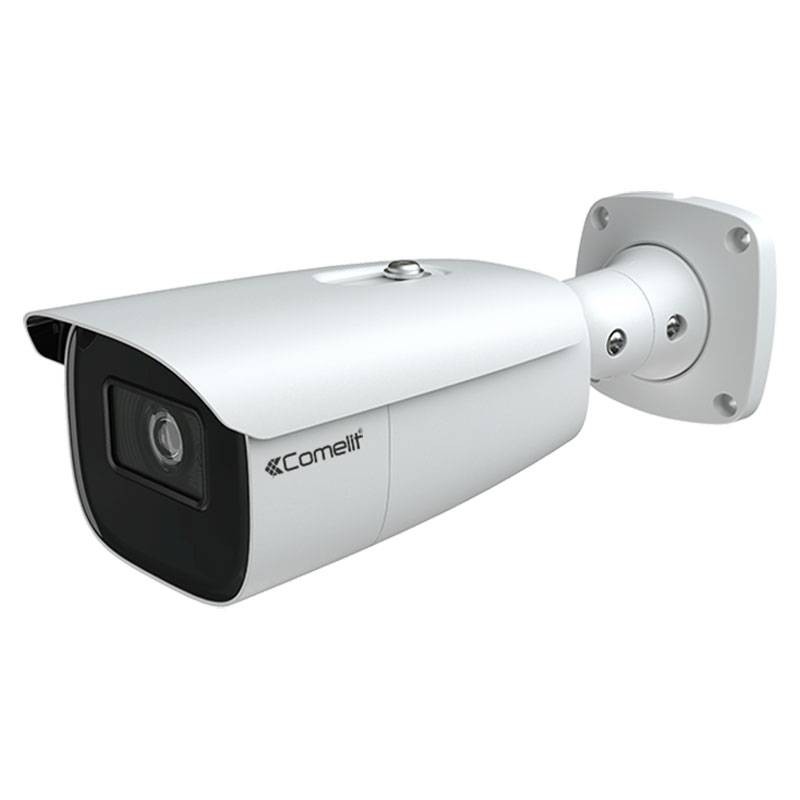

Comelit Advance Big bullet IP camera 4MP optical 2.8-12mm IP67 IPBCAMA04Z01C
COE IPBCAMA04Z01C
8023903446753
Comelit Advance series big bullet camera:
- IP system
- 2.8÷12mm motorized lens with autofocus function
- 4MP@30 fps resolution
- High frame rate function supported (2MP@60 fps)
- IR LED with a range of 70 meters (SMART IR)
- ONVIF compatible (S profile and G profile)
- IP67 degree of protection
- 12VDC/PoE IEEE802.3af power supply.
Mounting accessories to be purchased separately: JBA-BA - WMA-BA - PMA-A - CMA-BA - AMA-A.
![](https://www.elettronew.com/67747-large_default/comelit-advance-big-bullet-ip-camera-4mp-optical-2-8-12mm-ip67-ipbcama04z01c.jpg)
Comelit Advance Big bullet IP camera 4MP optical 2.8-12mm IP67 IPBCAMA04Z01C
€317.21
€317.21
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 6
Frequently bought together
Features:
- 1/3'' CMOS camera sensor
- Motorized lens type
- Lens size varifocal lens (mm) 2.8÷12
- Horizontal field of view (°) 102.7÷32.2
- Vertical field of view (°) 57.22÷18.15 (± 5%)
- Diagonal field of view (°) 102÷33.9
- Electronic shutter (s) 1/25÷100000
- Sensitivity 0.005 (color), 0 (black and white, IR led ON)
- Signal-to-noise ratio (dB) >50 (AGC OFF)
- IR Filter Mechanical
- Video transmission Triple streaming
- Management software Comelit Advance VMS
- Video resolution (H x V - pixels) 2592x1520 (4MP)
Software/firmware features:
- H.264 / H.264+ / H.265 / H.265+ video compression.
- Frame rate 30/60fps
- Supported protocols DDNS, Comelit DNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTSP, SMTP, UDP, UPnP, SNMP, IEEE 802.1x, ONVIF - (Profile-S, Profile-G), RTMP
- Firmware upgrade via network Yes
- Simultaneously connected users 10 (live)
- Network security Multi-user authorization, HTTPS, AES encryption, RTSP verification
- Remote viewing from Internet Explorer, Firefox, Chrome, Safari browsers
- Remote control from mobile app Comelit Advance (Android, iOS)
Features:
- Motion detection (zones) 396
- Privacy zones (no.) 4
- Backlight compensation (BLC) BLC, HLC
- Digital effects Corridor mode (90° / 180° / 270° rotation), Defog,
- Mirror (Horizontal, Vertical, 180° Rotation), ROI Zones
- Lens Distortion Correction
- Wide Dynamic Range (WDR) WDR (120dB)
- 3D-DNR Control
- White balance adjustment AWB, Indoor, Manual, Outdoor
- Brightness adjustment Yes
- Image Flip Yes
- Automatic Gain Control (AGC) Yes
- Camera titration Yes
Video analysis:
- Scene change detection
- Facial recognition
- Video tampering detection
- Line crossing detection (distinction between humans/vehicles)
- Entry/exit/area intrusion detection (distinction between humans/vehicles)
- Abandoned / removed object detection
- Counting humans / vehicles
- Heat map
- Metadata analysis
- Prohibited parking
- Wandering
- Audio anomaly
Hardware Features:
- IR led illumination distance 4 led arrays / 70m (Smart IR)
- Vandal-proof degree of protection IK IK10
- IP67 degree of protection
- Alarm inputs/outputs 1/1
- Audio inputs/outputs 1 (RCA) / 1 (RCA) (G.711u / G.711a)
- Analog video output CVBS (BNC)
- LAN output type Ethernet 10/100 Mbit/s (RJ45)
- SD card support (card not supplied) Micro-SD (256GB max)
- Power supply voltage 12VDC
- Power consumption max (W) 9
- PoE Power Supply IEEE 802.3af Standard
- Power Supply Type PoE, External Power Supply
- Dimensions Height (mm) 100 - Width (mm) 278 - Depth (mm) 88
- Product Weight (g) 1040
- Casing Material Type Die-cast aluminum
- Case Type Bullet
- Product color White
- Operating temperature (°C) -30 to 60
- Operating humidity (RH max) (%) 25 ÷ 95
Data sheet
- Type:
- Bullet cameras
- Degree of protection:
- IP67
- System:
- IP
- Optical:
- 2.8-12mm
- Resolution:
- 4MP (2K)
