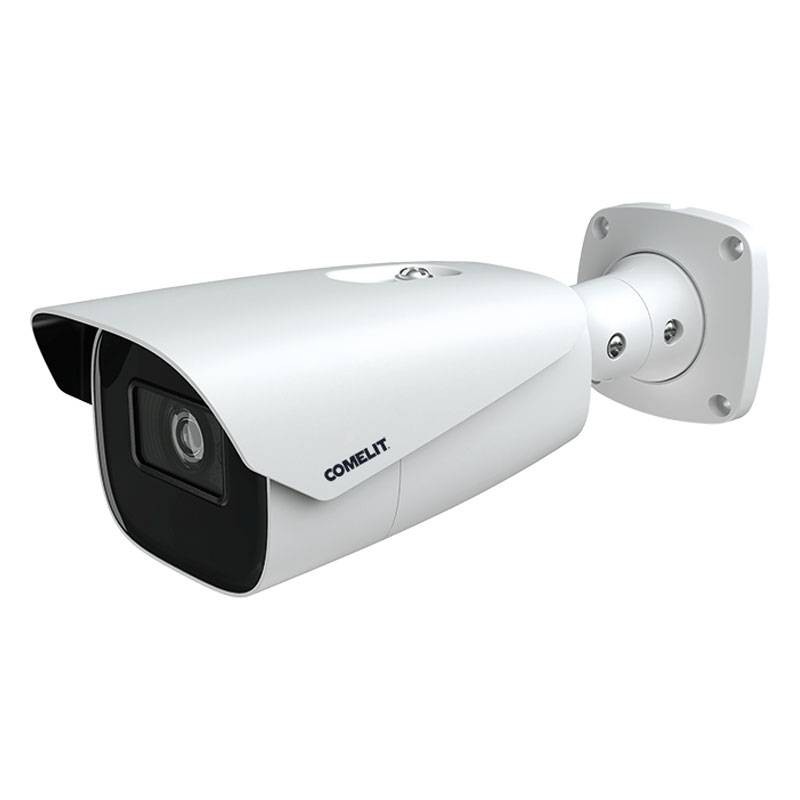

Comelit Advance IP Bullet Camera LPR 4MP 8-32mm IP67 IPLPRA04ZSWA

Comelit
COE IPLPRA04ZSWA

Comelit Advance Bullet IP Camera:

  • IP System
  • LPR license plate reading
  • 8-32mm motorized lens with autofocus function
  • 4MP@30/60 fps resolution (High frame function (60fps) is supported only by Advance 32/64/128ch series NVRs)
  • 1/1.8" CMOS Ultra Starlight camera sensor
  • Maximum transit detection speed 90km/h (55.92 mph)


Mounting accessories to be purchased separately:

  • WMAKTBBA wall bracket
  • Ceiling Bracket CMAKTBBA
  • IP66 connection box JBATBBA
  • Pole bracket PMA-A
  • Corner bracket AMA-A
Do you have questions about this product or did you not find what you were looking for? Ask us!
Comelit Advance IP Bullet Camera LPR 4MP 8-32mm IP67 IPLPRA04ZSWA
€634.58
€634.58

€634.58
Tax included
Items Available: 1
Further availability of the manufacturer
€634.58

Buy it within and receive it from Thursday, 20 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Advantages:

  • Wiegand standard W26 output
  • IR LEDs with a range of 70 meters
  • ONVIF compatible
  • Ability to create authorized and unauthorized lists, unknown license plate recognition
  • Video analysis functions: Scene change detection and video tampering
  • WDR 120Db
  • H.265+ / H.265 / H.264+ / H.264 / MJPEG compression, SD slot (max 256GB)
  • Audio: 1 in, 1 out
  • Alarms: 1 in, 1 out
  • IP67 waterproof die-cast aluminum enclosure
  • 12VDC/PoE power supply
  • Camera sensor 1/1.8"
  • CMOS Ultra Starlight
  • Lens Type Autofocus, Motorized
  • Lens size varifocal optics (mm) 8÷32
  • Horizontal field of view (°) 41÷15
  • Vertical field of view (°) 23÷9.5
  • Diagonal field of view (°) 46÷18
  • Maximum transit detection speed 90km/h (55.92 mph)
  • Electronic shutter (s) 1/1÷1/100000
  • Sensitivity 0.001 (color), 0 (black and white, IR led ON)
  • Signal-to-noise ratio (dB) >50
  • Video transmission Triple streaming
  • Comelit CCTV Manager management software
  • 4MP video resolution

Software/Firmware Features

  • H.265+ / H.265 / H.264+ / H.264 / MJPEG video compression
  • Frame rate 30/60fps
  • Supported protocols DDNS, Comelit DNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTSP, SMTP, UDP, UPnP, ONVIF, IEEE 802.1x
  • Wiegand W26
  • Firmware update via network Yes
  • Remote viewing by browser Internet Explorer, Firefox, Chrome, Safari
  • Remote control from mobile Comelit CCTV APP

Features:

  • Motion detection (zones)
  • Video analysis Scene change detection, Video tampering detection, Blurred image detection
  • Compensation against light (BLC) BLC, HLC
  • Digital effects Corridor mode (90° / 180° / 270° rotation), Defog, Mirror (Horizontal, Vertical, 180° rotation), ROI zones
  • Wide Dynamic Range (WDR) WDR (120dB)
  • 3D-DNR Control
  • White balance adjustment AWB, Indoor, Manual, Outdoor
  • Camera Titration

Hardware Features:

  • IR led illumination distance 70m
  • Vandal-proof rating IK IK10
  • IP67 degree of protection
  • Alarm inputs/outputs 1/1
  • Audio inputs/outputs 1/1
  • LAN output type Ethernet 10/100 Mbit/s (RJ45)
  • SD card support (card not supplied) - Micro-SD (256GB max)

General data:

  • Supply voltage 12VDC
  • Power consumption max (W) 12
  • PoE Power Supply IEEE 802.3af Standard
  • PoE power supply type, External power supply
  • Dimensions: Height (mm) 88.9 - Width (mm) 100.3 - Depth (mm) 279.5
  • Casing Material Type Die-cast aluminum
  • Case Type Bullet
  • Product color White
  • Operating temperature (°C) -30 to 60
  • Operating humidity (RH max) (%) 25 ÷ 95

There are no reviews

Data sheet

Type:
Bullet cameras
Degree of protection:
IP67
System:
IP
Optical:
8-32mm
Resolution:
4MP (2K)
