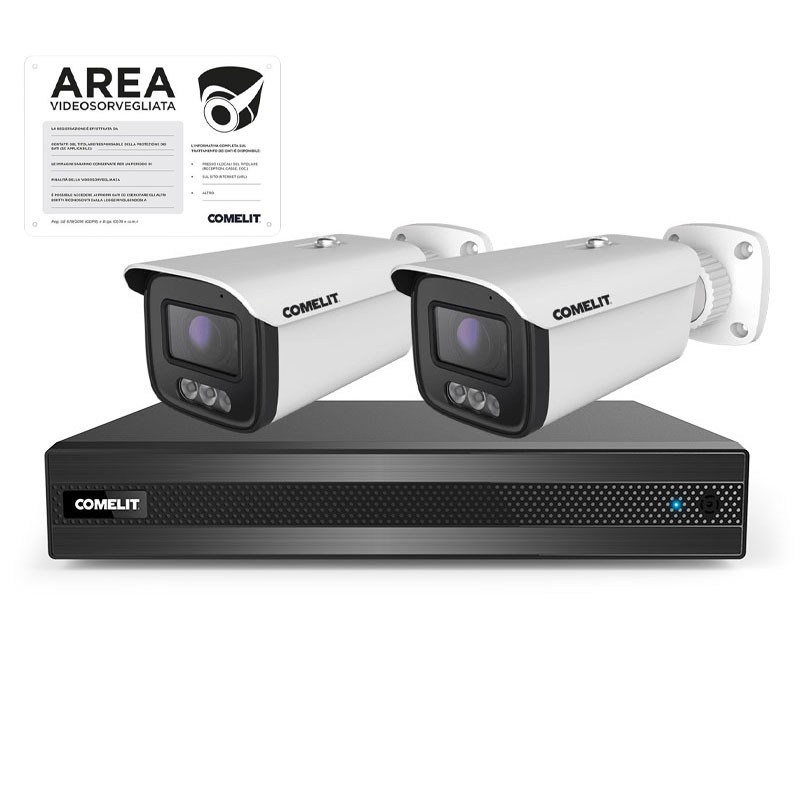

Kit component specifications:

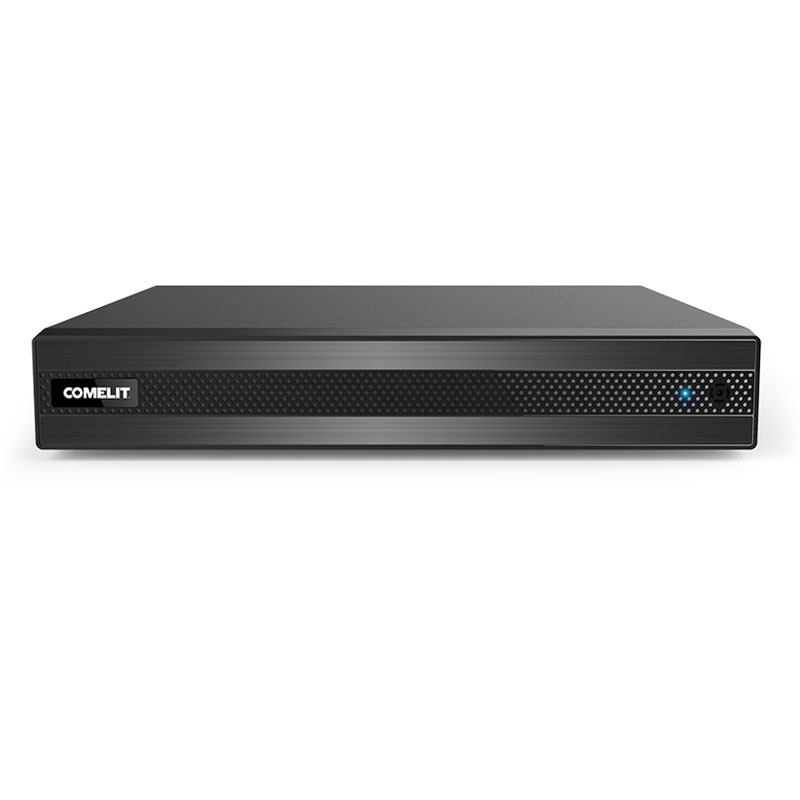

1 piece video recorder NVR 8CH, 6MP, POE, AI, HDD 1TB (part number NIPNVR008N06PA): Network Video Recorder (NVR) for 8 IP channels (8 PoE), max resolution 6MP, video compression H.265S / H.265+ /H.265 /H.264, dual streaming, supports video analytics functions (Line Crossing Detection, Area Intrusion Detection), license plate database. Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari. Remote control via Comelit CCTV APP and Comelit CCTV Manager software. 48V power supply included. This NVR connects to Comelit's servers protected by AWS services.




NVR features:

• Video inputs 8 (8PoE) @6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
• Main video outputs 1 (VGA), 1 (HDMI), 1920x1080
• Video compression H.265S / H.265+ / H.265 / H.264
• Frame rate in playback / recording 20fps@6MP
• Included hard disk capacity 1TB (6TB max)
• Recording methods Automatic, manual, scheduled, event
• Recording type Dual streaming
• Maximum no. of live channels that can be viewed simultaneously 8
• Supported protocols DHCP, HTTP, HTTPS, PPPoE, RTSP, SMTP, TCP, ONVIF
• DHCP IP assignment, manual
• Maximum bandwidth (Mbps) 40
• Remote control from IE/Chrome/Edge/Firefox/Safari browser
• Remote control from Comelit CCTV Manager software
• Remote control from mobile APP Comelit CCTV
• Simultaneously connected users 10
• Main functions Video analysis (only with dedicated cameras), Parking management function, Alarm system function
• Motion detection (zones) 396
• Privacy zones (no.) 4
• Type of connections/ports 1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0, 8 x Ethernet PoE 10/100 Mbit/s
• Fanless Yes
• Maximum Power Consumption (W) 6
• Maximum power consumption per POE port (W) 12
• POE total power (W) 80
• Supply voltage (VDC) 48
• Dimensions: Height (mm) 42 Width (mm) 255 Depth (mm) 222
• Product weight (g) 2300
• Type coating materials Metallic
• Product color Black
• Operating temperature (°C) -10 to 50
• Operating humidity (RH max) (%) 25 ÷ 90
• Included Accessories Power Supply, Mouse

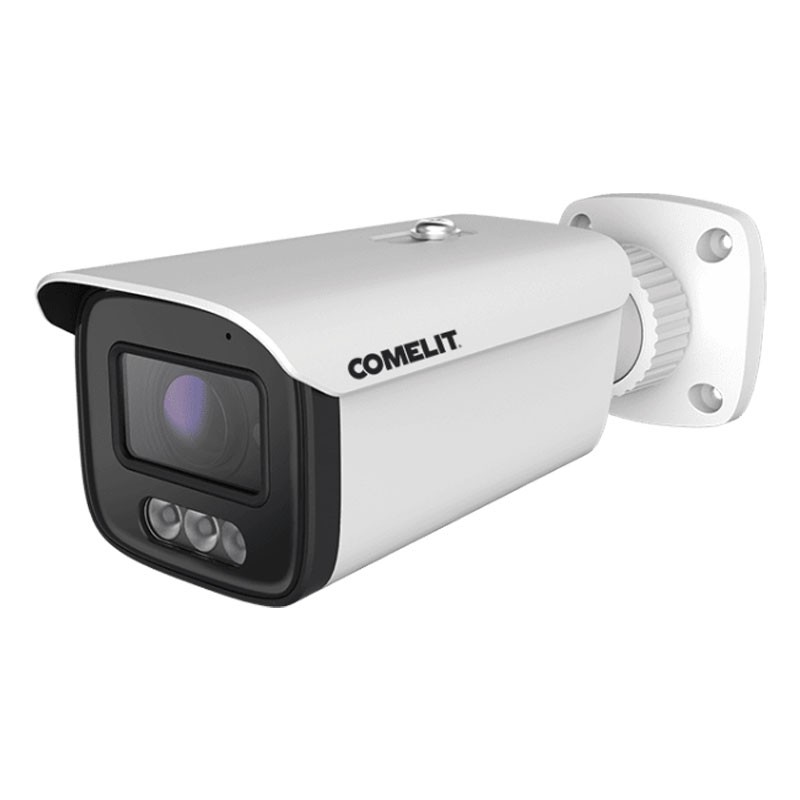

2 pcs 4MP IP bullet cameras, 2.8-12MM, AI (code IPBCAMN04ZA): Next series bullet IP camera, 2.8÷12mm motorized optics, 4MP@30 fps resolution, IR LEDs with 50-meter range (Smart IR), ONVIF compatible. Video analysis functions: Area intrusion (person/vehicle distinction), line crossing (person/vehicle distinction). WDR 120Db, H.265/H.264 video compression, SD slot (max 256GB). Audio: 1 in. IP67 waterproof die-cast aluminum enclosure, 12VDC/ PoE IEEE802.3af power supply. Browser compatible: IE/Google Chrome/Edge/Firefox/Safari. Compatible accessories to be purchased separately: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.




Technical characteristics of the two cameras:

• Camera sensor: 1/3" CMOS Ultra Starlight
• Lens Type: Motorized
• Effective Pixels: 2560x1440
• Varifocal optical lens size: 2.8-12 mm
• Horizontal field of view: 92.7/29.8 degrees
• Vertical field of view: 48/17 degrees
• Diagonal field of view: 110.6/36.4 degrees
• Video transmission: Triple streaming
• Management software: Comelit CCTV Manager
• Video resolution: 4MP
• IR LEDs with a range of 50 meters



Software/firmware features:

• H.264, H.265, MJPEG video compression
• Frame rate 30fps
• Supported protocols DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, PPPoE, RTSP, SMTP, UDP, ONVIF
• Firmware update via network Yes
• Simultaneously connected users 3 (live)
• Remote viewing from Internet Explorer, Firefox, Chrome, Safari browsers
• Remote control from mobile APP Comelit CCTV



Features:

• Main functions 3D-DNR, BLC, Defog, HLC
• Motion detection (zones) 396
• Privacy zones (no.) 4
• Backlight compensation (BLC) BLC
• Wide Dynamic Range (WDR) WDR (120dB)
• 3D DNR control
• White balance adjustment AWB, Indoor, Manual, Outdoor Exposure control Manual, Automatic
• Brightness Adjustment Yes
• Camera Titration Yes




Hardware Features:

• IR led illumination distance 50m
• Vandal-proof rating IK IK10
• IP67 degree of protection
• Audio inputs/outputs 1/0
• LAN output type Ethernet 10/100 Mbit/s (RJ45)
• SD card support (card not supplied) Micro-SD (256GB max)



Features:

• Supply voltage 12VDC
• Power consumption max (W) 8
• PoE power supply Yes
• Height (mm) 70.4
• Width (mm) 79.5
• Depth (mm) 218.1
• Product weight (g) 670
• Type coating materials Die-cast aluminum
• Case type Bullet
• Product color White
• Operating temperature (°C) -30 ÷ 60
• Operating humidity (RH max) (%) 25 ÷ 95
