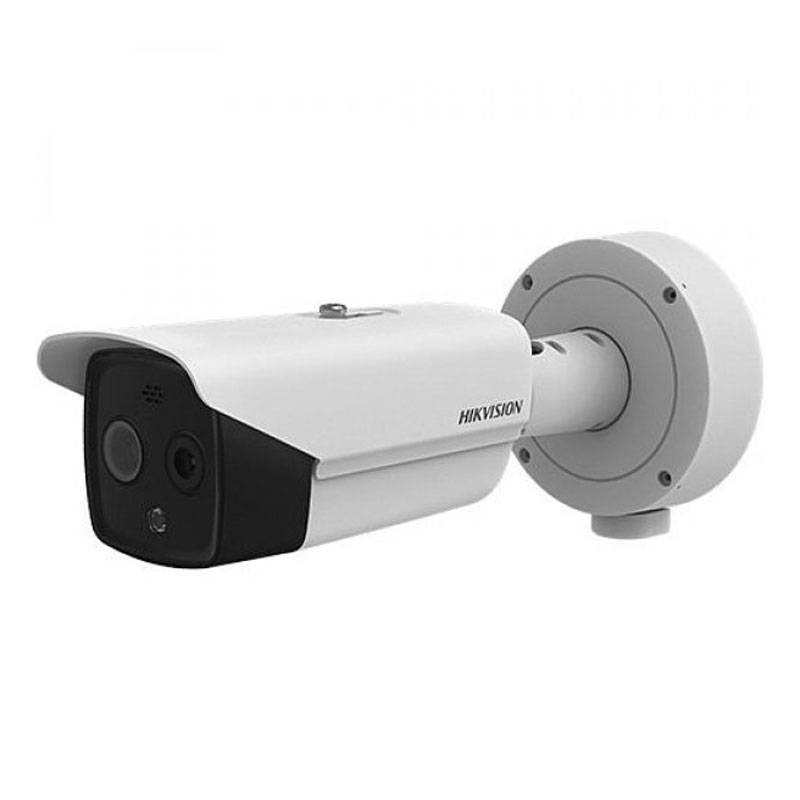

Hikvision BI-Spectrum DS-2TD2617-3/QA Thermal Bullet Camera 305401852
HIK 305401852
Hikvision BI-Spectrum DS-2TD2617-3/QA Thermal Bullet Camera:
- Optical Progressive Scan CMOS Sensor
- 4MP Resolution
- Thermal Sensor 160×120 17m
- Thermal Optics 3mm
- Visible Optics 4mm
- IR Range 40m
- Inputs/Outputs Audio 1/1, Alarm 2/2
- IP66 Degree of Protection
Compatible accessories to be purchased separately: codes 302700239 - 302702337.
€844.64
€844.64
Tax included
Tax included
Items Available: 2
: 1
Frequently bought together
Features:
- 160×120 resolution
- Pixel Pitch 17 m
- Spectral Range 8 m to 14 m
- NET < 40 mK (@ 25 °C, F# = 1.1)
- Focal Length 3.1 mm
- IFOV 5.48 m
- Field of View 50.0° × 37.2° (W × V)
- Minimum Focusing Distance 0.2 m
- Aperture F1.1
- Digital Zoom ×2, ×4
- 1/2.7" Progressive Scan CMOS Image Sensor
- Resolution 2688×1520
- Minimum Illumination 0.0089 Lux @(F1.6,AGC ON),0 Lux with IR
- Shutter speed 1s to 1/100,000
- Focal Length 4 mm
- Field of View 84.0° × 44.8° (W × V)
- Aperture (Interval) F1.6
- WDR 120dB
- Target Coloration YES. Supported in warm white and warm black mode
- IR Distance Up To 40m
- IR Intensity And Angle Automatically Adjusted
- Visual Alarm YES. White light alarm with adjustable blink frequencies
- Audible Alarm: YES, for two types of audible alarm (VCA and temperature exception) 2 preset voice alerts (one each) 6 user-defined importable voice alerts (6 options shared in the two types)
- VCA 4 types of VCA rules (line crossing, intrusion, region entry and region exit), up to 8 VCA rules in total
- Temperature Measurement 3 types of temperature measurement rules, 21 rules in total (10 points, 10 areas and 1 line)
- Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy ± 8 °C (± 14.4 °F)
- General Function Fire detection, smoke detection, anti-glare filter
- Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
- Network Storage MicroSD/SDHC/SDXC card (up to 256 GB) local storage, NAS (NFS, SMB/CIFS), automatic network replenishment (ANR)
- ISAPI API, HIKVISION SDK,ISUP and third-party management platform, Open Network Video Interface, ONVIF (S Profile, G Profile, T Profile)
- Simultaneous Live Viewing Up to 20 channels
- User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
- Security User authentication (ID and PW), MAC address association, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- Client iVMS-4200, Hik-Connect
- Network Navigation Program Live display (plug-in allowed): Internet Explorer 11 Live view (no plug-ins allowed): Chrome 57.0 +, Firefox 52.0 + Local service: Chrome 57.0 +, Firefox 52.0 +
- Power Supply 12 VDC ± 25% coaxial power plug, ? 5.5 mm
- PoE (802.3af, class 3)
- Power Consumption 12 V DC ± 25%: 0.5 A, maximum 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, maximum 6.5 W
- Temperature/Working Humidity
- Temperature: -40°C to 65°C (-40°F to 149°F)
- Humidity: 95% or less
- Protection Level Standard IP67
- Dimensions 358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.35")
- Weight Approx. 1.76 kg (3.88 lbs.)
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP66
- System: IP
- Optical: 4mm
- Resolution: 4MP (2K)
