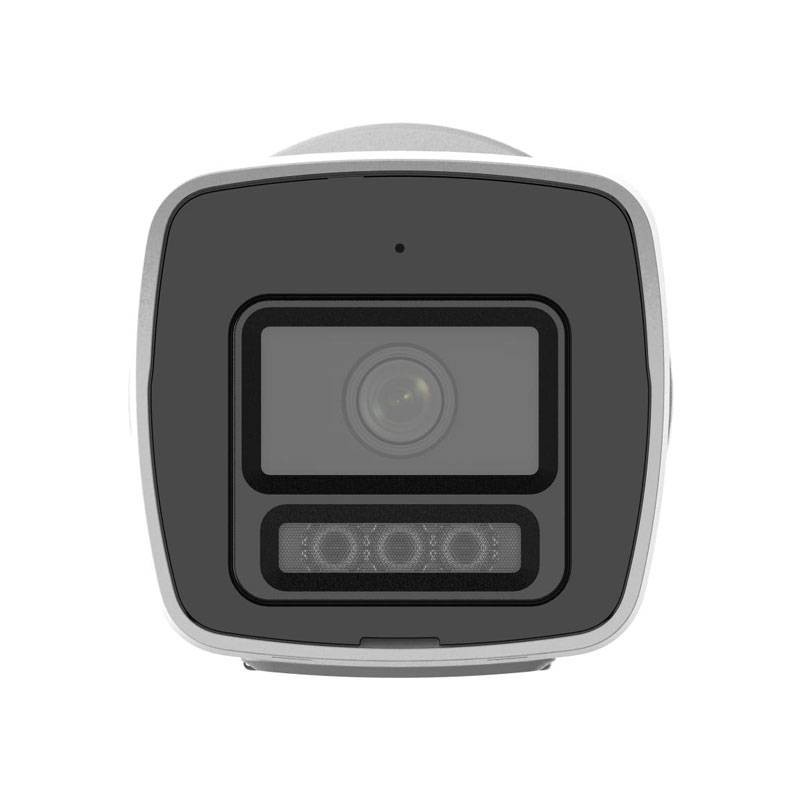

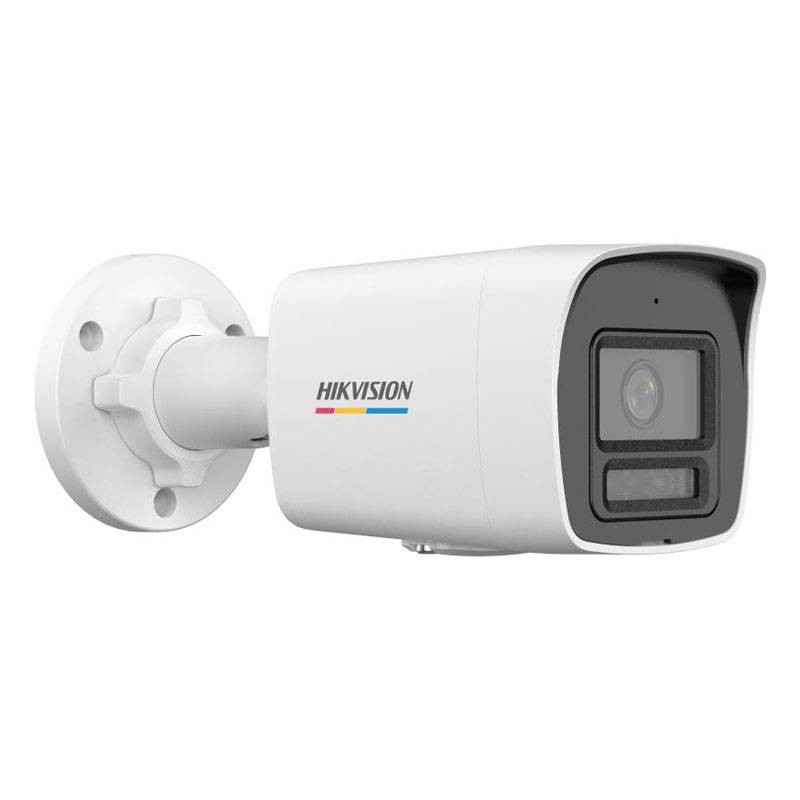

Hikvision ColorVu Bullet Camera DS-2CD1047G2H-LIU IP 4MP 2.8mm 311325490
HIK 311325490
6942160448015
Hikvision ColorVu DS-2CD1047G2H-LIU Bullet Camera:
- IP System
- Lens Type: Fixed 2.8mm
- Maximum resolution 2560x1440 pixels at 4 MP
- Sensor: 1/3" Progressive scan CMOS
- Field of view: Horizontal 115 degrees - Vertical 60 degrees - Diagonal 143 degrees
- IR filter for night mode
- Lens mount type: M12
- Maximum fps: 25 in 1920x1080/1280x720 pixels
- Video format: H.265+/H.265/H.264+/H.264
- Voltage: 12 Vdc
- Dimensions: 69.8x67.9x172.9 mm
- Supports built-in storage up to 512 GB
- Includes SD card slot
- Degree of protection: IP67
Accessory to be purchased separately Junction Box bracket code 302700955.
€152.29
€152.29
Tax included
Tax included
Items Available: 10
Frequently bought together
Camera:
- 1/3" progressive scan CMOS image sensor
- Maximum Resolution Size: 2560 × 1440
- Minimum Color Illumination: 0.001 Lux @ (F1.0, AGC ON)
- Shutter speed 1/3 s to 1/100,000 s
- Day and night
- IR filter
- Angle adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Lens:
- Lens type Fixed focal length lens, 2.8 and 4 mm optional
- Focal length and field of view 2.8 mm, horizontal field of view 115°, vertical field of view 60°, diagonal field of view 143°
- Lens mount M12
- Iris Type Fixed
- Aperture Version F1.0
Illuminator:
- IR supplementary light type, white light
- Supplementary Light Range Up to 30 m
- Intelligent integration light YES
- IR Wavelength 850 nm
Video:
- Main stream Frequency: 20 frames per second (2560 × 1440) - 25 frames per second (1920 × 1080, 1280 × 720) - 20 frames per second (2560 × 1440) - 24 frames per second (1920 × 1080, 1280 × 720)
- Underflow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) - 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video compression Main stream: H.265+/H.265/H.264+/H.264, Sub stream: H.265/H.264/MJPEG
- Video bit rate 32 Kbps to 16 Mbps
- Type H.264 Basic profile, Main profile, High profile
- Type H.265 Main Profile
- CBR,VBR bit rate control
- Scalable video encoding (SVC) H.264 and H.265 encoding
- Region of interest (ROI) 1 fixed region for main stream
Audio:
- Type of audio Mono sound
- G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC audio compression
- Audio bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio sampling frequency 8 kHz/16 kHz
- Ambient noise filtering YES
Network:
- Protocols IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
- Simultaneous live display Up to 6 channels
- API Open network video interface (S profile, T profile, G profile (supports -F model only)), ISAPI, SDK
- User/Host Up to 32 users - 3 user levels: administrator, operator and user
- Security Password protection, complicated password, watermark, basic authentication and digest for HTTP, WSSE authentication and digest for Open Network Video Interface, security check register, host authentication (MAC address)
- Client iVMS-4200,Hik-Connect
- Web browser Plug-in required for live viewing: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image:
- Image settings Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
- Day/Night switch Day, Night, Auto, Program
- Wide dynamic range (WDR) 120 dB
- Signal-to-noise ratio ? 52 dB
- Image enhancement BLC,HLC,3D DNR
- Privacy mask 4 programmable polygonal privacy masks
Interface:
- Ethernet interface 1 RJ45 10 M/100 M self-adaptive Ethernet port.
- On-board storage -F: Built-in memory card slot, supports microSD/microSDHC/microSDXC cards, up to 512 GB
- Built-in microphone Yes, 1 built-in microphone
- Reset button -F: Yes
Event:
- Basic event Motion detection (supports alarm activation by specific target types (human and vehicle)), video tampering alarm, exception
- Link Uploading to memory card (supports -F model), recording activation (supports -F model), upload to FTP, notification to surveillance center, emailing, capture activation
General:
- Power supply 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Material Front cover: metal, body: plastic, bracket: plastic
- Size 69.8 mm × 67.9 mm × 172.9 mm (2.7" × 2.7" × 6.8")
- Weight Approx. 550 g (1.2 lbs.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (no condensation)
- Start-up and operating conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (no condensation)
- General function Heart rate, anti-banding, mirror, password protection, password reset by e-mail
- Electromagnetic compatibility CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019 +A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Number 7
- Safety Italian: CEI standard EN 62368-1: 2014+A11, CE-LVD: EN 62368-1:2014/A11:2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No. 1907/2006
- IP67 protection: IEC 60529-2013.
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8 mm
- Resolution: 4MP (2K)
