Features:

• Motion Detection 2.0: Man/Vehicle Analysis 1 channel; 4 channels
• Recording: Video Stream Type, Video and Audio
• Audio Compression: G.711allegge/G.722/G.726
• IP Video Input 4 cap
• Incoming Bandwidth 40Mbps
• Outbound Bandwidth 80Mbps
• HDMI output: 1 channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1 channel, 4K（4096x2160）/30Hz, 4K (3840×2160) /30Hz, 2K（2560×1440 /60Hz, 1920×1080/60Hz, 1600×1200 /60Hz, 1280×1024/60Hz, 1280×720/60Hz; HDMI/VGA simultaneous output; 1 channel, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;  HDMI/VGA simultaneous output; 1 channel, 4k( 4096x2160）/30Hz, 4K (3840×2160)/30Hz, 2K (2560×1440）/60Hz, 1920×1080/60Hz, 1600×1200/60Hz, 1280 ×1024/60Hz, 1280×720/60Hz, Simultaneous output HDMI/VGA
• VGA output: 1 channel, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI/VGA simultaneous output; 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz; 1 channel, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;  HDMI/VGA simultaneous output
• Video Output Modes HDMI/VGA simultaneous output
• Audio Output: 1 channel, RCA (linear, 1 KΩ)
• Two-way Audio: 1 channel, RCA (2.0 Vp-p, 1 kΩ)
• Decoding Format: H.265+,H.265,H.264+,H.264
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding Capability: 1 channel at 8 MP (30 fps)/5 channels at 1080p (30 fps)
• Synchronous Playback: 4 cap
• Remote Connection: 32
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE Interface 4, Self-adaptive Ethernet interface RJ-45 10/100 Mbps - Power ≤ 50W - Standard IEEE 802.3af/at
• HOURS 1 SATA interface
• Capacity Up to 8 TB capacity per drive
• USB Interface 2 USB 2.0 ports
• Alarm Input/Output N/A (4/1 is optional)
• Power Supply 48 V DC, 1.35 A
• Power Consumption ≤ 10 W (without HDD and PoE disabled)
• Working Temperature -10 to +55º C (+14 to +131º F)
• Operating Humidity 10% to 90%

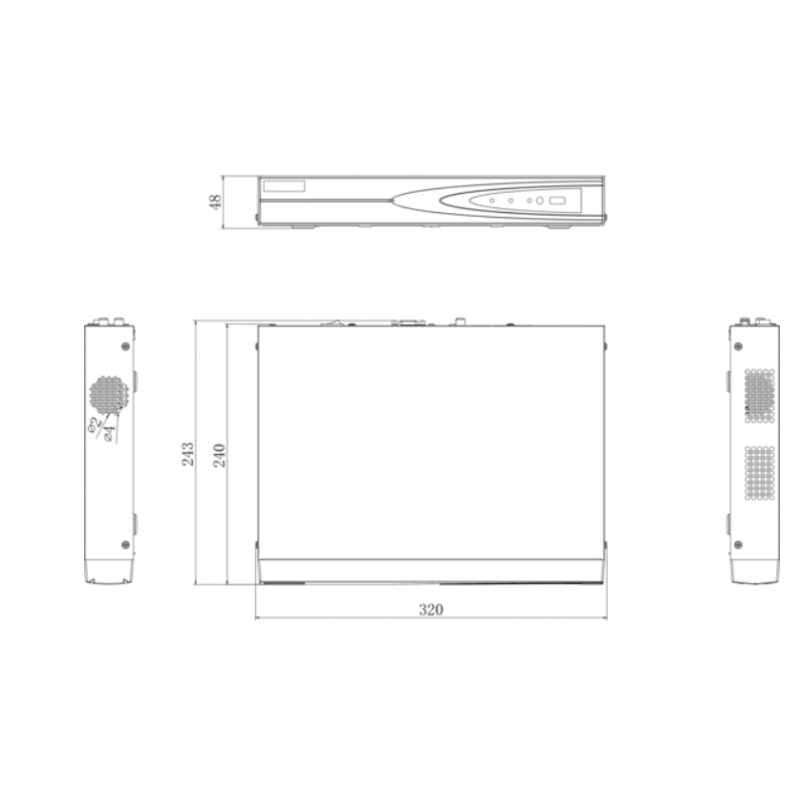

• Dimensions (W × D × H) 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Certification: Part 15 Chapter B, ANSI C63.4-2014 - EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
