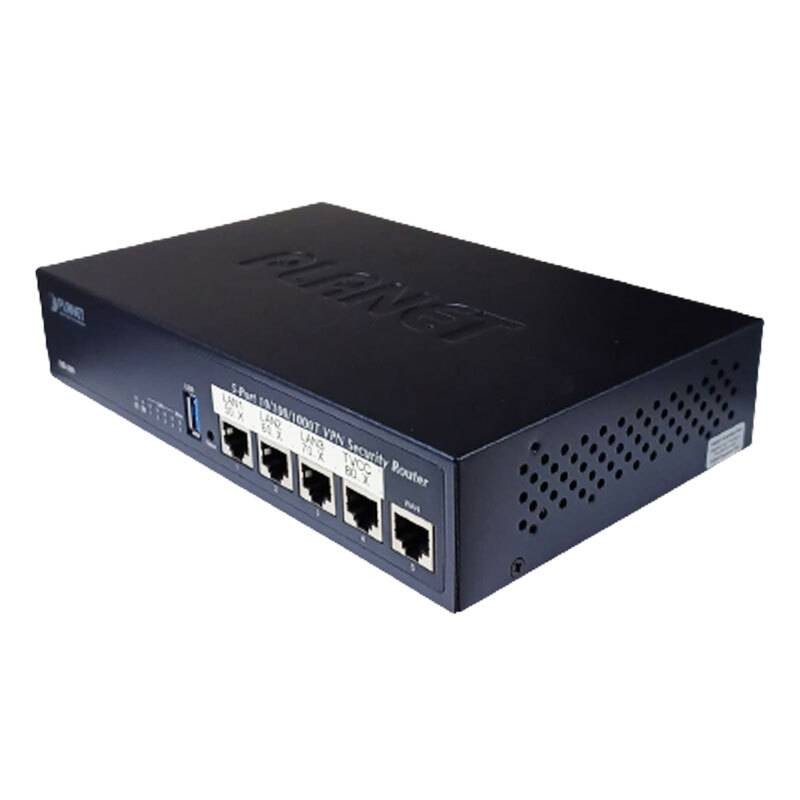

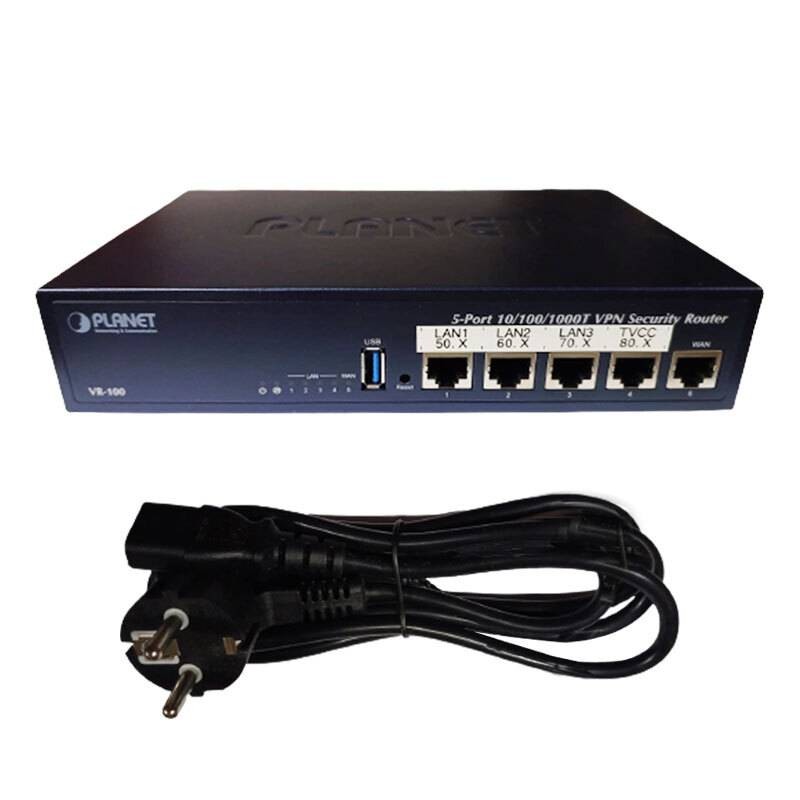

4power Firewall Preconfigured with 4 Lan Ports VR-100PRE
Firewall 4power preconfigured with 4 Lan Ports has been customized to simplify installation in complex networks that need separate and organized management.
For applications Lan software protections, Wireless Lan, Home Automation, Intrusion Detection, Tvcc..
4power Firewall Preconfigured with 4 Lan Ports VR-100PRE
Tax included
The customization consists of creating 4 different networks with corresponding IP addresses. The router manages communication between the networks while leaving them separate for the purpose of management and smooth operation particularly of the Video Surveillance and IP Telephony networks, which should always be kept separate from the corporate LAN.
LAN1:
- 192.168.50.1/24 with DHCP from 192.168.50.50 to 192.168.50.250 Assignable static IPs from 192.168.50.2 to 192.168.50.50.
LAN2:
- 192.168.60.1/24 with DHCP from 192.168.60.50 to 192.168.60.250 Assignable static IPs from 192.168.60.2 to 192.168.60.50
LAN3:
- 192.168.70.1/24 with DHCP 192.168.70.50 to 192.168.70.250 Assignable static IPs 192.168.70.2 to 192.168.70.50
CCTV:
192.168.80.1/24 with DHCP from 192.168.80.50 to 192.168.80.250 Assignable static IPs from 192.168.80.2 to 192.168.80.50.
The router has not undergone any changes to the original firmware but only a pre-configuration so in case of reset the pre-configuration will be lost and it will be necessary to request assistance to restore it.
Data sheet
- Type:
- Network Switch
- Doors:
- 4
